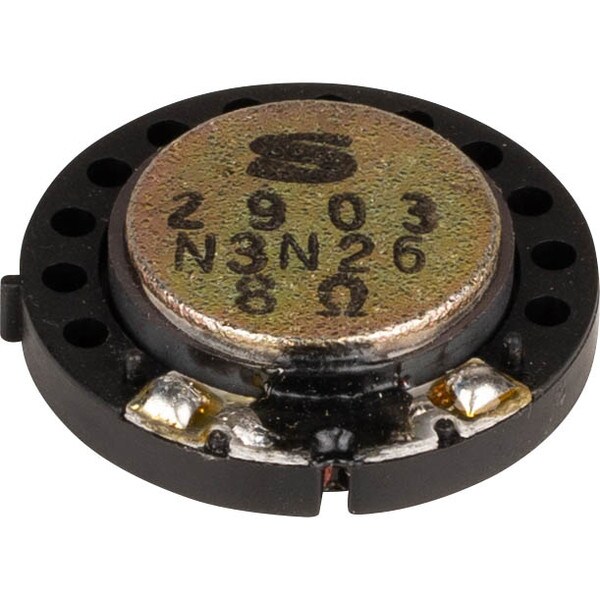

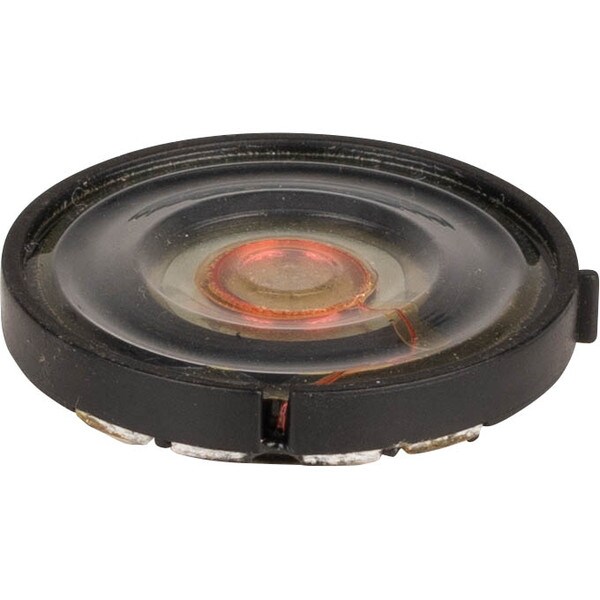

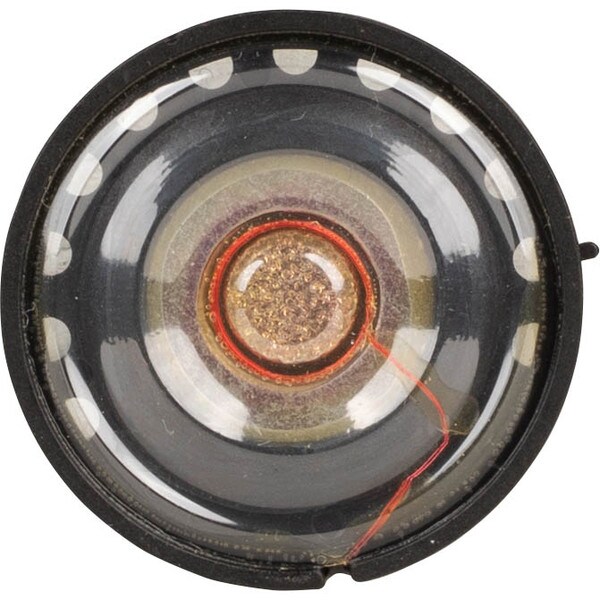

BUYOUT 29PB-038B 1.1" Mylar Cone Full-Range Mini Speaker 8 Ohms

Factory Buyouts
Part #299-4236

BUYOUT 29PB-038B 1.1" Mylar Cone Full-Range Mini Speaker 8 Ohms

Factory Buyouts
Part #299-4236
Model: 29PB-038B

The 29PB-038B 1.1" Mylar cone full-range mini speaker's compact size and lightweight diaphragm makes it a perfect replacement driver for small electronic devices, toys, and headphones.

Key Features
  • Ultra-lightweight Mylar diaphragm for high efficiency
  • Common size driver used in many audio enabled devices
BUYOUT $0.98
Bulk Pricing
Quantity:Qty: 1-29 $0.98/ea
Quantity:Qty: 30-59 $0.87/ea
Quantity:Qty: 60+$0.83/ea
Order in the next 4 hr 53 min to ship today. Details

19928In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

29PB-038B 1.1" Mylar Cone Full-Range Mini Speaker 8 Ohms

29PB-038B 1.1" Mylar cone full-range mini speaker's compact size and lightweight diaphragm makes it a perfect replacement driver for small electronic devices, toys, and headphones. The common sized 1.1" diameter frame, press-fit design, and 8 ohm impedance makes this driver a drop in replacement for many different audio enabled toys and other devices.

Product Details

BrandFactory Buyouts
Model29PB-038B
Part Number299-4236
UPC848864073637
Unit of MeasureEach
Weight0.01

Product Specifications

Nominal Diameter1"
Power Handling (RMS)0.1 Watts
Power Handling (MAX)0.2 Watts
Impedance8Ω
Frequency Response100 to 18,000Hz
Sensitivity77.5dB 2.83V/1m
Voice Coil Diameter0.25"

Thiele-Small Parameters

Resonant Frequency (Fs)600Hz
DC Resistance (Re)7.5Ω
Voice Coil Inductance (Le)0.04mH
Mechanical Q (Qms)8.28
Electromagnetic Q (Qes)13.67
Total Q (Qts)5.16
Compliance Equivalent Volume (Vas)0.00075ft³
Mechanical Compliance of Suspension (Cms)1.52mm/N
BL Product (BL)0.31T·m
Diaphragm Mass Inc. Airload (Mms)0.046g
Maximum Linear Excursion (Xmax)0.1mm
Surface Area of Cone (Sd)3.14cm²

Materials of Construction

Cone MaterialPoly / Mylar Diaphragm
Basket / Frame MaterialPolymer
Magnet MaterialCeramic Ferrite

Mounting Information

Overall Outside Diameter1.1"
Baffle Cutout Diameter1.1"
Depth0.25"
