  • 2 x 5W Bluetooth Digital Amp Board with Media Player and On Board 18650 Battery Holder

CLEARANCE 2 x 5W Bluetooth Digital Amp Board with Media Player and On Board 18650 Battery Holder

Parts Express
Part #320-6002

CLEARANCE 2 x 5W Bluetooth Digital Amp Board with Media Player and On Board 18650 Battery Holder

Parts Express
Part #320-6002
Play your music all day and through the night with this Bluetooth stereo amplifier board with built-in 18650 battery holder/charger. Wirelessly connect it with your smartphone or play stored music on a flash drive making it perfect for DIY portable audio projects.
Key Features
  • Onboard 18650 battery holder keeps the music playing longer (battery sold separately)
  • Built-in power switch and push button mode, play and volume switch
  • Built-in flash media player for music stored on thumb or micro SD flash drives for convenience
  • Micro USB port for power/charging for continuous play
CLEARANCE $6.59
MSRP: $10.98
Save $4.39 (40%)
Bulk Pricing
Ships next business day. Details

208In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

2 x 5W Bluetooth Digital Amp Board with Media Player and On Board 18650 Battery Holder

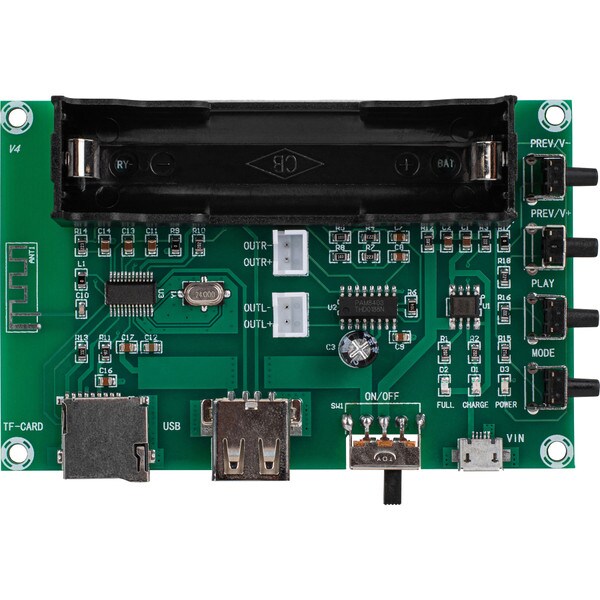

Build your own long playing Bluetooth portable speaker or amplifier with this 2 x 5W amplifier board with 18650 battery holder. With the built-in pushbutton switches and the flash drives control hours of music with or without a smartphone. The buttons control volume, previous and next song, pause/play, and mode. To play wirelessly pull the flash drives out and sync to you phone using the Bluetooth name HW-BT.

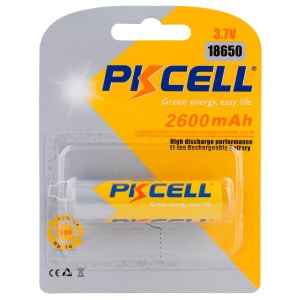

This amp board includes an 18650 Li-Ion battery holder that gives you the opportunity to enjoy portable music all day. Install at least a 2600mAh Li-Ion battery (sold separately) to get this long play time on one charge. To recharge the battery plug USB 5 VDC power into the micro USB port. The board plays even when charging the battery, but the charge time increases. The built-in power switch enables you to save the battery power when not in use.

Specification: • Bluetooth version: 4.0 • Two flash drive ports: 1 USB A and 1 micro SD/TF • Battery holder type: 18650 • Working voltage: 4-5V DC • Power/charging port: Micro USB • Channels: 2 • Maximum output power: 5W+5W • Amp chip: PAM8403 • Output impedance: 4-8 ohm • Board Size: 3.9" x 2.48" (99 x 63) • Total Dimensions: 4.1" W x 2.72" D x 0.98" H (102 x 69 x 25mm) • Board mounting hole spacing to center: 2.28" and 3.66" (58mm and 93mm).

Product Details

BrandParts Express
Part Number320-6002
UPC848864064970
Unit of MeasureEach
Weight0.1

Product Specifications

Board Type2 Channel Stereo Amp
Special FeaturesBluetooth
