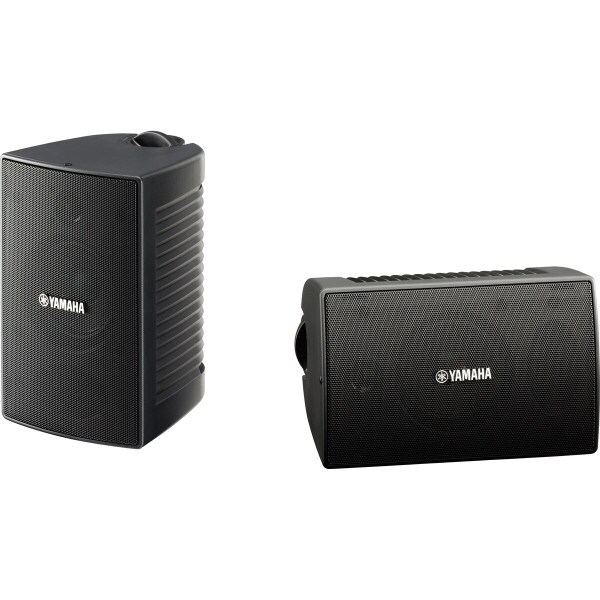

Yamaha NS-AW194 2-Way 4" All Weather Bass Reflex Speaker Pair Black

Yamaha
Part #312-020

Yamaha NS-AW194 2-Way 4" All Weather Bass Reflex Speaker Pair Black

Yamaha
Part #312-020

The Yamaha NS-AW194 are high-performance outdoor speakers designed to deliver exceptional sound quality in various environments. Featuring a 2-way bass-reflex design, these speakers combine durability with superior audio performance, making them suitable for both indoor and outdoor installations. Their weatherproof cabinets ensure reliable operation under diverse weather conditions.

Key Features
  • 2-way bass-reflex design for enhanced sound clarity
  • 4" waterproof cone woofer for accurate mid/low frequencies
  • 1" fluid-cooled balanced dome tweeter for crisp highs
  • Weatherproof cabinets that are drip, water, and UV resistant
  • Flexible installation with supplied mounting brackets
Your Price: $119.95
+ FREE SHIPPING
Bulk Pricing
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Yamaha NS-AW194 2-Way 4" All Weather Bass Reflex Speaker Pair Black

Yamaha NS-AW194 2-Way 4" All Weather Bass Reflex Speaker Pair

The Yamaha NS-AW194 speakers are engineered to provide outstanding audio performance in a compact form factor. They are easy to install in various locations, including home exteriors, patios, or indoor spaces. The 2-way bass-reflex design incorporates a 4" waterproof cone woofer that delivers accurate mid and low-frequency responses, ensuring rich and powerful bass reproduction. Complementing the woofer is a 1" fluid-cooled, coated balanced dome tweeter, which provides clear and detailed high-frequency sounds, resulting in a well-balanced audio experience. ​

Designed to withstand the elements, the NS-AW194 features weatherproof cabinets that are drip, water, and UV resistant, making them ideal for outdoor use. The powder-coated grilles offer additional protection against harsh weather conditions, ensuring longevity and consistent performance.

Installation is made convenient with the included mounting brackets, allowing for flexible placement options. The speakers can be mounted vertically or horizontally and adjusted within an 81° range to direct sound precisely where it's needed. The push-type speaker terminals facilitate easy and secure wiring connections.

The Yamaha NS-AW194 outdoor speakers combine advanced design with robust construction to deliver high-quality sound in any environment. Their versatility, durability, and superior audio performance make them an excellent choice for enhancing your outdoor or indoor audio experience.

Specifications

  • Color Finish Name: Black
  • Mounting Hardware Included: Yes
  • Number of Speakers: 2
  • Sold As: Pair
  • Type: 2-way bass-reflex
  • Woofers: 4" waterproof cone
  • Tweeter: 1" fluid-cooled, coated balanced dome
  • Frequency Response; 100 Hz–20 kHz
  • Nominal Input Power:30 W
  • Maximum Input Power: 80 W
  • Sensitivity: 85 dB/2.83 V/1 m
  • Impedance: 8 ohms
  • Dimensions (W x H x D): 6” x 9-5/8” x 6-3/4”
  • Weight: 2.9 lbs.; 1.3 kg/unit
  • I/O connectors: Push Terminal (Applicable Cable *Max, Twisted wire : 8mm²/ AWG 8)
  • Flying and mounting hardware: U-bracket (Movable angle: 81°) *degree pitch:13.5°
  • Waterproof: IPx3

Product Details

BrandYamaha
ModelNS-AW194BL
Part Number312-020
UPC086792958880
Unit of MeasurePairs
Weight8.2

Product Specifications

ColorBlack
Configuration2-way
Input Rating8 ohm
Woofer Diameter4"
Special FeaturesIndoor / Outdoor-Water Resistant
