BUYOUT YDT613-68 2-1/4" x 5" Paper Cone Full-Range Speaker 8 Ohm

Factory Buyouts
Part #289-2314

BUYOUT YDT613-68 2-1/4" x 5" Paper Cone Full-Range Speaker 8 Ohm

Factory Buyouts
Part #289-2314
Model: YDT613-68
The YDT613-68 8 ohm full-range replacement driver is an OEM replacement speaker for various Philips CRT televisions released in the late 1990's. The paper cone and voice coil former with foam surround ensure that this driver will produce smooth frequency response with minimal resonances.
Key Features
  • Paper cone and voice coil former with foam surround for minimal resonance
  • Ideal for small line array designs thanks to its low cost
  • Foam front gasket ensures good seal when rear mounted
  • Shielded magnet for use near sensitive electronic devices
BUYOUT $1.61
Bulk Pricing
Quantity:Qty: 1-9 $1.61/ea
Quantity:Qty: 10-49 $0.98/ea
Quantity:Qty: 50+$0.48/ea
Ships next business day. Details

572In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

YDT613-68 2-1/4" x 5" Paper Cone Full-Range Speaker 8 Ohm

We at Parts Express constantly hunt the globe for unique buyout opportunities so that we can provide our customers with the best products at the lowest cost. We are excited to offer this 2-1/4" x 5"speaker, which is part of a massive TV speaker factory buyout from Brazil.

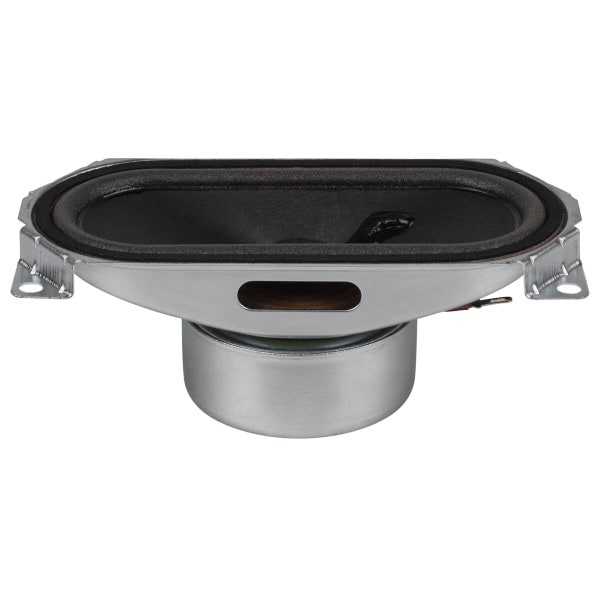

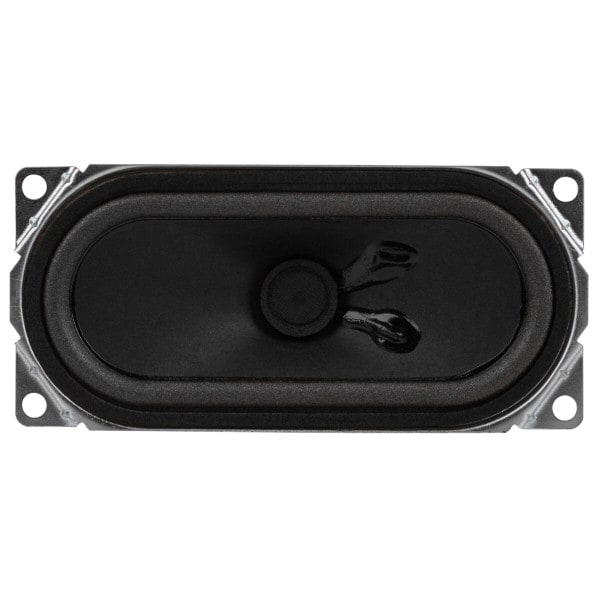

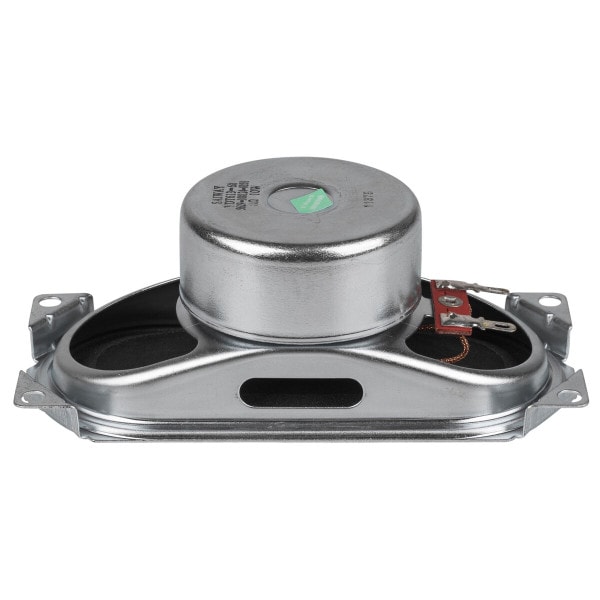

Originally found in a various Philips CRT TV's, this speaker features a rectangular design with a rigid stamped steel basket. On this driver, the mounting tabs sit 5/16" behind the mounting flange, but thanks to the front mounted foam gasket this driver could easily be installed on the back of your baffle. For improved power handling and lower power compression the voice coil is vented through the dust cap. In addition, the magnet is fully shielded allowing you to use this driver near any electronics that are sensitive to stray magnet fields.

Use these speakers in any low cost audio project whether it be a portable speaker, adding music to toys and models, or building an enormous line array for pennies. At such an economical price, these drivers won't last forever, quantities are limited.

Product Details

BrandFactory Buyouts
ModelYDT613-68
Part Number289-2314
UPC848864048789
Unit of MeasureEach
Weight0.55

Product Specifications

Nominal Diameter2-1/2 x 4"
Power Handling (RMS)10 Watts
Power Handling (MAX)15 Watts
Impedance8Ω
Frequency Response150 to 13,000Hz
Sensitivity83.7dB 2.83V/1m
Voice Coil Diameter0.6"

Thiele-Small Parameters

Resonant Frequency (Fs)170Hz
DC Resistance (Re)7.35Ω
Voice Coil Inductance (Le)0.48mH
Mechanical Q (Qms)3.99
Electromagnetic Q (Qes)2.68
Total Q (Qts)1.6
Compliance Equivalent Volume (Vas)0.027ft³
Mechanical Compliance of Suspension (Cms)0.47mm/N
Diaphragm Mass Inc. Airload (Mms)1.875g
Surface Area of Cone (Sd)34.21cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialFoam
Voice Coil FormerPaper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter2.25" x 5"
Baffle Cutout Diameter2" x 4.5"
Depth1.875"
# Mounting Holes4
