  • Wattgate 350i Ag HC Blue High Current Silver Plated IEC Power Connector 20A

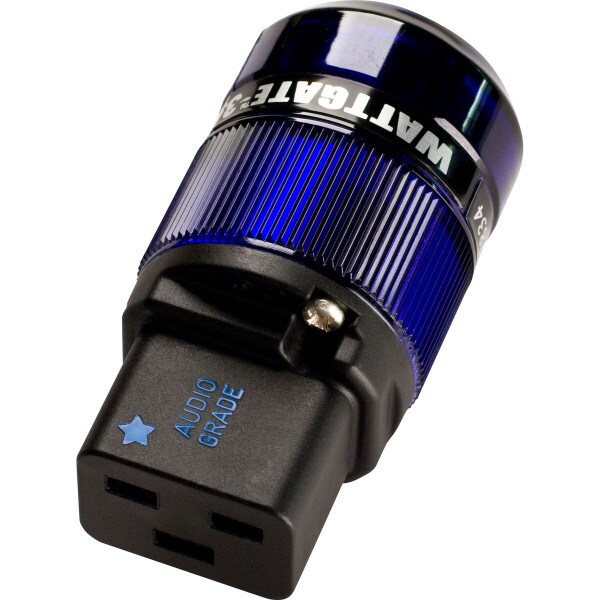

Wattgate 350i Ag HC Blue High Current Silver Plated IEC Power Connector 20A

1 Question, 2 Answers or
Wattgate
Part #110-429

Wattgate 350i Ag HC Blue High Current Silver Plated IEC Power Connector 20A

Wattgate
Part #110-429
Model: 350i AG HC BLUE
1 Question, 2 Answers or
WattGate's 350i Ag HC IEC plug is the answer for those seeking perfect power performance. Fast, simple installation and loss-less performance were the focus of the 350i's design.
Key Features
  • 20A rated
  • Perma-Lock™ terminals
  • Three step silver plating process
  • Superior performance over conventional plugs
Your Price: $117.98
+ FREE SHIPPING
MSRP: $177.99
Save $60.01 (34%)
Bulk Pricing
Quantity:Qty: 1-3 $117.98/ea
Quantity:Qty: 4+$112.17/ea
Order in the next 5 hr 24 min to ship today. Details

2In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Wattgate 350i Ag HC Blue High Current Silver Plated IEC Power Connector 20A

WattGate's 350i Ag HC IEC plug is the answer for those seeking perfect power performance. Fast, simple installation and loss-less performance were the focus of the 350i's design. Superior construction of the 350i Ag HC features an elegant polycarbonate rear housing in a cobalt blue with a glass filled nylon front housing. The removable insert can accommodate cable diameters from 0.300" (7.62 mm) to 0.655" (16.63 mm). Installation is simplified due to color coded, tightly-spaced, funnel shaped holes to guide the conductors into the unique Perma-Lock™ terminals. Perma-Lock™ terminals work in the following way: As the terminal screw tightens down on the contact tang, it compresses the wire underneath the tang, causing the screw to exert an upward lift of the collar overleaf. This lifting action "locks up" the threads screws. Stress on the terminals is virtually eliminated. Heat cycling and vibration cannot loosen the screw. The real secret behind the 350i Ag HC lies in the contact elements themselves. Super thick contact tangs are used along with a three-layer plating process: Oxygen free copper plating, electrolysis nickel, and finally silver plating dramatically improves conductivity and prevents corrosion. Plug is cryogenically treated, rated to 120 VAC, 20A, and accepts up to 10 gauge wire.

Product Details

BrandWattgate
Model350i AG HC BLUE
Part Number110-429
UPC844632055805
Unit of MeasureEach
Weight0.2801

Product Specifications

ConfigurationIEC C19
Current Rating20A
Power Connector TypeCable Mount
