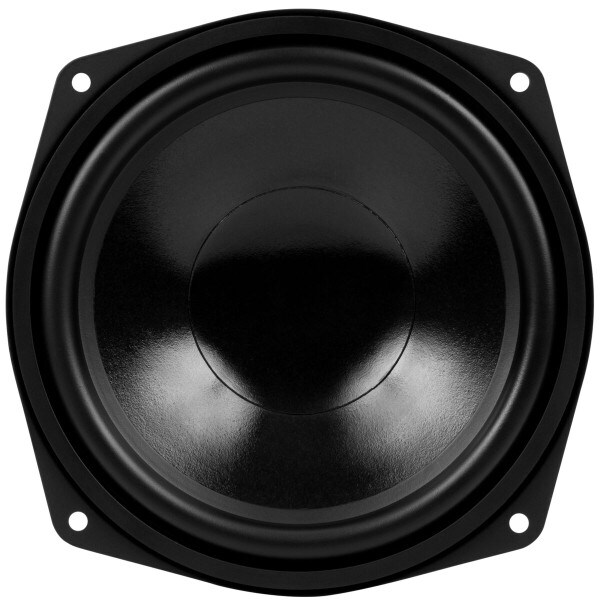

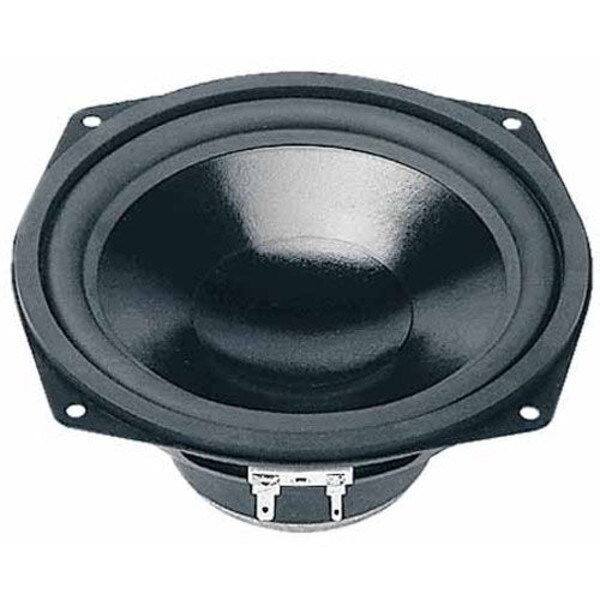

Visaton WS-17E 6.5" HiFi Woofer 8 Ohm

Visaton
Part #292-599

Visaton WS-17E 6.5" HiFi Woofer 8 Ohm

Visaton
Part #292-599
Model: WS-17E
With a coated-paper cone, elastic rubber surround, and inverse dust-cap, Visaton's HiFi WS-17E 6-1/2" woofer is well suited for use as a midbass or midrange in multi-way speakers, and even as a woofer in small bookshelf speakers.
Key Features
  • Treated-paper cone woofer with rubber surround
  • Thin pin-cushion frame doesn't require recessing
  • Well suited for use in sealed cabinets
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $28.28
MSRP: $36.99
Save $8.71 (24%)
Bulk Pricing
Quantity:Qty: 1-9 $28.28/ea
Quantity:Qty: 10-24 $27.43/ea
Quantity:Qty: 25+$26.26/ea
Ships next business day. Details

34In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton WS-17E 6.5" HiFi Woofer 8 Ohm

Choose the HiFi Visaton WS-17E 6-1/2" woofer for use in small 2 and 3-way speaker designs, as a midrange or midbass in large multi-way systems, or even as a small format personal computer subwoofer.

The rubber surround and treated paper cone resist fatigue and create a warm, natural sound that matches that of the golden age of audio in the 1970s. A low Fs allows this 6.5" speaker to play all the way down into the 40 Hz region, while its upper response extends out to 7,000 Hz.

Product Details

BrandVisaton
ModelWS-17E
Part Number292-599
Unit of MeasureEach
Weight2.14

Product Specifications

Nominal Diameter6-1/2"
Bolt Circle Diameter6.89
Power Handling (RMS)60 Watts
Power Handling (MAX)90 Watts
Impedance8Ω
Frequency Response41 to 7,000Hz
Sensitivity88dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)41Hz
DC Resistance (Re)6.3Ω
Voice Coil Inductance (Le)1.3mH
Mechanical Q (Qms)2.83
Electromagnetic Q (Qes)0.81
Total Q (Qts)0.63
Compliance Equivalent Volume (Vas)1.09ft³
Maximum Linear Excursion (Xmax)4.5mm
Surface Area of Cone (Sd)143cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialRubber
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter7.40" diagonally, 6.50"
Baffle Cutout Diameter5.83"
Depth2.95"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.6ft³
Sealed F356.8Hz
Vented Volume0.6ft³
Vented F349.9Hz
