  • Visaton SC 5.9 OM-4 2" x 3-1/2" Full-Range Driver 4 Ohm

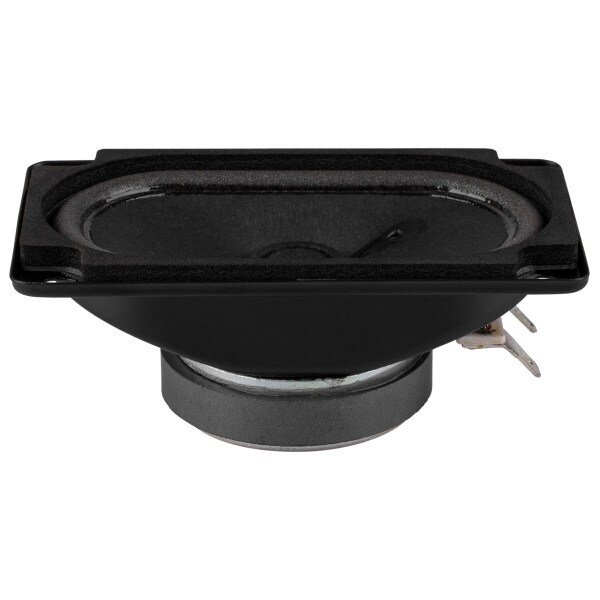

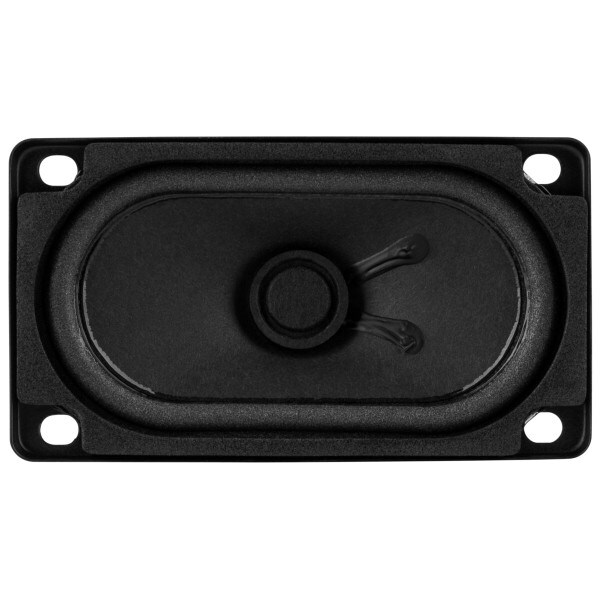

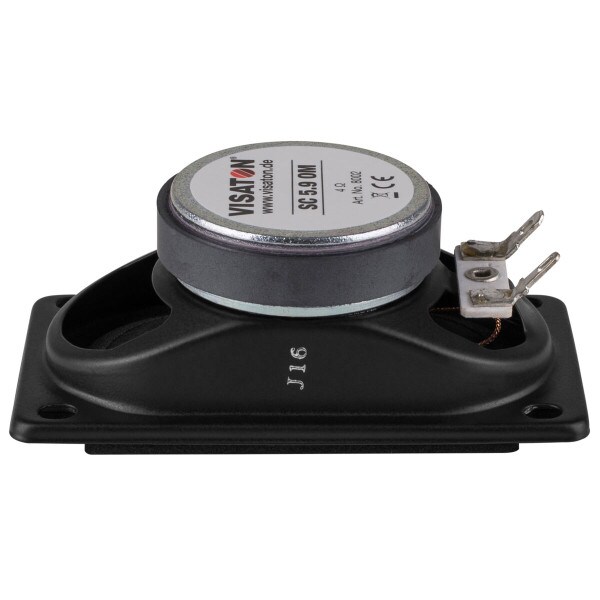

Visaton SC 5.9 OM-4 2" x 3-1/2" Full-Range Driver 4 Ohm

Visaton
Part #292-653

Visaton SC 5.9 OM-4 2" x 3-1/2" Full-Range Driver 4 Ohm

Visaton
Part #292-653
Model: SC 5.9 OM-4
Visaton's SC 5.9 OM driver is an economical 8 ohm full-range driver that features a narrow oval shape, ferrite motor, water resistant paper cone, front gasket, and steel frame.
Key Features
  • Water resistant paper cone with foam surround for linear frequency response
  • Rugged stamped steel frame with front mounted gasket
  • Common size used in many flat screen televisions
  • Flat mounting flange allows easy installation
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $9.43
MSRP: $12.99
Save $3.56 (27%)
Bulk Pricing
Quantity:Qty: 1-9 $9.43/ea
Quantity:Qty: 10-24 $9.15/ea
Quantity:Qty: 25+$8.76/ea
Ships next business day. Details

1713In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton SC 5.9 OM-4 2" x 3-1/2" Full-Range Driver 4 Ohm

Engineers, designers, and integrators will benefit from how effortlessly Visaton's SC 5.9 8 ohm full-range speaker fits into modern audio applications where small size requirements dictate speaker design.

The SC 5.9 features an oval design that maximizes cone area for high output, while fitting ino narrow spaces. A water resistant paper cone and foam surround combine to maintain efficiency without sacrificing frequency response.

Product Details

BrandVisaton
ModelSC 5.9 OM-4
Part Number292-653
Unit of MeasureEach
Weight0.3

Product Specifications

Nominal Diameter2-1/2 x 4"
Power Handling (RMS)10 Watts
Power Handling (MAX)15 Watts
Impedance4Ω
Frequency Response90 to 20,000Hz
Sensitivity84dB 2.83V/1m
Voice Coil Diameter0.55"

Thiele-Small Parameters

Resonant Frequency (Fs)170Hz
Maximum Linear Excursion (Xmax)0.5mm

Materials of Construction

Cone MaterialPaper
Surround MaterialFoam
Voice Coil Wire MaterialCopper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter3.56" x 1.98"
Baffle Cutout Diameter2.95" x 1.57"
Depth1.27"
# Mounting Holes4
