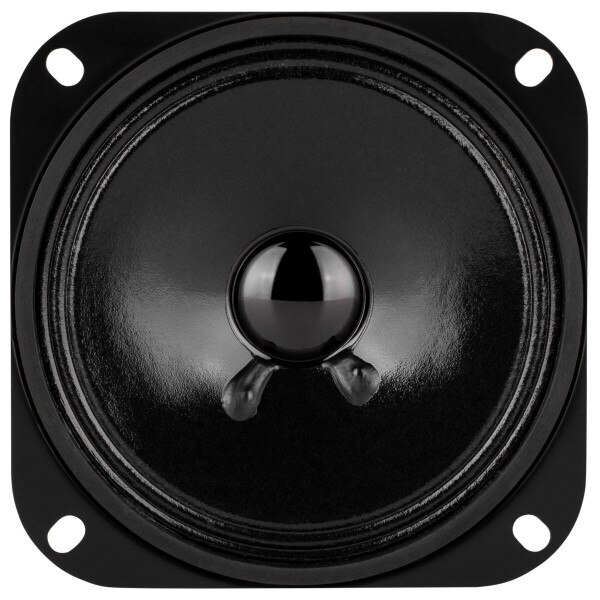

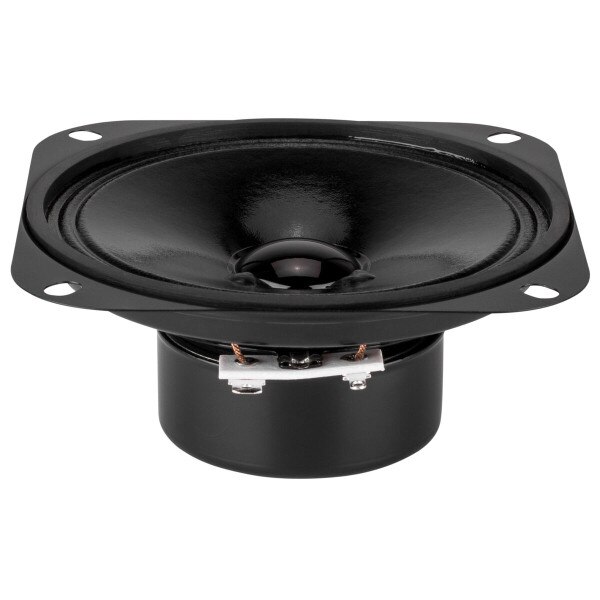

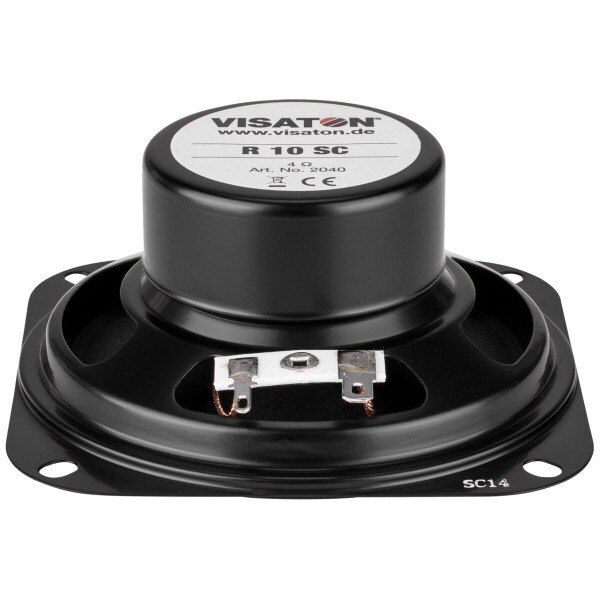

Visaton R10SC-4 4" Full-Range Speaker 4 Ohm

Visaton
Part #292-602

Visaton R10SC-4 4" Full-Range Speaker 4 Ohm

Visaton
Part #292-602
Model: R10SC-4

Visaton's R10SC-4 full-range, shielded, 4 ohm 4" speaker offers great frequency response and sensitivity in a compact package. Great for point-source applications with a limited amount of mounting depth space.

Key Features
  • Full range frequency response from 100 to 13,000 Hz
  • Thin mount profile with a mounting depth under 1-3/4"
  • High 90 dB sensitivity and shielded for use near sensitive electronics
  • 4 ohm impedance for efficiency and flexibility
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $11.71
MSRP: $15.99
Save $4.28 (27%)
Bulk Pricing
Quantity:Qty: 1-9 $11.71/ea
Quantity:Qty: 10-24 $11.36/ea
Quantity:Qty: 25+$10.87/ea
Order in the next 9 hr 58 min to ship today. Details

28In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton R10SC-4 4" Full-Range Speaker 4 Ohm

Designed or electronic devices, and to be used in the ceiling structures of rail cars and buses, Visaton's R10SC-4 full-range speaker has very linear response from 150 to 13,000 Hz. The slim design features a depth that is less than 1-3/4" for shallow mounting. The shielded design ensures safety when used near sensitive electronic components. IP54 rated for protection against dust and splashing water.

High sensitivity and good power handling combine for more output than many midrange drivers this size, while the paper cone and accordion surround create a more natural, classic sound that is pleasing to most peoples' ears. A square steel mounting plate eliminates the need for a baffle recess, while the mounting slots can accept a wider range of mounting diameters.

Product Details

BrandVisaton
ModelR10SC-4
Part Number292-602
Unit of MeasureEach
Weight0.6

Product Specifications

Nominal Diameter4"
Bolt Circle Diameter4.6
Power Handling (RMS)20 Watts
Power Handling (MAX)30 Watts
Impedance4Ω
Frequency Response100 to 13,000Hz
Sensitivity90dB 2.83V/1m
Voice Coil Diameter0.59"

Thiele-Small Parameters

Resonant Frequency (Fs)165Hz
DC Resistance (Re)3.6Ω
Voice Coil Inductance (Le)0.95mH
Mechanical Q (Qms)6.4
Electromagnetic Q (Qes)1.67
Total Q (Qts)1.32
Compliance Equivalent Volume (Vas)0.092ft³
BL Product (BL)2T·m
Diaphragm Mass Inc. Airload (Mms)1.9g
Maximum Linear Excursion (Xmax)1.5mm
Surface Area of Cone (Sd)56cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialTreated Paper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside DiameterAcross the flats 4.02"
Baffle Cutout Diameter3.66"
Depth1.73"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.1ft³
Sealed F3161.4Hz
