PAM8610 2 x 10W Class D Audio Amplifier Board

Parts Express
Part #320-604

PAM8610 2 x 10W Class D Audio Amplifier Board

Parts Express
Part #320-604
The PAM8610 20 watt Class-D audio amplifier features a DC volume control for high-quality sound reproduction.
Key Features
  • Pre-assembled and pre-tested for easy project integration
  • Class D efficiency and compact size
  • 2 x 10W continuous power, adequate for most speakers
  • Built-in volume control, audio input, and power input
Your Price: $8.49
MSRP: $17.99
Save $9.50 (53%)
Bulk Pricing
Quantity:Qty: 1-9 $8.49/ea
Quantity:Qty: 10+$7.64/ea
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

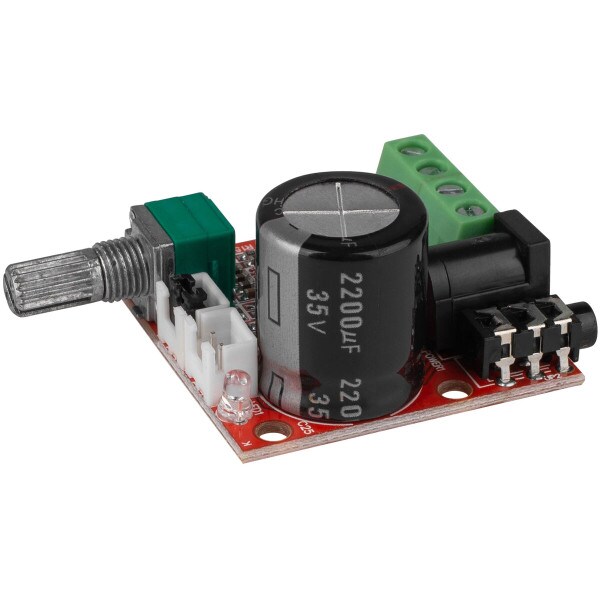

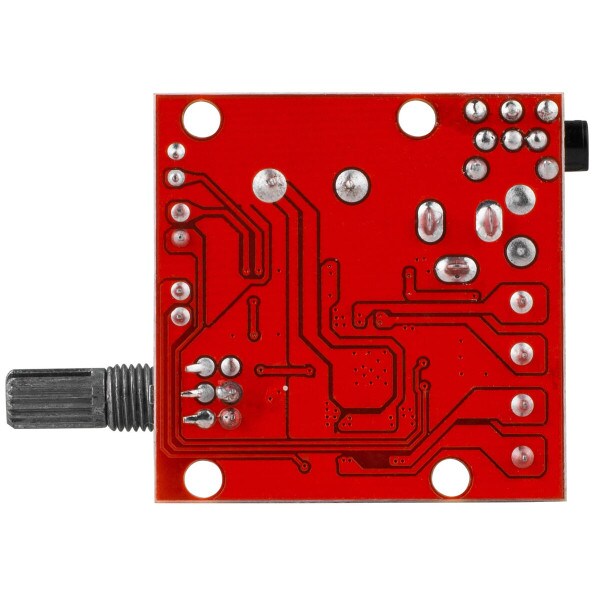

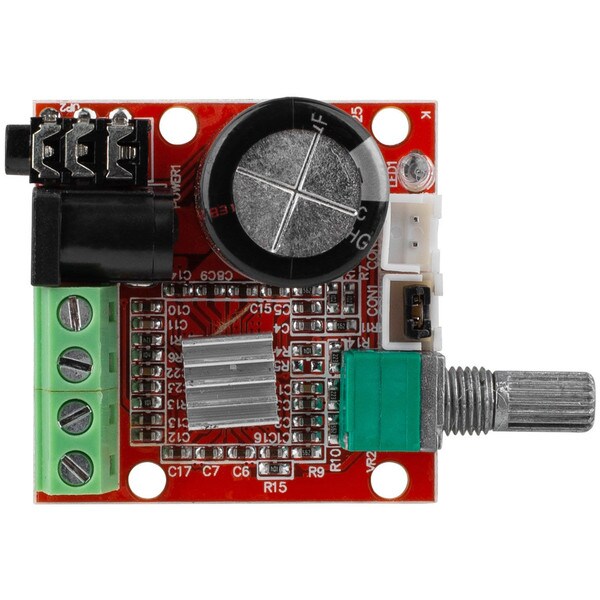

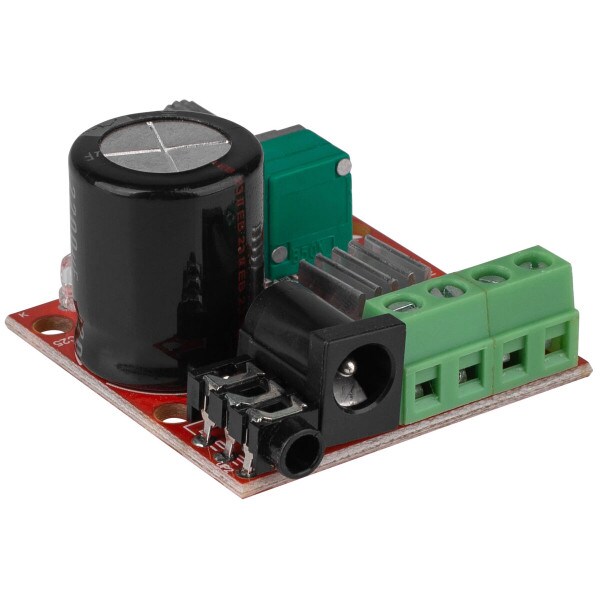

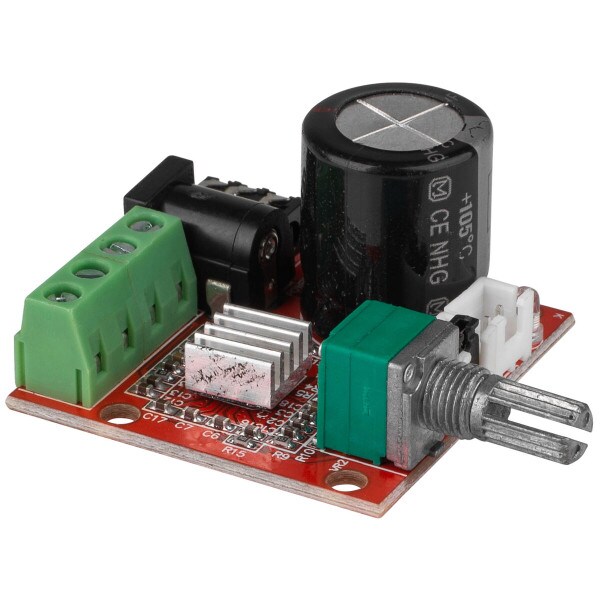

PAM8610 2 x 10W Class D Audio Amplifier Board

This board is designed around the PAM8610 integrated circuit, a 10W per channel Class D digital audio power amplifier. Class D amplification offers high power output in a miniature size. 90% efficiency ensures a high quality sound reproduction. Built-in potentiometer for volume control makes for quick and easy set up. Includes speaker wire leads that plug into board.

Perfect for projects, this board features over-current, thermal, and short circuit protection. It can be built into powered speakers or used as a standalone amplifier. The board's compact design is ideal for inclusion in OEM products or store displays.

Specifications: • Power output: 2 x 10 watts @ 8 ohms, 2 x 20 watts @ 4 ohms • Efficiency: 90% • Signal-to-noise ratio: 90 dB • Frequency response: 20 to 50,000 Hz • Signal input: 3.5 mm stereo jack • Signal output: 4 wires • Power requirements: 7-15 VDC • Quiescent current: 20 mA • Power input: 2.1 mm x 5.5 mm DC center positive jack • Dimensions: 1.57" x 1.26".

Product Details

BrandParts Express
Part Number320-604
UPC848864006130
Unit of MeasureEach
Weight0.05

Product Specifications

Board Type2 Channel Stereo Amp
Power (RMS/Channel 8 ohms)0 - 25 Watts
Special FeaturesVolume / Tone Control
