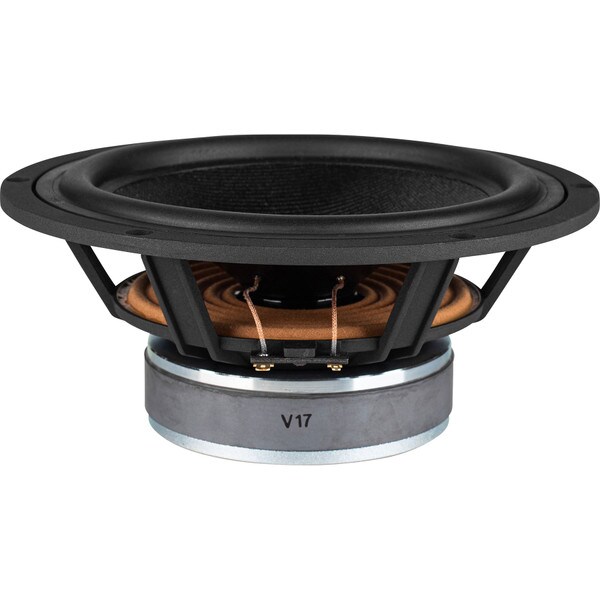

CLEARANCE Visaton GF 200 8" DVC Woofer 4 Ohm

Visaton
Part #292-666

CLEARANCE Visaton GF 200 8" DVC Woofer 4 Ohm

Visaton
Part #292-666
Model: GF200
Visaton's GF200 8" woofer features dual 4 ohm voice coils for use in a variety of applications. With smooth response and high excursion capabilities, this diver works great for both woofer and subwoofer duties. The rigid fiberglass cone ensures linear excursion while providing smooth response.
Key Features

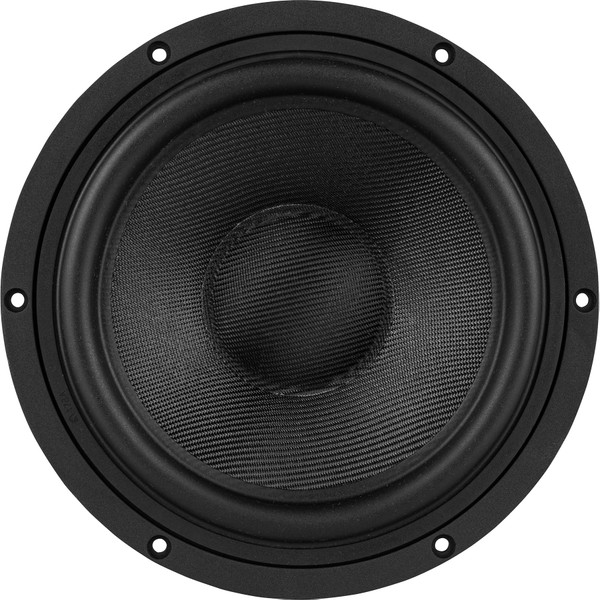

  • Rigid fiberglass cone and dust cap looks great and has excellent damping characteristics
  • Dual 4 ohm voice coils allow multiple wiring configurations
  • Extensive voice coil venting improves power handling and lowers compression

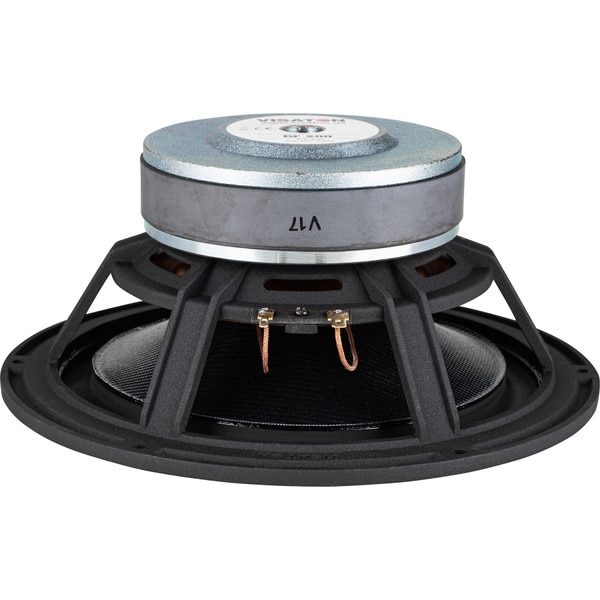

  • Cast aluminum frame provides a solid support for the motor and ample venting
CLEARANCE $158.23
+ FREE SHIPPING
MSRP: $205.99
Save $47.76 (23%)
Bulk Pricing
Quantity:Qty: 1-9 $158.23/ea
Quantity:Qty: 10-24 $153.51/ea
Quantity:Qty: 25+$146.93/ea
Ships next business day. Details

9In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton GF 200 8" DVC Woofer 4 Ohm

The versatile GF200 8" woofer from Visaton uses dual 4 ohm voice coils to give you multiple wiring configurations allowing this woofer to work in many different applications. With an Fs of 35 Hz and 10 mm Xmax, this driver works great as a subwoofer, however the low inductance and smooth response to over 5,000 Hz also makes it perfect for use as a woofer in 2 and 3-way designs. The rigid fiberglass cone supported by a rubber surround and large diameter flat spider minimizes unwanted resonances and keeps excursion linear for extremely low distortion. The voice coil can handle high power for extended periods of time, thanks to ample venting through the cast aluminum basket and motor.

Product Details

BrandVisaton
ModelGF200
Part Number292-666
Unit of MeasureEach
Weight5.65

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter8.27
Power Handling (RMS)120 Watts
Power Handling (MAX)180 Watts
Impedance8Ω
Frequency Response25 to 8,000Hz
Sensitivity88dB 2.83V/1m
Voice Coil Diameter1.49"

Thiele-Small Parameters

Resonant Frequency (Fs)35Hz
DC Resistance (Re)1.4Ω
Voice Coil Inductance (Le)0.3mH
Mechanical Q (Qms)4.33
Electromagnetic Q (Qes)0.44
Total Q (Qts)0.39
Compliance Equivalent Volume (Vas)2.01ft³
Mechanical Compliance of Suspension (Cms)0.876mm/N
BL Product (BL)4.6T·m
Diaphragm Mass Inc. Airload (Mms)25g
Maximum Linear Excursion (Xmax)10mm
Surface Area of Cone (Sd)214cm²

Materials of Construction

Cone MaterialFiberglass
Surround MaterialRubber
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter8.74"
Baffle Cutout Diameter7.44"
Depth3.78"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.63ft³
Sealed F371.3Hz
Vented Volume1ft³
Vented F342Hz
