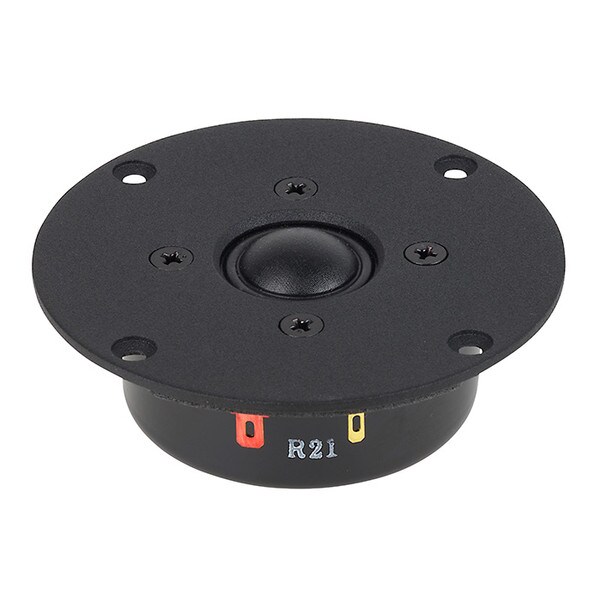

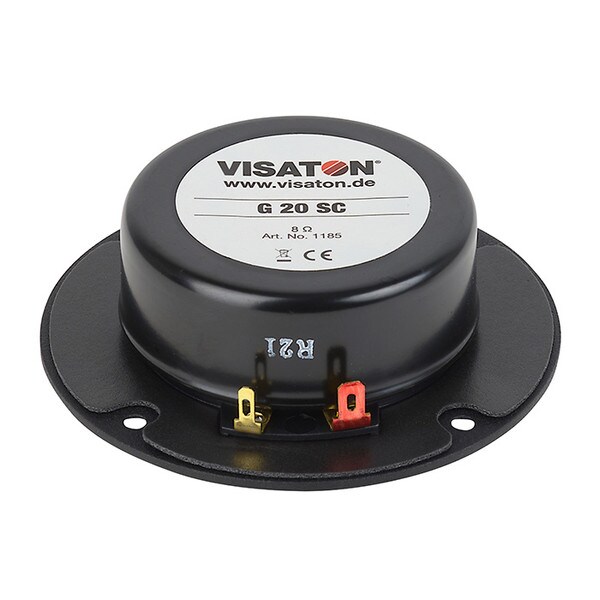

NEW Visaton G20SC8 0.8" Magnetically Shielded Textile Dome Tweeter 8 Ohm

Visaton
Part #292-7804

NEW Visaton G20SC8 0.8" Magnetically Shielded Textile Dome Tweeter 8 Ohm

Visaton
Part #292-7804
Model: GS 20 SC

The Visaton G 20 SC is a high-end 20 mm (0.8") textile dome tweeter designed for precise high-frequency reproduction above 3,000 Hz. Its optimized dome shape and damping felt on the pole piece ensure a balanced frequency response without resonance, providing excellent omnidirectional sound distribution. The magnetically shielded design allows for integration near video equipment without interference. The powerful magnet drive and ferrofluid-cooled voice coil contribute to high efficiency and substantial power handling, making it suitable for high-fidelity audio applications.

Key Features
  • Frequency response from 1,200 to 30,000 Hz for extended high-frequency reproduction
  • Resonance frequency at 1,890 Hz contributing to clear high-frequency performance
  • Peak power handling of 140 W with a 12 dB/octave high-pass filter at 2,000 Hz for robust performance
  • Opening angle of 180° at 8,000 Hz for wide sound dispersion
  • Magnetically shielded design for safe integration near video equipment
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Similar items that may interest you:
See all items in Tweeters
NEW $59.98
Bulk Pricing
Quantity:Qty: 1-9 $59.98/ea
Quantity:Qty: 10+$56.98/ea

Back-Ordered

Estimated back in stock 4/11/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton G20SC8 0.8" Magnetically Shielded Textile Dome Tweeter 8 Ohm

The G 20 SC's design includes a 20 mm voice coil diameter and an effective piston area of 4 cm², contributing to its precise high-frequency reproduction. Its compact dimensions, with a cutout diameter of 66 mm, facilitate easy integration into various speaker systems. The tweeter's construction ensures durability and consistent performance, making it a reliable choice for both new builds and replacement applications in high-fidelity audio systems.

Technical Data

  • Nominal impedance: 8 Ohm
  • Frequency response: 1200-30000 Hz
  • Mean sound pressure level: 88 dB (1 W/1 m)
  • Opening angle: (-6 dB) 180°/8000 Hz
  • Resonance frequency fs: 1890 Hz
  • Magnetic induction: 1.3 T
  • Magnetic flux: 200 µWb
  • Height of front pole-plate: 2.5 mm
  • Voice coil diameter: 20 mm
  • Height of winding: 2 mm
  • Cutout diameter: 66 mm
  • Net weight: 0.39 kg
  • D.C. resistance Rdc: 4.8 Ohm
  • Mechanical Q factor Qms: 0.36
  • Electrical Q factor Qes: 1.34
  • Total Q factor Qts: 0.28
  • Effective piston area Sd: 4 cm²
  • Dynamically moved mass Mms: 0.15 g
  • Inductance of the voice coil L: 0.02 mH
  • Connections: 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
  • Peak power handling with high pass: 140 W (12 dB/Okt.; 2000 Hz)180 W (12 dB/Okt.; 4000 Hz)
  • Nominal power handling with high pass: 80 W (12 dB/Okt.; 2000 Hz)120 W (12 dB/Okt.; 4000 Hz)

Product Details

BrandVisaton
ModelGS 20 SC
Part Number292-7804
Unit of MeasureEach
Weight1.14

Product Specifications

Nominal Diameter1"
Power Handling (RMS)80 Watts
Power Handling (MAX)140 Watts
Impedance8Ω
Frequency Response1200-30000Hz
Sensitivity88dB 2.83V/1m
Voice Coil Diameter0.787"

Thiele-Small Parameters

Resonant Frequency (Fs)1890Hz
DC Resistance (Re)4.8Ω
Voice Coil Inductance (Le)0.02mH
Mechanical Q (Qms)0.36
Electromagnetic Q (Qes)1.34
Total Q (Qts)0.28
Diaphragm Mass Inc. Airload (Mms)0.15g
Surface Area of Cone (Sd)4cm²

Mounting Information

Depth1.063"
# Mounting Holes4
