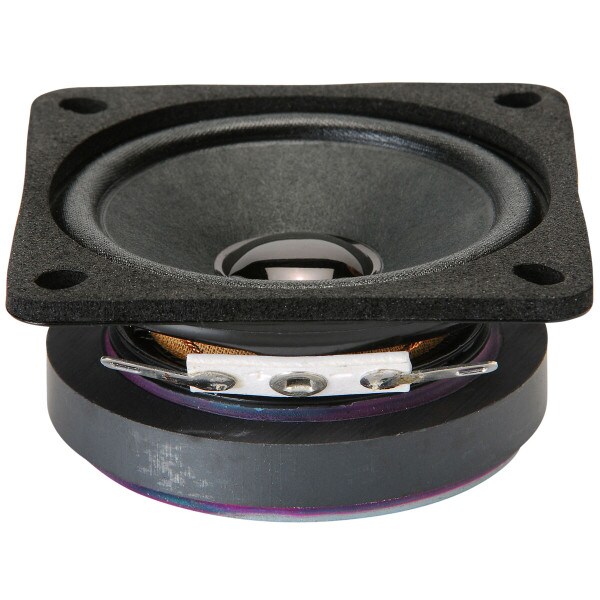

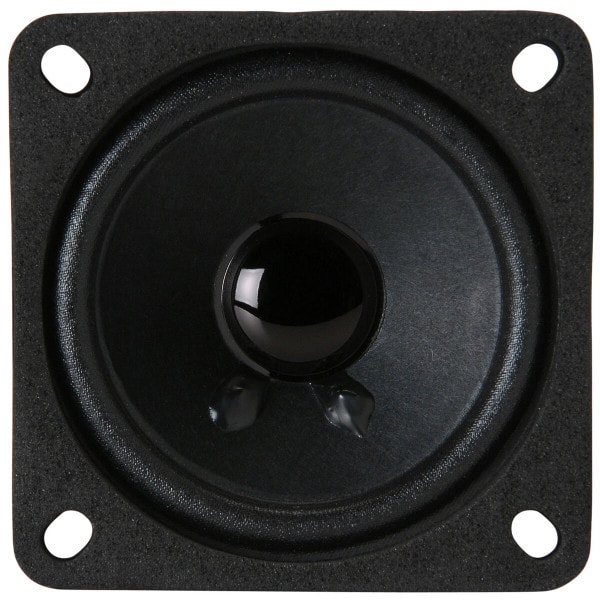

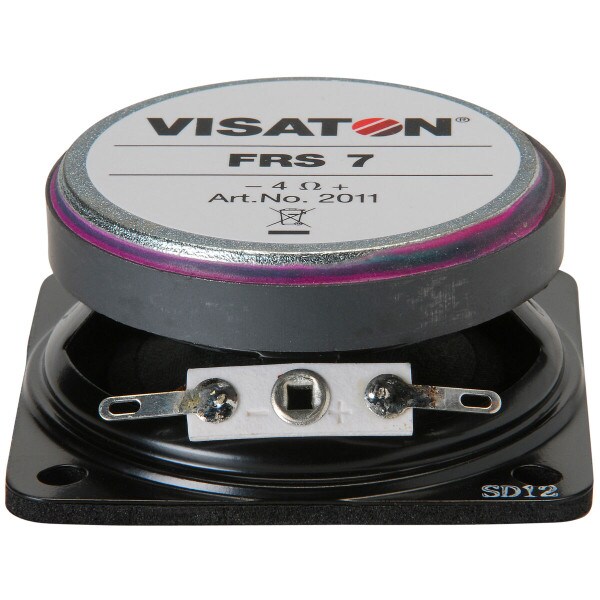

Visaton FRS7-4 2.5" Full-Range Speaker 4 Ohm

Visaton
Part #292-528

Visaton FRS7-4 2.5" Full-Range Speaker 4 Ohm

Visaton
Part #292-528
Model: FRS7 - 4

Designed to fit the bill for a wide range of outdoor audio applications, Visaton's 2011 FRS7 2-1/2" full-range driver features a water resistant cone. 4 Ohm impedance.

Key Features
  • Useful for background music and constant voltage PA systems
  • 2.5", 4-ohm full-range speaker with linear response from 200 Hz to 20 kHz
  • Paper cone with foam surround
  • Water-resistant design
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $12.96
MSRP: $16.99
Save $4.03 (24%)
Bulk Pricing
Quantity:Qty: 1-9 $12.96/ea
Quantity:Qty: 10-24 $12.39/ea
Quantity:Qty: 25+$12.04/ea
Ships next business day. Details

226In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton FRS7-4 2.5" Full-Range Speaker 4 Ohm

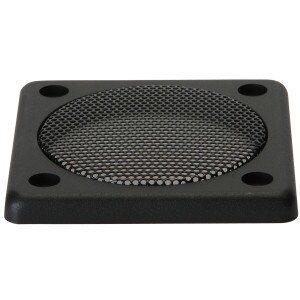

Visaton's 2011 FRS7 2.5", 4 ohm full-range driver features a water resistant cone and is suitable as a midrange driver in three-way speakers, wide-band use in background and constant-voltage industrial PA speaker systems (transformer not included). The high output design is also great for use in applications where size restrictions exist. An optional grill is available in the Related Items section to provide additional protection.



Product Details

BrandVisaton
ModelFRS7 - 4
Part Number292-528
Unit of MeasureEach
Weight0.454

Product Specifications

Nominal Diameter2-1/2"
Power Handling (RMS)8 Watts
Power Handling (MAX)15 Watts
Impedance4Ω
Frequency Response200 to 20,000Hz
Sensitivity88dB 2.83V/1m
Voice Coil Diameter0.5"

Thiele-Small Parameters

Resonant Frequency (Fs)250Hz
DC Resistance (Re)3.6Ω
Voice Coil Inductance (Le)0.3mH
Mechanical Q (Qms)3.21
Electromagnetic Q (Qes)1.96
Total Q (Qts)1.22
Compliance Equivalent Volume (Vas)0.01ft³
Maximum Linear Excursion (Xmax)0.75mm

Materials of Construction

Cone MaterialTreated Paper

Mounting Information

Overall Outside Diameter2.62"
Baffle Cutout Diameter2.4"
Depth1.18"

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.02ft³
Sealed F3224.5Hz
Vented Volume0.02ft³
Vented F3175.4Hz
