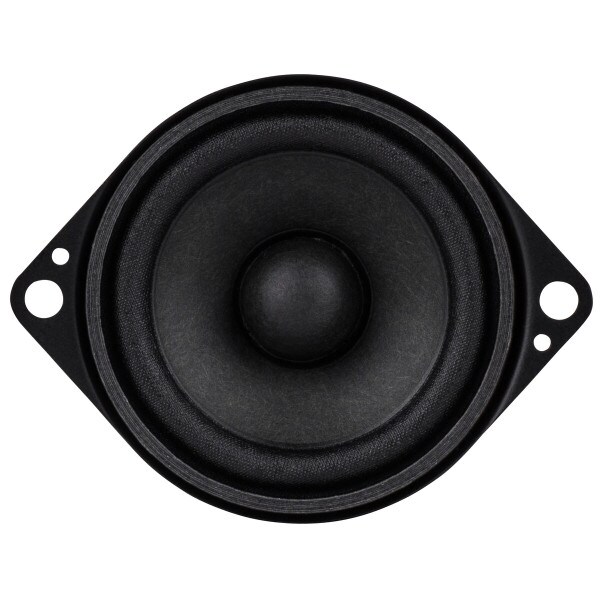

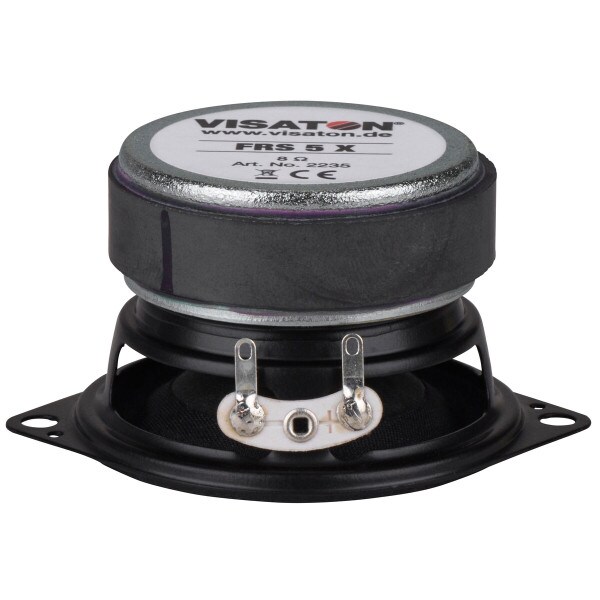

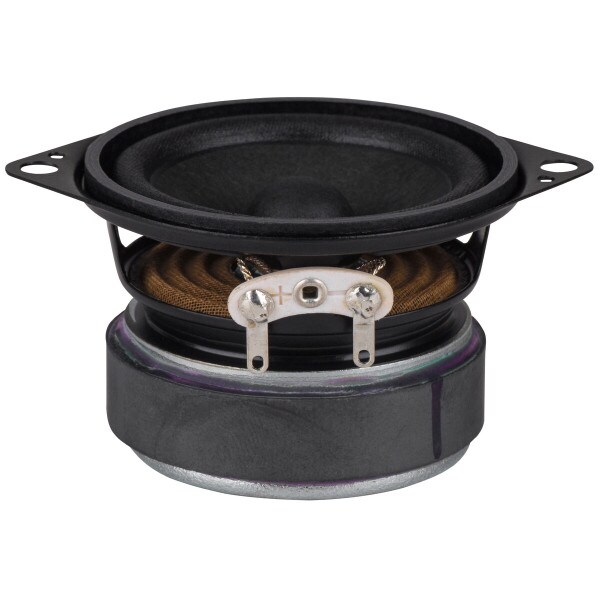

Visaton FRS 5X-8 2" Full Range Speaker 8 Ohm

Visaton
Part #292-640

Visaton FRS 5X-8 2" Full Range Speaker 8 Ohm

Visaton
Part #292-640
Model: FRS5X-8
The Visaton FRS 5X-8 2" full-range provides a surprisingly wide frequency response on and off axis to deliver space filling audio for a wide range of applications. Perfect for high output multiple driver arrays or even smaller applications such as portable speakers, projects, and models.
Key Features
  • Can produce a surprisingly full sound for a 2" driver
  • Moisture resistant paper cone for use in damp environments
  • More efficient than most full-range drivers this small
  • Smooth manageable response from 150 to 20,000 Hz
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $12.46
MSRP: $16.99
Save $4.53 (27%)
Bulk Pricing
Quantity:Qty: 1-9 $12.46/ea
Quantity:Qty: 10-24 $12.09/ea
Quantity:Qty: 25+$11.57/ea
Order in the next 1 hr 1 min to ship today. Details

163In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton FRS 5X-8 2" Full Range Speaker 8 Ohm

With a tiny footprint, but capable of delivering most of the audible spectrum, the Visaton FRS 5X-8 is the perfect choice when space is at a minimum. This 2" full-range is more efficient than most comparable drivers this size making it an excellent choice for portable Bluetooth speakers and compact sound bars. In addition, with a useful bandwidth of 150 to 20,000 Hz this driver will also work great when used in high output line arrays.

Product Details

BrandVisaton
ModelFRS5X-8
Part Number292-640
Unit of MeasureEach
Weight0.35

Product Specifications

Nominal Diameter2"
Bolt Circle Diameter2.36
Power Handling (RMS)5 Watts
Power Handling (MAX)8 Watts
Impedance8Ω
Frequency Response120 to 20,000Hz
Sensitivity86dB 2.83V/1m
Voice Coil Diameter0.5"

Thiele-Small Parameters

Resonant Frequency (Fs)190Hz
DC Resistance (Re)7.7Ω
Mechanical Q (Qms)3.49
Electromagnetic Q (Qes)0.88
Total Q (Qts)0.7
Compliance Equivalent Volume (Vas)0.00812ft³
Mechanical Compliance of Suspension (Cms)1mm/N
BL Product (BL)2.704T·m
Surface Area of Cone (Sd)12.5cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter2.05"
Baffle Cutout Diameter1.77"
Depth1.31"
# Mounting Holes2

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.015ft³
Sealed F3219.1Hz
Vented Volume0.015ft³
Vented F3151.2Hz
