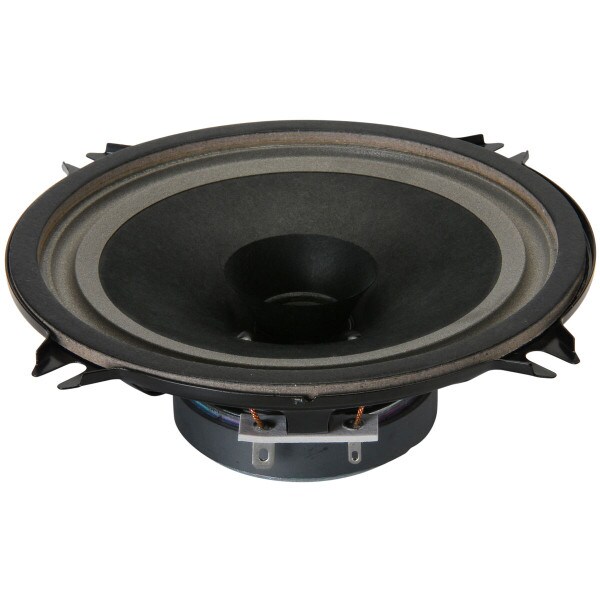

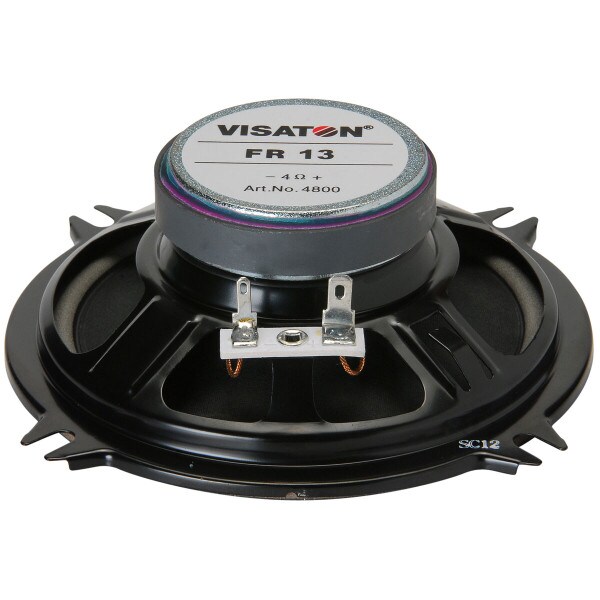

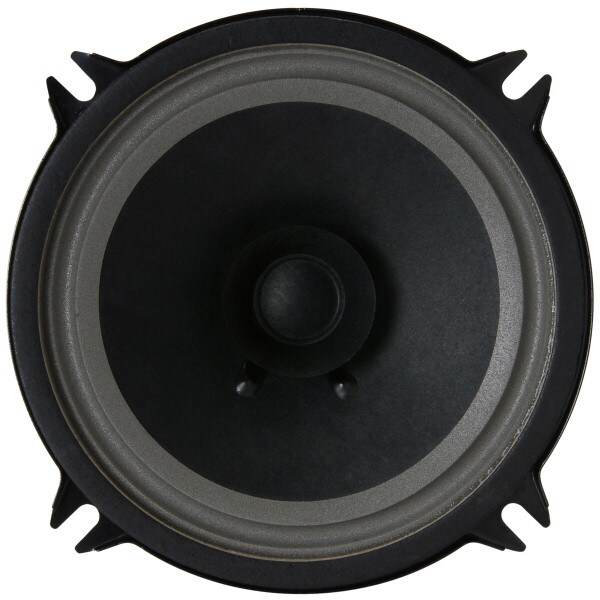

Visaton FR13-4 5" Full-Range Speaker 4 Ohm

Visaton
Part #292-518

Visaton FR13-4 5" Full-Range Speaker 4 Ohm

Visaton
Part #292-518
Model: FR13-4

Visaton's 4800 FR13 full-range 5" dual-cone speaker offers great frequency response and sensitivity in a compact package. Great for point-source, single-driver speakers. 4 ohm impedance.

Key Features
  • 65 to 20,000 Hz frequency response
  • Dual-cone design is naturally time-aligned
  • Perfect for car audio and open-baffle speakers
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $16.18
MSRP: $21.99
Save $5.81 (26%)
Bulk Pricing
Quantity:Qty: 1-9 $16.18/ea
Quantity:Qty: 10-24 $15.70/ea
Quantity:Qty: 25+$15.03/ea
Ships next business day. Details

22In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton FR13-4 5" Full-Range Speaker 4 Ohm

The 4800 FR13 full-range speaker from Visaton provides uniform frequency response and a surprising amount of low-frequency output. The 1.25 Qts motor is designed to offer decent bass response when used in infinite baffle applications, such as automotive car door speakers, overhead public transportation systems, and is perfect for use in open baffle speakers. The dual-cone design offers seamless time alignment when compared to multi-way speakers, and simple installation is enabled by four open mounting tangs.

Product Details

BrandVisaton
ModelFR13-4
Part Number292-518
Unit of MeasureEach
Weight0.7

Product Specifications

Nominal Diameter5"
Power Handling (RMS)25 Watts
Power Handling (MAX)50 Watts
Impedance4Ω
Frequency Response65-20,000Hz
Sensitivity88dB 2.83V/1m
Voice Coil Diameter0.78"

Thiele-Small Parameters

Resonant Frequency (Fs)100Hz
DC Resistance (Re)3.4Ω
Voice Coil Inductance (Le)0.2mH
Mechanical Q (Qms)5.17
Electromagnetic Q (Qes)1.64
Total Q (Qts)1.25
Compliance Equivalent Volume (Vas)0.22ft³
BL Product (BL)2.3T·m
Diaphragm Mass Inc. Airload (Mms)4.5g
Maximum Linear Excursion (Xmax)2.5mm
Surface Area of Cone (Sd)87cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialFoam
Voice Coil Wire MaterialCopper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter5.86" (mounting tabs), 5.07"
Baffle Cutout Diameter4.57"
Depth1.69"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.25ft³
Sealed F397.8Hz
