  • JSD VDT-4015 1/2" Mylar Dome Tweeter Pair 8 Ohms

BUYOUT JSD VDT-4015 1/2" Mylar Dome Tweeter Pair 8 Ohms

Factory Buyouts
Part #299-4314

BUYOUT JSD VDT-4015 1/2" Mylar Dome Tweeter Pair 8 Ohms

Factory Buyouts
Part #299-4314
Model: VDT4015

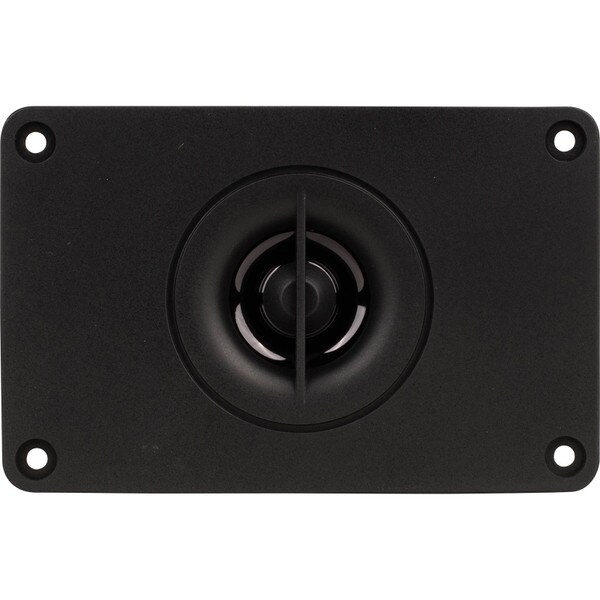

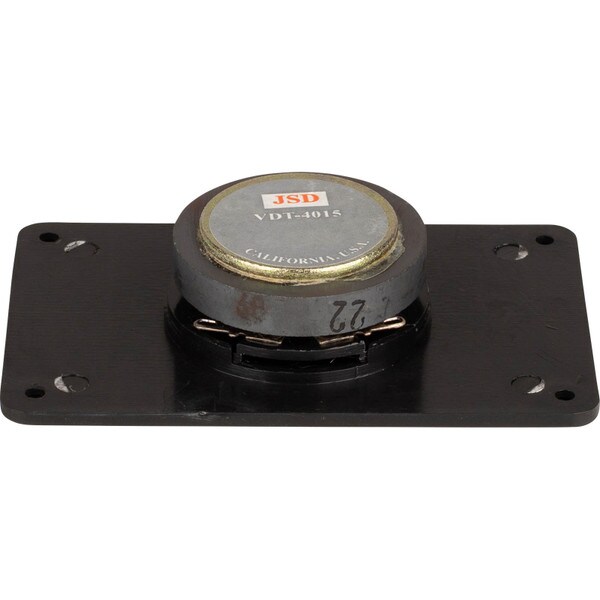

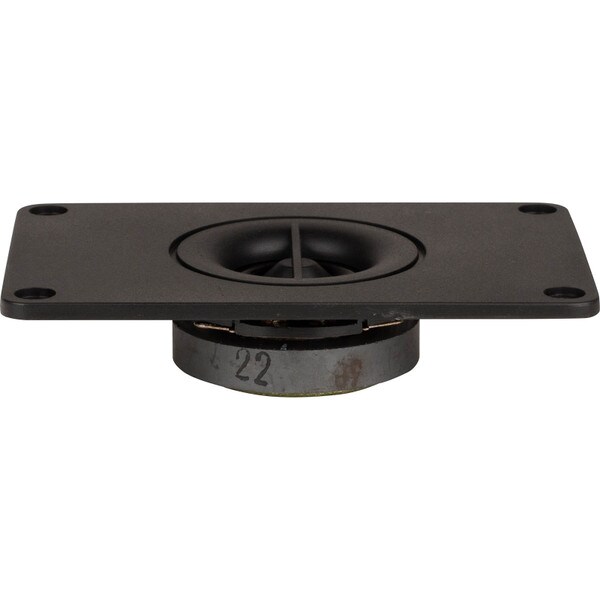

With a 1/2" dome and balanced drive design, the JSD VDT-4015 mylar diaphragm tweeter pair delivers smooth frequency response with impressive efficiency. These compact tweeters feature a durable mylar diaphragm and Ferrofluid cooled 1/2" voice coil. In addition, an optimized phase plug helps improve overall frequency response while protecting the dome from curious fingers. Sold in pairs.
Key Features
  • Mylar 1/2" dome and balanced drive diaphragm for high efficiency and natural response
  • Aluminum voice coil former and Ferrofluid cooling to allow high power handling
  • Large ferrite magnet assembly keeps precise control over the voice coil ensuring detailed response
BUYOUT $5.88
MSRP: $19.99
Save $14.11 (71%)
Bulk Pricing
Quantity:Qty: 1-29 $5.88/ea
Quantity:Qty: 30-59 $5.23/ea
Quantity:Qty: 60+$5.00/ea
Ships next business day. Details

1405In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

JSD VDT-4015 1/2" Mylar Dome Tweeter Pair 8 Ohms

The JSD VDT-4015 1/2" mylar dome tweeter pair is a great choice for custom 3-way or compact 2-way speaker designs. The balanced drive arrangement uses the suspension to increase the radiating surface area to achieve a lower resonant frequency (Fs) and higher overall efficiency. The 1/2" Ferrofluid cooled voice coil is wound on an aluminum former, ensuring excellent heat dissipation for high power handling with minimal power compression. An integrated phase plug improves overall frequency response while adding an extra layer of protection to the delicate dome.

Note: These tweeters are sold in pairs.

Product Details

BrandFactory Buyouts
ModelVDT4015
Part Number299-4314
UPC848864074023
Unit of MeasureEach
Weight0.25

Product Specifications

Cutout Diameter2
Tweeter TypePoly / Mylar Dome
Power Handling (RMS)30 Watts
Impedance
Frequency Response5,000 to 20,000Hz
Sensitivity89dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)3300Hz
DC Resistance (Re)7.4Ω
Voice Coil Inductance (Le)0.04mH

Mounting Information

Overall Outside Diameter4.125" x 2.75"
Depth0.875"
