TriTrix MTM TL Components Only Speaker Kit Pair

Parts Express
Part #300-700

TriTrix MTM TL Components Only Speaker Kit Pair

Parts Express
Part #300-700

Parts Express takes the TriTrix design one step further in the form of the Tritrix MTM TL Speaker Kit. In this package, all of the components you need to build a pair of the renowned TriTrix speakers are included, except cabinets.

Key Features
  • TriTrix DIY speaker building component kit
Similar items that may interest you:
See all items in Speaker & Subwoofer Kits
Your Price: $219.98
+ FREE SHIPPING
MSRP: $274.99
Save $55.01 (20%)
Bulk Pricing
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

TriTrix MTM TL Components Only Speaker Kit Pair

TriTrix MTM TL Speaker Kit Components Only Pair

For the audiophile who prefers the journey to the destination, this DIY speaker kit lets you craft high-fidelity sound from the ground up. The TriTrix MTM TL components provide everything you need to build a pair of 2-Way Transmission Line speakers—except the woodworking skills, that is.

The Drivers

The TriTrix MTM TL speaker kit is equipped with two Dayton Audio DC130BS-4 5-1/4" Classic Shielded Woofers and a 1" Dayton Audio DC28FS-8 Silk Dome Tweeter, arranged in an MTM configuration. This configuration, which stands for Midrange-Tweeter-Midrange, offers a myriad of benefits. By positioning the tweeter in between the two midrange drivers, it provides improved dispersion and off-axis response, resulting in a more spacious and accurate soundstage. The use of the Classic Shielded Woofers ensures enhanced bass reproduction with reduced electromagnetic interference from external equipment. With the TriTrix MTM TL speaker kit, you can enjoy a remarkable audio experience that captures the nuances of your favorite music with exceptional clarity and depth.

Assembled Speaker Specifications

  • Power Handling: 80 Watts RMS/160 Watts Max
  • Frequency Response: ±6 dB from 40-20,000 Hz
  • Impedance: 8 ohms
  • Sensitivity: 86 dB 1W/1m
  • Dimensions: 36" H x 7.5" W x 14.25" D

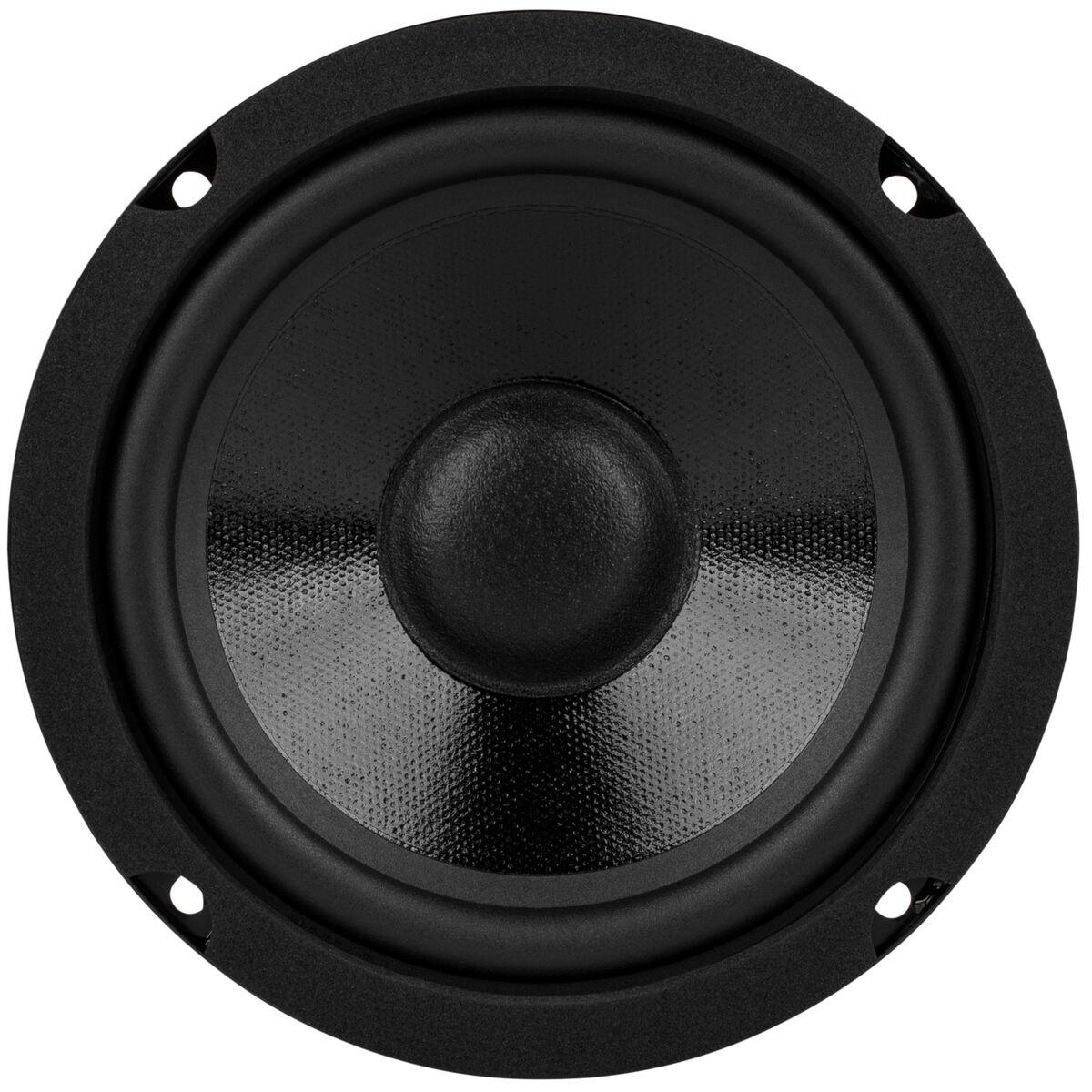

Woofer Specifications

  • Power handling: 30 Watts RMS/60 Watts Max
  • Frequency response: 55 to 4,000Hz
  • Impedance: 4 ohms
  • Le: 0.5 mH
  • Re: 3.55 ohms
  • Fs: 51.8 Hz
  • SPL: 91.6 dB 2.83V/1m
  • Vas: 0.46 ft³
  • Qms: 1.86
  • Qes: 0.44
  • Qts: 0.35
  • Xmax: 2.5 mm
  • Dimensions: Overall diameter: 5.71", Cutout: 4.72", Depth: 3.05"

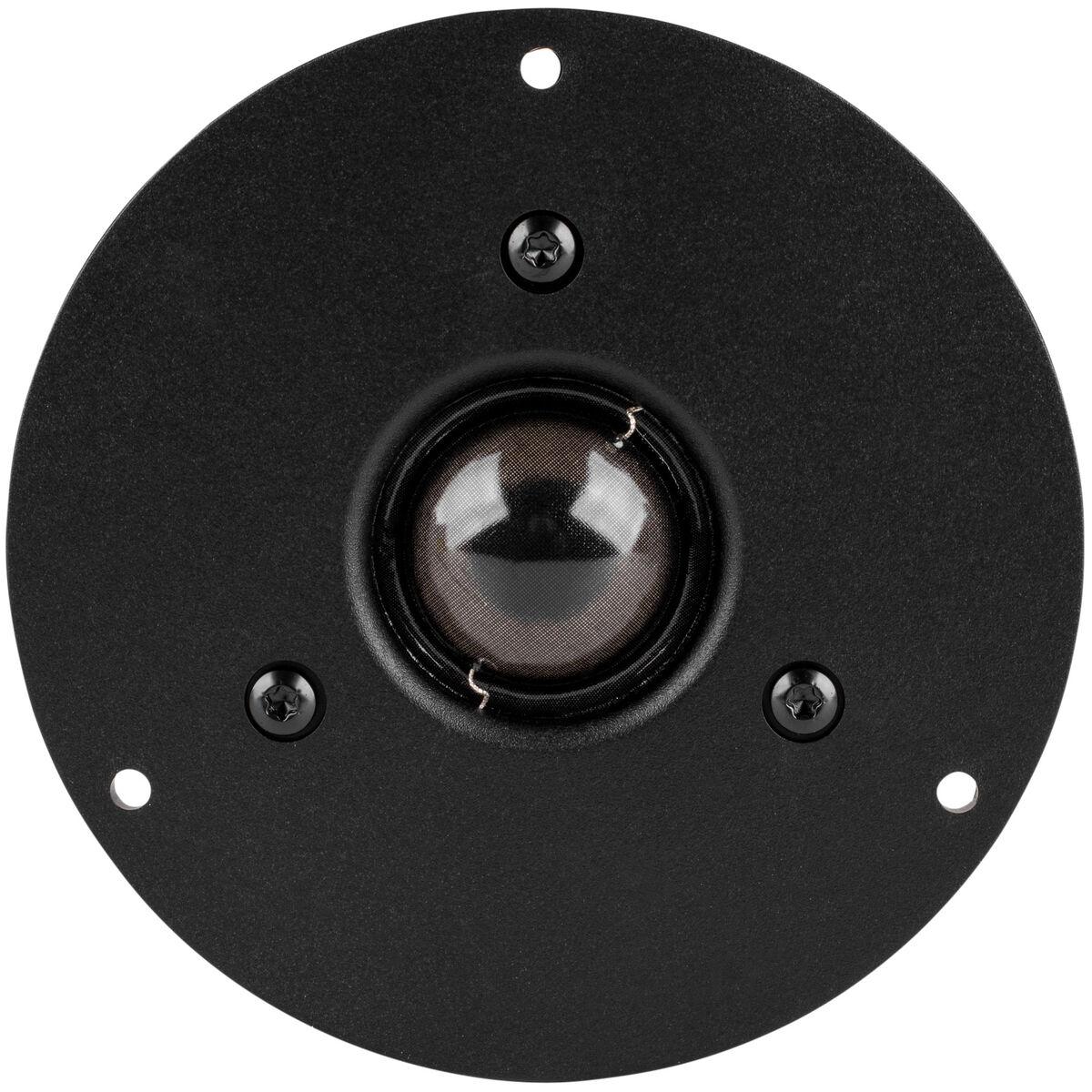

Tweeter Specifications

  • Power Handling: 20 Watts RMS/40 Watts Max
  • Voice coil diameter: 1"
  • Le: 0.04 H
  • Impedance: 4 ohms
  • Re: 3.2 ohms
  • Frequency Response: 2,500-20,000Hz
  • Fs: 1350Hz
  • SPL: 91dB 1W/1m
  • Dimensions: Overall diameter: 4.09", Cutout diameter: 2.875", Depth: 1.57"

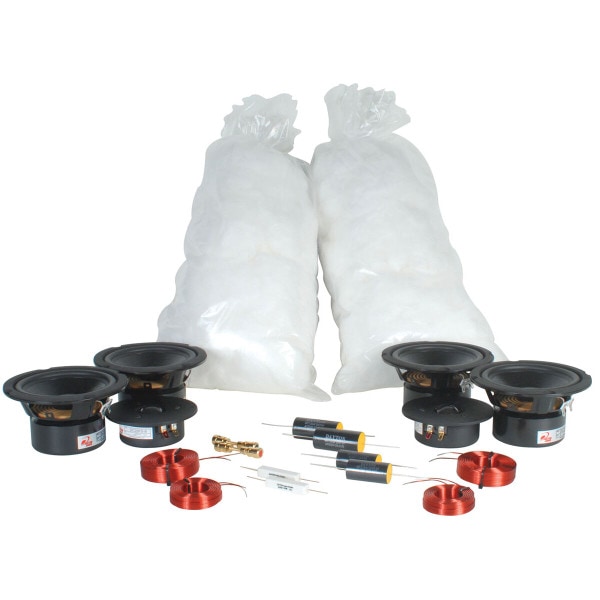

QTYPart NumberDescription
2275-075Dayton Audio DC28FS-8 Shielded Silk Dome Tweeters
4295-302Dayton Audio DC130BS-4 Classic Shielded Woofers
2257-818Dayton Audio LW18-60 0.60mH 18 AWG Perfect Layer Inductor
2257-836Dayton Audio LW182-5 2.5mH 18 AWG Perfect Layer Inductor
2004-2.4Dayton Audio DNR-2.4 2.4 Ohm 10W Precision Audio Grade Resiistor
2027-428Dayton Audio DMPC-10 10uF 250V Polypropylene Capacitor
2027-436Dayton Audio DMPC-20 20uF 250V Polypropylene Capacitor
2091-1154Dual-Ended Gold Terminal Pair
2260-317Acousta-Stuf Polyfill 1 lb. Bag
20ft101-780 Consolidated 16 AWG 2-conductor Power Speaker Wire

Product Details

BrandParts Express
Part Number300-700
UPC844632083099
Unit of MeasureEach
Weight12.85

Product Specifications

Cabinet OptionsWithout Cabinet
Configuration2-way MTM
Input Rating8 ohm
Speaker TypeFloor Standing
Woofer Diameter5.25"
