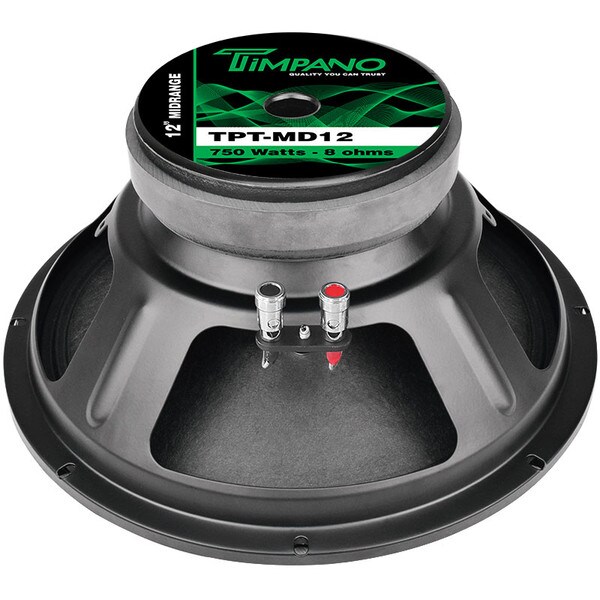

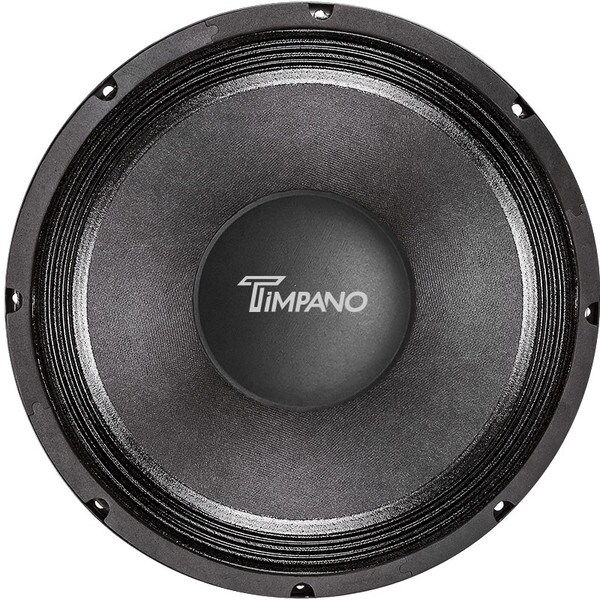

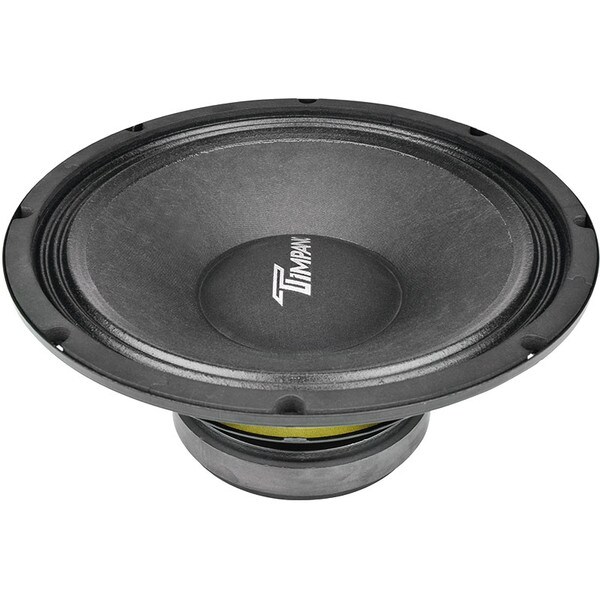

Timpano Audio TPT-MD12 12" Midrange Speaker 8 Ohm

Timpano Audio
Part #294-3328

Timpano Audio TPT-MD12 12" Midrange Speaker 8 Ohm

Timpano Audio
Part #294-3328
Model: TPT-MD12
Timpano Audio's TPT-MD12 12" midbass speaker is a great choice for adding some high output midbass to professional and automotive sound systems. With a large vented ferrite magnet and 2-1/2" voice coil, this driver is ideal for use in high output applications. Capable of handling a massive 375 watts RMS and with a sensitivity of 97 dB, the TPT-MD12 is designed to deliver continuous high SPL midbass output.
Key Features
  • Broad 55-5,000 Hz frequency range for ultimate flexibility
  • High 97 dB sensitivity for maximum output with minimal power
  • Large vented ferrite motor for increased output and power handling
  • 0.52 total Q for sealed or vented enclosures
Your Price: $59.95
MSRP: $74.94
Save $14.99 (20%)
Bulk Pricing
Order in the next 18 hr 2 min to ship today. Details

11In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Timpano Audio TPT-MD12 12" Midrange Speaker 8 Ohm

The TPT-MD12 12" midbass speaker from Timpano Audio is built like a professional midbass, but has been designed for use in the mobile audio market. With a naturally damped paper cone and cloth surround, this driver keeps resonances under control for natural response. The 2-1/2" voice coil and powerful magnet are designed to allow high sensitivity and increased power handling. Due to a Qts of 0.52, this will work perfectly in vented or sealed enclosures.

Product Details

BrandTimpano Audio
ModelTPT-MD12
Part Number294-3328
UPC611056238752
Unit of MeasureEach
Weight12

Product Specifications

Nominal Diameter12"
Power Handling (RMS)375 Watts
Power Handling (MAX)750 Watts
Impedance
Frequency Response55 to 5,000Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)48.2Hz
DC Resistance (Re)6.2Ω
Mechanical Q (Qms)14.6
Electromagnetic Q (Qes)0.54
Total Q (Qts)0.52
Compliance Equivalent Volume (Vas)3.74ft³
Mechanical Compliance of Suspension (Cms)0.25mm/N
BL Product (BL)12.4T·m
Diaphragm Mass Inc. Airload (Mms)43.8g
Surface Area of Cone (Sd)552cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.25ft³
Sealed F380.2Hz
Vented Volume2.5ft³
Vented F354.3Hz
