Timpano Audio TPT-DH175 1" Phenolic Horn Loaded Tweeter 8 Ohms

Timpano Audio
Part #294-3352

Timpano Audio TPT-DH175 1" Phenolic Horn Loaded Tweeter 8 Ohms

Timpano Audio
Part #294-3352
Model: TPT-DH175
Timpano Audio's TPT-DH175 phenolic horn loaded tweeter will deliver smooth response with enough output to fill the high frequency needs of high SPL sound systems. With a 45° x 45° dispersion patten this tweeter is perfect for filling a wide space with sound.
Key Features
  • 108 dB sensitivity for high output even with moderate power
  • Lightweight for easy installation in car doors and trunk lids
  • 45° x 45° dispersion pattern to fill any space with sound
  • Phenolic diaphragm produces natural response with minimal resonance
Your Price: $19.95
MSRP: $24.94
Save $4.99 (20%)
Bulk Pricing
Order in the next 1 hr 31 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Timpano Audio TPT-DH175 1" Phenolic Horn Loaded Tweeter 8 Ohms

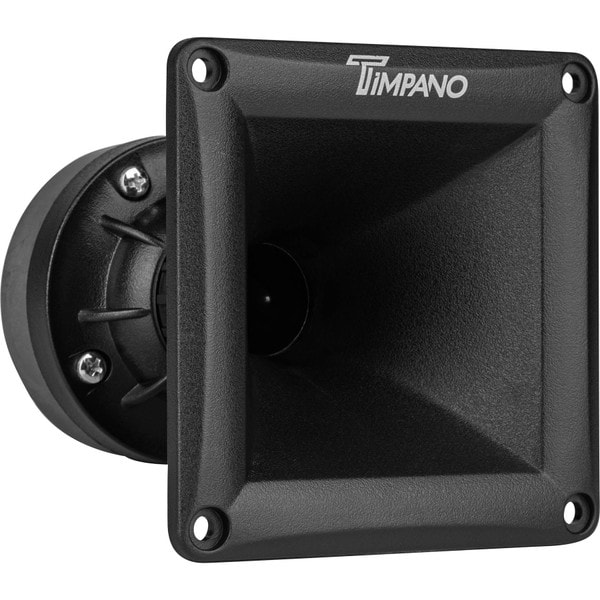

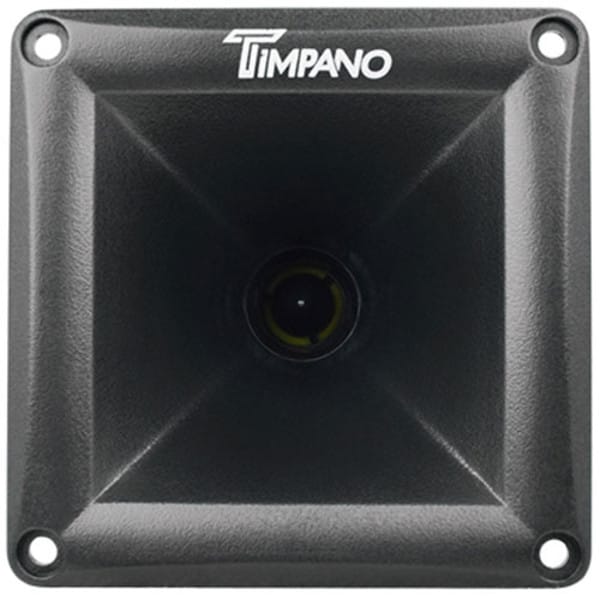

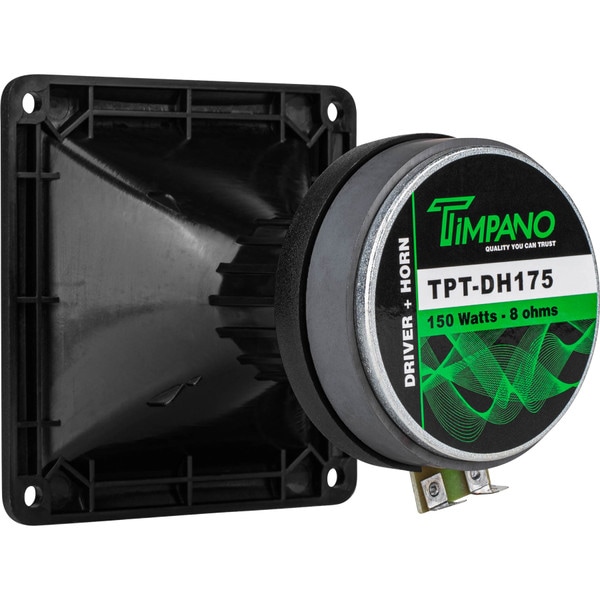

The TPT-DH175 horn loaded tweeter from Timpano Audio uses a naturally damped 1" phenolic diaphragm for natural response and detailed high frequencies. At only 4.5" x 4.5" this tweeter can easily be installed in tight space like car doors and trunk lids. The 45° x 45° dispersion patter gives the TPT-DH175 the ability to evenly fill open spaces. At 108 dB efficiency and with 75 watt RMS power handling this tweeter hat the output capability to keep up with high SPL systems.

Specifications: • Power handling: 75 watts RMS (crossover frequency 2,500 kHz, 12 dB/octave), 150 watts max • Impedance: 8 ohms • Useable range: 1,300-19,000 Hz • Dispersion: 45° H x 45° V • Recommended crossover: 2,500 Hz • SPL: 108 dB 2.83V/1m • Mfg. #: TPT-DH175 • Dimensions: 4.5" H x 4.5" W x 4.6" D • Cutout dimensions: 3.5" x 3.5".

Product Details

BrandTimpano Audio
ModelTPT-DH175
Part Number294-3352
UPC611056238745
Unit of MeasureEach
Weight2

Product Specifications

Diaphragm MaterialKapton / Polyimide
Power Handling (RMS)75 Watts
Impedance8Ω
