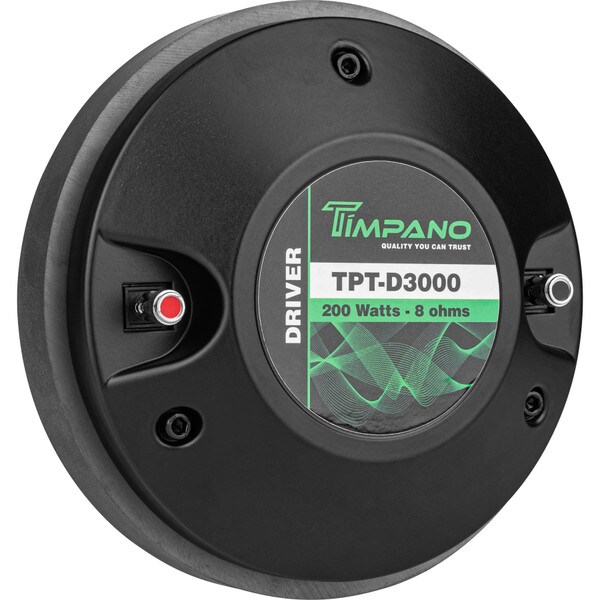

Timpano Audio TPT-D3000 2" Titanium Compression Horn Driver 4-Bolt

Timpano Audio
Part #294-3342

Timpano Audio TPT-D3000 2" Titanium Compression Horn Driver 4-Bolt

Timpano Audio
Part #294-3342
Model: TPT-D3000
Designed for keeping up with the highest SPL systems, Timpano Audio's TPT-D3000 2" exit compression driver is an incredible bargain. With a 3" titanium diaphragm this driver can handle up to 100 watts RMS, combined with 108 dB sensitivity ensures amazing output capability.
Key Features
  • 3" titanium diaphragm and voice coil to withstand peaks up to 200 watts
  • Massive ferrite motor for high efficiency and excellent heat dissipation
  • Accepts crossovers as low as 1,500 Hz for easy transition to midrange drivers

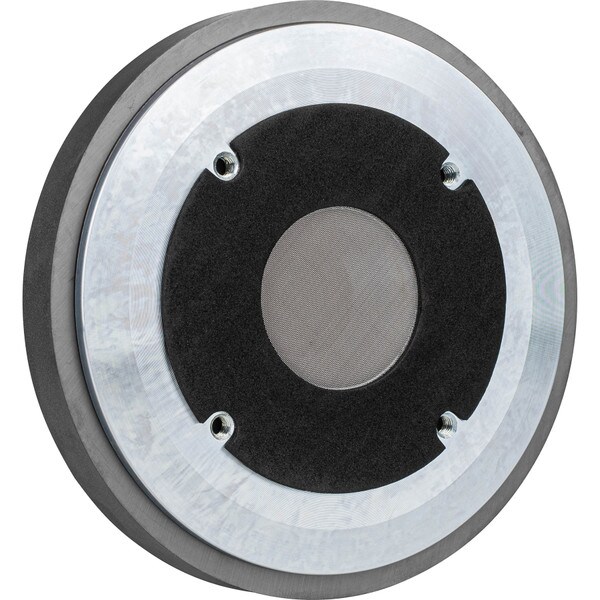

  • The 2" exit and 4-bolt mount make this driver compatible with many popular horns
Your Price: $59.95
MSRP: $74.94
Save $14.99 (20%)
Bulk Pricing
Order in the next 1 hr 23 min to ship today. Details

Only 3 In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Timpano Audio TPT-D3000 2" Titanium Compression Horn Driver 4-Bolt

Timpano Audio brings high output professional sound to the mobile audio market and the TPT-D3000 2" titanium compression driver is the epitome of high output. A 3" titanium diaphragm and massive ferrite magnet gives this driver the ability to deliver enough SPL to keep up with the loudest mobile sound systems. With a wide bandwidth of 1,500 to 15,000 Hz, the TPT-D3000 allows an easy transition to large midrange drivers and keeps crossovers points away from your ears most sensitive frequencies. For use with most popular horns the common 2" exit and 4-bolt mounting pattern is used. Spring loaded push button terminals holds speaker wires securely for a simple, worry free connection.

Specifications:• Power handling: 100 watts RMS/200 watts peak • Recommended crossover: 1,500 Hz (12 dB/octave) • VCdia: 3" • Diaphragm: Titanium • Impedance: 8 ohms • Frequency range: 1,500-20,000 Hz • Sensitivity: 108 dB • Mounting: Standard 4-bolt • Dimensions: 7" dia x 4" D • Weight: 9.5 lbs.

Product Details

BrandTimpano Audio
ModelTPT-D3000
Part Number294-3342
UPC611056238561
Unit of MeasureEach
Weight9.55

Product Specifications

Diaphragm MaterialTitanium
Exit Diameter2"
Mounting Type4-Bolt
Power Handling (RMS)100 Watts
Impedance8Ω
