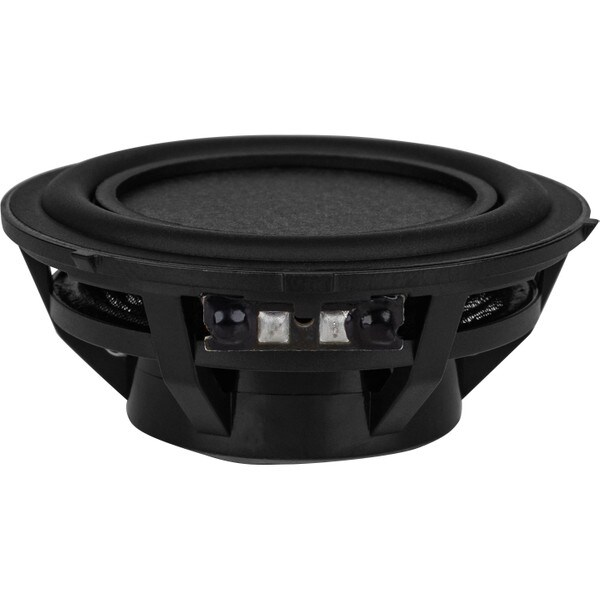

CLEARANCE Tectonic TEBM35C02-6B 1-3/4" BMR Full-Range Headphone Driver 6 Ohms

3 Questions, 8 Answers or
Tectonic
Part #297-2174

CLEARANCE Tectonic TEBM35C02-6B 1-3/4" BMR Full-Range Headphone Driver 6 Ohms

Tectonic
Part #297-2174
Model: TEBM35C02-6B
3 Questions, 8 Answers or
Tectonic's TEBM35C02-6/B 1-3/4" full-range BMR driver is an audio drive unit with an extended frequency response and extremely wide dispersion. It combines the benefits of Tectonic bending-wave technology and pistonic modes of operation for remarkably wide bandwidth with unmatched off-axis response.
Key Features
  • Ideal for use in off ear headphones for use in VR, gaming headsets, and helmets
  • Balanced Mode Radiation delivers unmatched off axis dispersion
  • Extended high frequency response to 35,000 Hz
  • High excursion allows excellent low frequency capability in near field applications
  • Shallow mounting depth for installation into almost any location
CLEARANCE $7.98
MSRP: $23.99
Save $16.01 (67%)
Bulk Pricing
Quantity:Qty: 1-3 $7.98/ea
Quantity:Qty: 4+$7.18/ea
Order in the next 4 hr 26 min to ship today. Details

1433In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Tectonic TEBM35C02-6B 1-3/4" BMR Full-Range Headphone Driver 6 Ohms

The compact TEBM35C02-6/B 1-3/4" full-range BMR driver from Tectonic is perfect for nearfield applications that require flat and extended response with extremely wide dispersion capability. Its unique capabilities make this driver perfect for open air headphones when physical contact with the ear must be avoided, such as VR systems, gaming headsets, call center headphones, helmets, and hardhats. The combination of pistonic and bending wave operation gives the TEBM35C02-6/B low distortion, extended bandwidth, and incredibly wide dispersion. In addition, this driver is also a great choice for use in extremely compact systems like computer speakers and ultra-compact portable Bluetooth systems.

Product Details

BrandTectonic
ModelTEBM35C02-6B
Part Number297-2174
UPC848864066899
Unit of MeasureEach
Weight0.05

Product Specifications

Nominal Diameter1"
Power Handling (RMS)2 Watts
Power Handling (MAX)4 Watts
Impedance6Ω
Frequency Response100 to 35,000Hz
Sensitivity78.4dB 2.83V/1m
Voice Coil Diameter0.8"

Thiele-Small Parameters

Resonant Frequency (Fs)156Hz
DC Resistance (Re)5.6Ω
Voice Coil Inductance (Le)0.09mH
Mechanical Q (Qms)4.37
Electromagnetic Q (Qes)1.19
Total Q (Qts)0.93
Compliance Equivalent Volume (Vas)0.0057ft³
Mechanical Compliance of Suspension (Cms)0.839mm/N
BL Product (BL)2.39T·m
Diaphragm Mass Inc. Airload (Mms)1.24g
Maximum Linear Excursion (Xmax)2.5mm
Surface Area of Cone (Sd)11.04cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Basket / Frame MaterialPolymer
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter1.92"
Baffle Cutout Diameter1.86"
Depth0.799"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.01ft³
Sealed F3154.5Hz
Vented Volume0.01ft³
Vented F3114.1Hz
