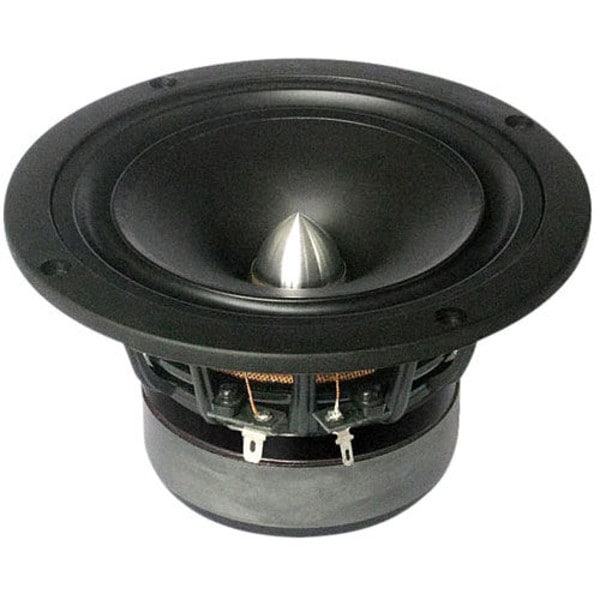

Tang Band W5-1611SAF 5" Full Range Speaker

Tang Band
Part #264-918

Tang Band W5-1611SAF 5" Full Range Speaker

Tang Band
Part #264-918
Model: W5-1611SAF
Versatility and fidelity are the Tang Band W5-1611SAF 5" speaker's chief attributes. It is small enough to offer articulation and great HF dispersion, but big enough to pack a punch.
Key Features
  • Underhung design for low distortion and quick transient response
  • Aluminum pole piece increases dispersion
  • Accurate, smooth frequency response
Your Price: $89.98
MSRP: $103.99
Save $14.01 (13%)
Bulk Pricing
Quantity:Qty: 1-3 $89.98/ea
Quantity:Qty: 4+$85.48/ea
Ships next business day. Details

50In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Tang Band W5-1611SAF 5" Full Range Speaker

The Tang Band W5-1611SAF 5" speaker has a fiberglass-reinforced nylon frame, black polypropylene cone, and wide temperature range/high-loss rubber surround. An underhung 1" voice coil provides linear travel and the aluminum pole piece phase plug improves dispersion. The W5-1611SAF's extremely smooth, extended frequency response makes it suitable for a variety of applications, including full-range point source loudspeaker systems, line arrays, and midrange duty.

Product Details

BrandTang Band
ModelW5-1611SAF
Part Number264-918
UPC844632092862
Unit of MeasureEach
Weight3.8

Product Specifications

Nominal Diameter5"
Power Handling (RMS)28 Watts
Power Handling (MAX)56 Watts
Impedance8Ω
Frequency Response60 to 20,000Hz
Sensitivity90dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)60Hz
DC Resistance (Re)6.3Ω
Voice Coil Inductance (Le)0.02mH
Mechanical Q (Qms)2.8
Electromagnetic Q (Qes)0.52
Total Q (Qts)0.44
Compliance Equivalent Volume (Vas)0.41ft³
Mechanical Compliance of Suspension (Cms)1.31mm/N
BL Product (BL)5.53T·m
Diaphragm Mass Inc. Airload (Mms)5.99g
Maximum Linear Excursion (Xmax)3mm
Surface Area of Cone (Sd)94cm²

Materials of Construction

Cone MaterialPoly
Surround MaterialRubber
Basket / Frame MaterialPolymer
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.18"
Baffle Cutout Diameter5.16"
Depth3.44"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.2ft³
Sealed F3108Hz
Vented Volume0.4ft³
Vented F358.8Hz
