Tang Band W5-1138SM 5-1/4" Neodymium Subwoofer

Tang Band
Part #264-831

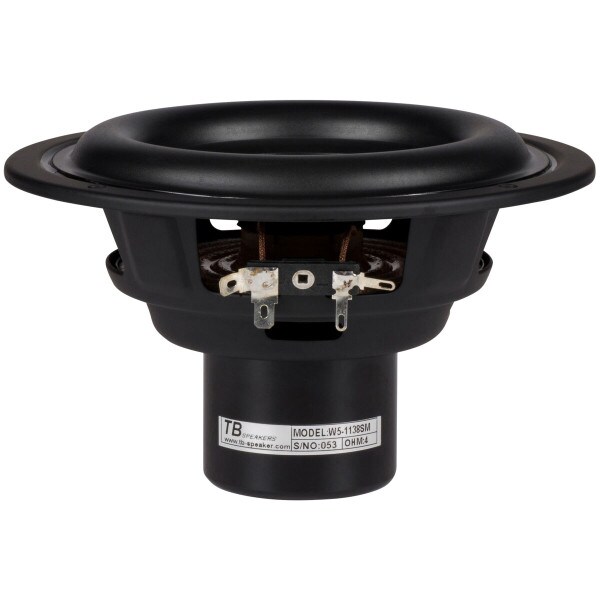

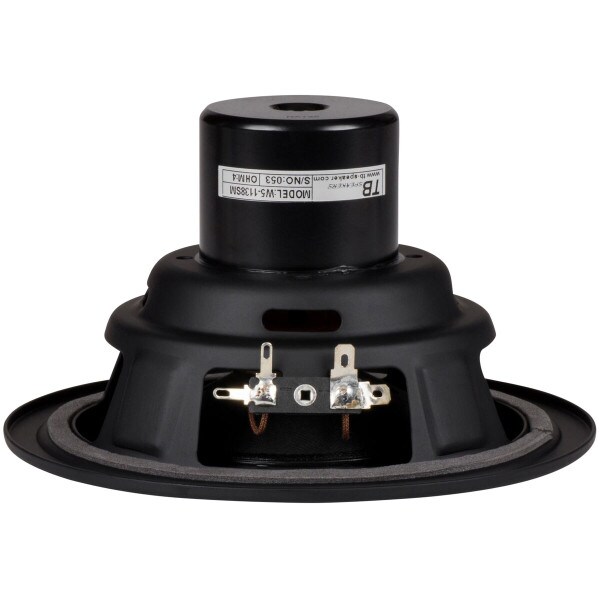

Tang Band W5-1138SM 5-1/4" Neodymium Subwoofer

Tang Band
Part #264-831
Model: W5-1138SM
Amazing bass in a compact package! This one-of-a-kind 5-1/4" subwoofer has an impressive 9.25 mm of Xmax. A wide roll surround, raised flat spider, and large 1-1/4" 4-layer voice coil ensure impressive bass performance and high power handling.
Key Features
  • Amazing bass in a compact package
  • Wide roll surround, raised flat spider
  • Vented pole and vented spider allow good airflow around the coil to improve heat dissipation and reduce compression
Your Price: $149.98
+ FREE SHIPPING
Bulk Pricing
Quantity:Qty: 1-3 $149.98/ea
Quantity:Qty: 4+$139.98/ea
Order in the next 15 hr 33 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Tang Band W5-1138SM 5-1/4" Neodymium Subwoofer

Amazing bass in a compact package! This one-of-a-kind 5-1/4" subwoofer has an impressive 9.25 mm of Xmax. A wide roll surround, raised flat spider, and large 1-1/4" 4-layer voice coil ensure impressive bass performance and high power handling. The vented pole and vented spider allow good airflow around the coil to improve heat dissipation and reduce compression. The ultimate miniature subwoofer driver!

Product Details

BrandTang Band
ModelW5-1138SM
Part Number264-831
UPC844632009785
Unit of MeasureEach
Weight1.8801

Product Specifications

Nominal Diameter5-1/4"
Bolt Circle Diameter5.7
Power Handling (RMS)40 Watts
Power Handling (MAX)80 Watts
Impedance4Ω
Frequency Response45 to 1,500Hz
Sensitivity82dB 2.83V/1m
Voice Coil Diameter1.26"

Thiele-Small Parameters

Resonant Frequency (Fs)45Hz
DC Resistance (Re)3.4Ω
Voice Coil Inductance (Le)1.15mH
Mechanical Q (Qms)2.83
Electromagnetic Q (Qes)0.58
Total Q (Qts)0.48
Compliance Equivalent Volume (Vas)0.21ft³
Mechanical Compliance of Suspension (Cms)0.49mm/N
BL Product (BL)6.51T·m
Diaphragm Mass Inc. Airload (Mms)24.95g
Maximum Linear Excursion (Xmax)9.25mm
Surface Area of Cone (Sd)94cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter6.13"
Baffle Cutout Diameter4.74"
Depth3.78"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.15ft³
Sealed F374.2Hz
Vented Volume0.3ft³
Vented F339.6Hz
