Tang Band W1-2025SA 1" Neodymium Full Range Driver

Tang Band
Part #264-925

Tang Band W1-2025SA 1" Neodymium Full Range Driver

Tang Band
Part #264-925

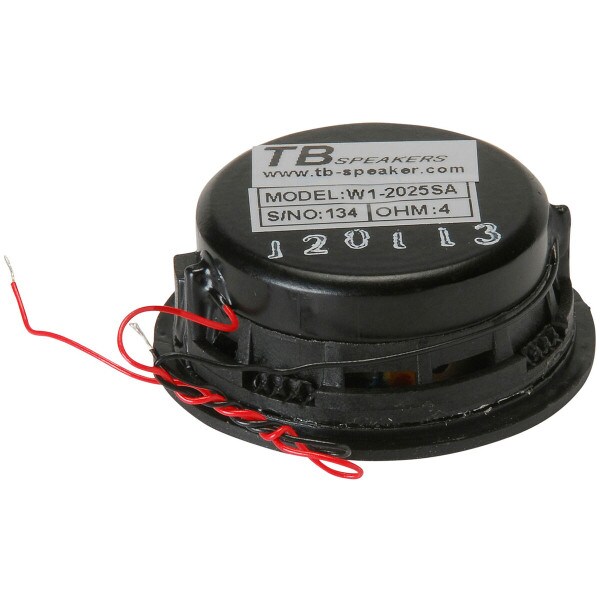

Model: W1-2025SA
Modern speaker designs and applications call for drivers that are exceptionally small. Traditionally, the sacrifice when using small drivers is performance. Tang Band's 40 mm W1-2025SA full range driver plays from 200 Hz all the way up to 20,000 Hz without losing fidelity!
Key Features
  • Amazing extended range response from 200 to 20,000 Hz
  • Perfect for line-arrays and modern speaker designs
  • Super low 0.02 mH inductance and ferrofluid cooled
  • Low 0.46 Qts driver for high fidelity performance
  • Santoprene surround with mineral filled poly cone and press-fit frame design
Your Price: $27.30
MSRP: $40.99
Save $13.69 (33%)
Bulk Pricing
Ships next business day. Details

389In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Tang Band W1-2025SA 1" Neodymium Full Range Driver

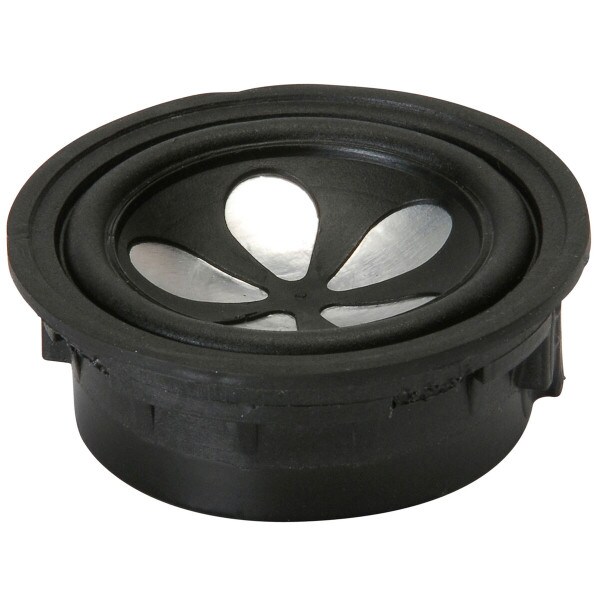

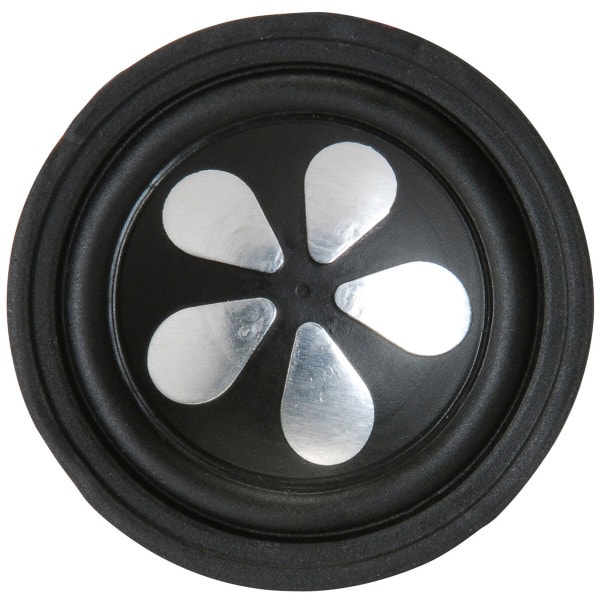

Tang Band's W1-2025SA micro full-range driver features amazing performance that belies its diminutive 40 mm diameter (just over 1-1/2") size. The patented design employs a unique aluminum cone, with flower petal embossments, that's mated to a neodymium motor for maximum BL product in the voice coil gap. A free air resonance of 200 Hz allows you to pair these nearly any woofer or subwoofer up to 5-1/2 feet away without localization and beaming effects (poor off-axis response).

Additionally, you can use these drivers in multiples for an awesome line-array speaker that requires a miniscule footprint. Great for use in designing micro LCR (left, center, right) speakers for modern flat panel HDTVs, or even computer desk and laptop speakers. The high-fidelity nature of these drivers is exemplified by their low Qts specification (quite rare in drivers this size), while the ultra-low inductance allows these to play relatively flat frequency response up 20,000 Hz! Ferrofluid cooling protects and cools the voice coil, while the mineral-filled polypropylene cone combines with the Santoprene surround for use in harsh environments. Press-fit frame design minimizes center-to-center distance.

Note: Higher power handling can be achieved by using a 150 Hz 2nd-order high-pass filter, or by using multiple drivers together.

Product Details

BrandTang Band
ModelW1-2025SA
Part Number264-925
UPC844632099434
Unit of MeasureEach
Weight0.1

Product Specifications

Nominal Diameter1-1/2"
Power Handling (RMS)4 Watts
Power Handling (MAX)8 Watts
Impedance4Ω
Frequency Response200 to 20,000Hz
Sensitivity84dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)200Hz
DC Resistance (Re)3.6Ω
Voice Coil Inductance (Le)0.02mH
Mechanical Q (Qms)2.39
Electromagnetic Q (Qes)0.57
Total Q (Qts)0.46
Compliance Equivalent Volume (Vas)0.002ft³
Mechanical Compliance of Suspension (Cms)1.01mm/N
BL Product (BL)2.14T·m
Maximum Linear Excursion (Xmax)0.75mm
Surface Area of Cone (Sd)6cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialSantoprene®
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter1.57"
Baffle Cutout Diameter1.42"
Depth0.55"

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.005ft³
Sealed F3365.9Hz
Vented Volume0.01ft³
Vented F3165Hz
