Tang Band T3-2190S 3" Subwoofer Module 7-1/2" x 3-5/8"

Tang Band
Part #264-942

Tang Band T3-2190S 3" Subwoofer Module 7-1/2" x 3-5/8"

Tang Band
Part #264-942
Model: T3-2190S

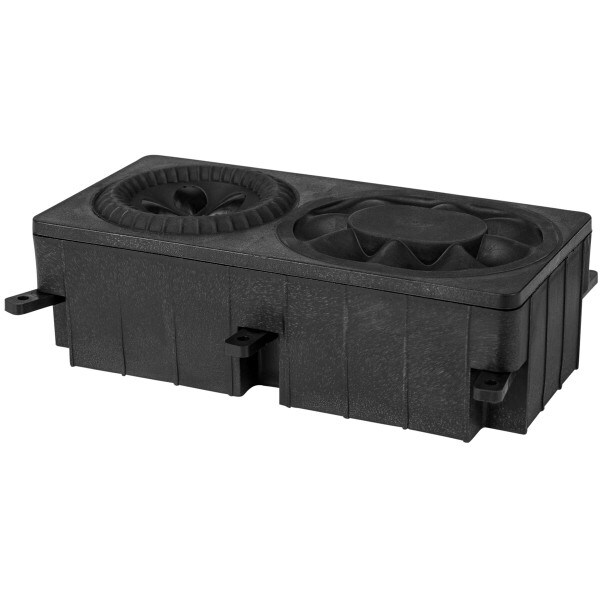

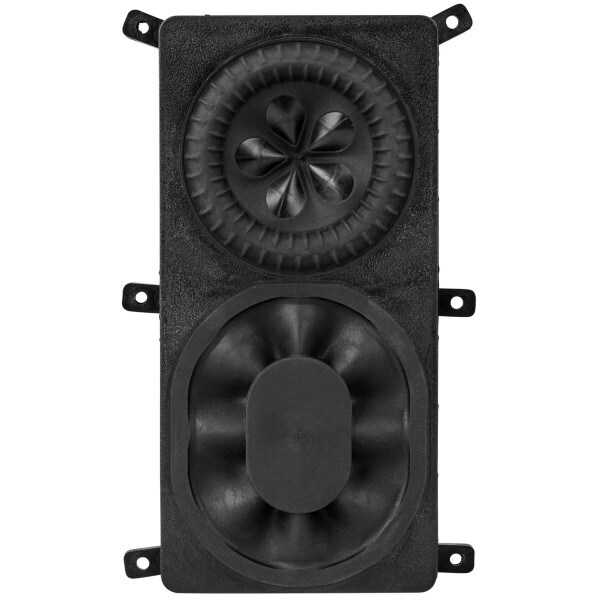

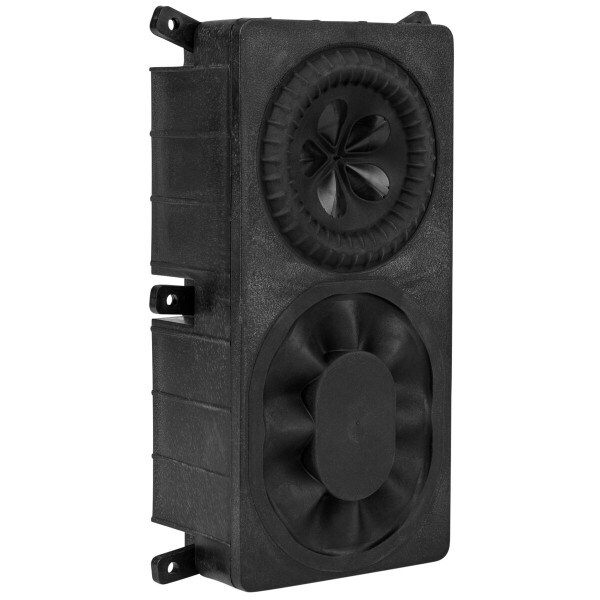

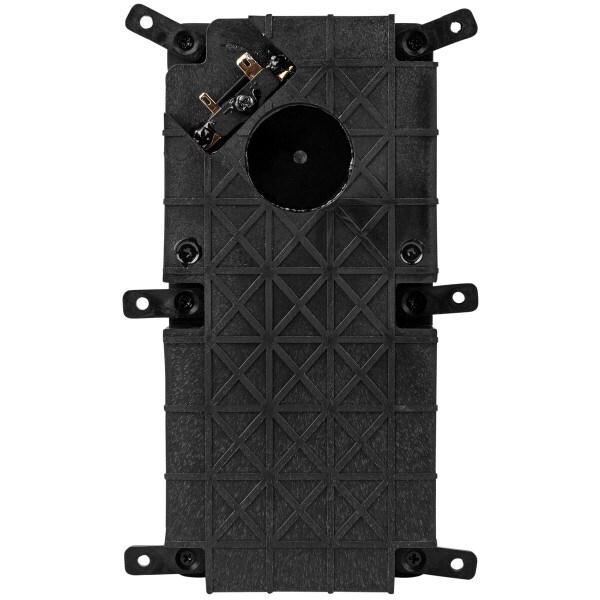

One of the smallest self-contained subwoofer systems, Tang Band's T3-2190S pairs a long throw 3" driver with a high excursion passive radiator in an ultra-compact enclosure allowing you to add substantial low end capabilities to almost any project.
Key Features
  • High excursion 3" driver with powerful neodymium motor
  • Low profile passive radiator keeps enclosure as small as possible
  • Fully self-contained design makes installation easy
  • Great for portable speakers and other compact speaker designs
  • This item available through special order only. Minimum order quantity is 50 pieces
Your Price: $63.80
+ FREE SHIPPING
MSRP: $95.99
Save $32.19 (34%)
Bulk Pricing
Quantity:Qty: 50+$63.80/ea

Out of Stock

Ships in 90-120 days, minimum order quantity 50 pcs.
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details

Overview

Tang Band T3-2190S 3" Subwoofer Module 7-1/2" x 3-5/8"

This item available through special order only. Minimum order quantity is 50 pieces

Tang Band's T3-2190S subwoofer module features a passive radiator-assisted 3" high excursion driver that can deliver powerful response down to 50 Hz in a compact 7.5" x 3.625" x 2.35" package. The Tang Band subwoofer and full range modules are the easiest way to design small speakers that provide big sound.

Tang Band's line of patented speaker modules are designed for modern audio applications such as sound bars, desktop multimedia speakers, flat panel TV speakers, and portable audio systems. Do not let this diminutive subwoofer module fool you; with decent efficiency and power handling this module can provide powerful low end to almost any project. Perfect for use in conjunction with Tang Band's full-range speaker modules for a true full-range system that that delivers hi-fidelity sound while consuming very little space.

Product Details

BrandTang Band
ModelT3-2190S
Part Number264-942
UPC848864039299
Unit of MeasureEach
Weight1.25

Product Specifications

Power Handling (RMS)15 Watts
Power Handling (MAX)30 Watts
Impedance
Frequency Response50 to 2,000Hz
Sensitivity80dB 2.83V/1m

Materials of Construction

Cone MaterialPoly
Surround MaterialRubber
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter7.5" x 3.625"
Depth2.35"
# Mounting Holes6
