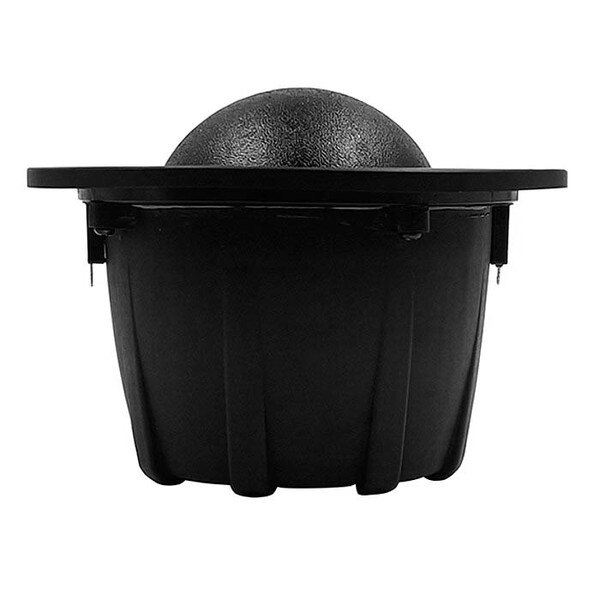

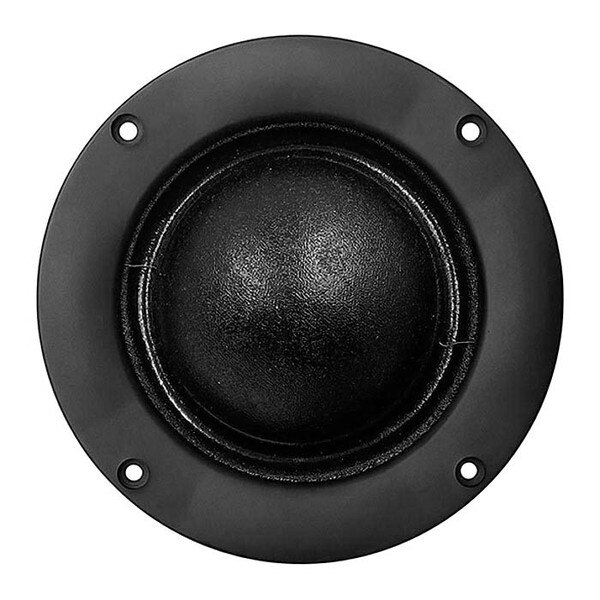

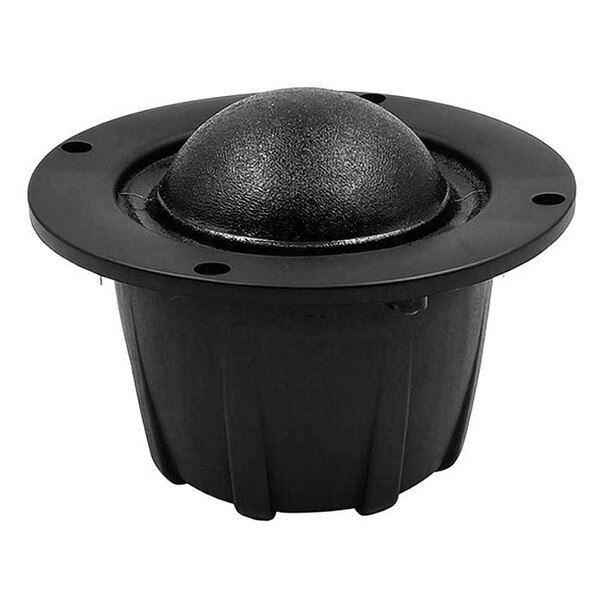

Tang Band 75-1558SH 3" Fabric Dome Midrange

3 Questions, 3 Answers or
Tang Band
Part #264-856

Tang Band 75-1558SH 3" Fabric Dome Midrange

Tang Band
Part #264-856
Model: 75-1558SH
3 Questions, 3 Answers or
Take your speaker from ordinary to extraordinary with the Tang Band 75-1558SH Soft Dome Midrange.
Key Features
  • 3" voice coil with damped soft dome
  • Shorting ring and optimized rear chamber for lower distortion
  • 90 dB SPL for high efficiency systems
  • Ferrofluid cooling for increased power handling
  • Low Fs and extended frequency response allows this to mate with almost any woofer and tweeter
Similar items that may interest you:
See all items in Midrange / Midbass Drivers & Full-Range Speakers
Your Price: $181.10
+ FREE SHIPPING
MSRP: $271.99
Save $90.89 (33%)
Bulk Pricing
Quantity:Qty: 1-3 $181.10/ea
Quantity:Qty: 4+$162.99/ea
Order in the next 2 hr 13 min to ship today. Details

14In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Tang Band 75-1558SH 3" Fabric Dome Midrange

The Tang Band 75-1558SH is a low distortion, wide bandwidth soft dome midrange that will create uncolored natural vocals and snappy dynamics to your next multi-way speaker build. High efficiency is achieved with a neodymium motor, and low second and third order harmonic distortion is aided with the used of a shorting ring and damped dome. The 75-1558SH has a broad 260-8,000 Hz frequency response that allows it to work with just about any size woofer and tweeter combination. Ferrofluid cooling keeps power compression low and power handling high.

Product Details

BrandTang Band
Model75-1558SH
Part Number264-856
UPC848864070841
Unit of MeasureEach
Weight1

Product Specifications

Nominal Diameter3"
Bolt Circle Diameter5.04
Power Handling (RMS)25 Watts
Power Handling (MAX)200 Watts
Impedance8Ω
Frequency Response260 to 8,000Hz
Sensitivity90dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)260Hz
DC Resistance (Re)6.5Ω
Voice Coil Inductance (Le)0.014mH
Mechanical Q (Qms)1.14
Electromagnetic Q (Qes)0.75
Total Q (Qts)0.45
Maximum Linear Excursion (Xmax)1.5mm

Materials of Construction

Cone MaterialSoft Dome
Basket / Frame MaterialPolymer
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter5.51"
Baffle Cutout Diameter4.6"
Depth2.95"
# Mounting Holes4
