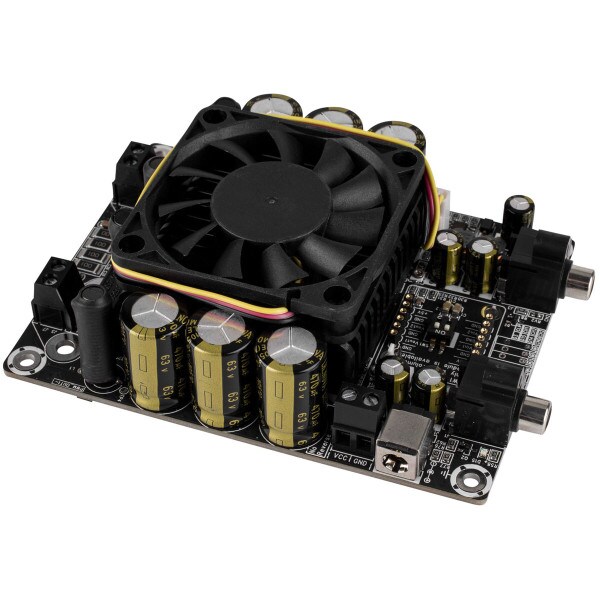

Sure Electronics AA-AB32971 2x100W Class D Audio Amplifier Board (T-Amp Technology)

Sure Electronics
Part #320-3340

Sure Electronics AA-AB32971 2x100W Class D Audio Amplifier Board (T-Amp Technology)

Sure Electronics
Part #320-3340
Model: AA-AB32971
This Class-D audio amplifier board gives you 2 x 100 watts using T-AMP technology. Using PBTL (Parallel Bridge-Tied Load) topology you get 50 watts RMS per channel with only 0.01% THD at 4 ohms.
Key Features
  • Uses PBTL topology for cleaner sound
  • On board heat sink and fan eliminates the need for external fans
  • Small footprint for space limited applications
  • Thermal and short circuit protection
  • Delivers up to 100W RMS per channel
  • Startup and power down pop elimination
  • 15 to 27 VDC power supply required
Your Price: $38.98
MSRP: $87.99
Save $49.01 (56%)
Bulk Pricing
Quantity:Qty: 1-3 $38.98/ea
Quantity:Qty: 4-49 $36.87/ea
Quantity:Qty: 50+$35.05/ea
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Sure Electronics AA-AB32971 2x100W Class D Audio Amplifier Board (T-Amp Technology)

Enjoy cleaner sound with this new Class-D 2 x 100W amplifier board. T-Amp technology delivers the best sound possible from a Class-D board for your new project. It's a great amp board for dual voice coil subwoofers or making your own gaming speakers. The AA-AB32971 can be installed in a small box that fits on a desk or small computer table.

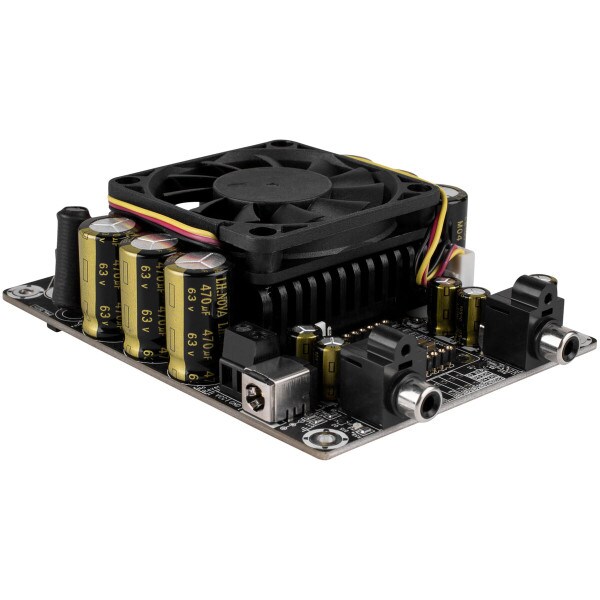

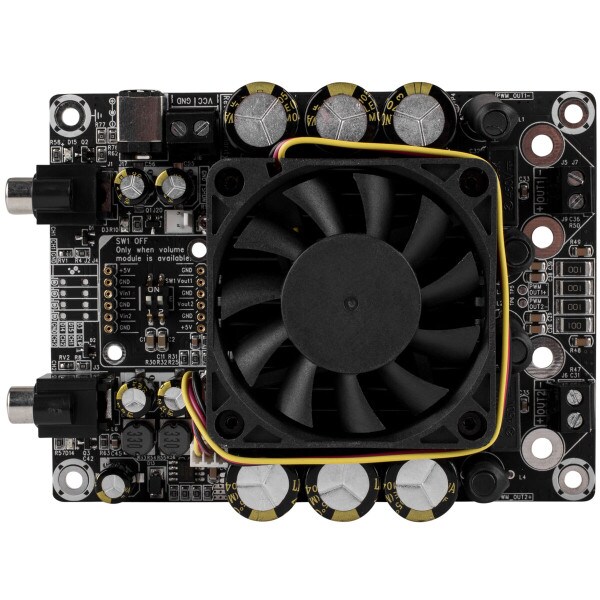

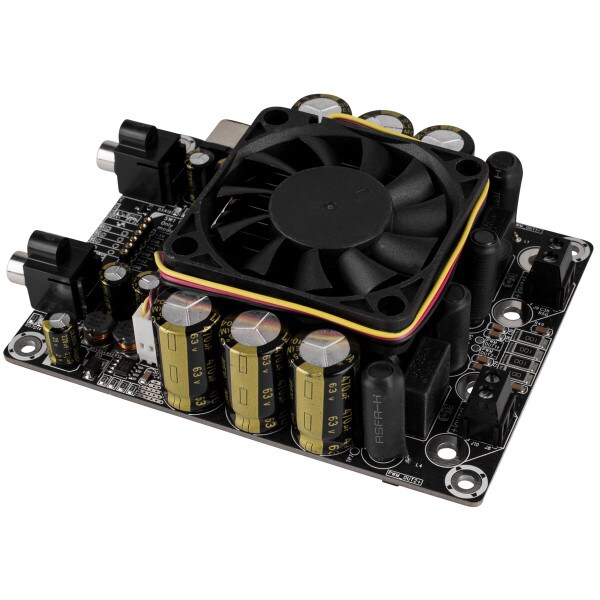

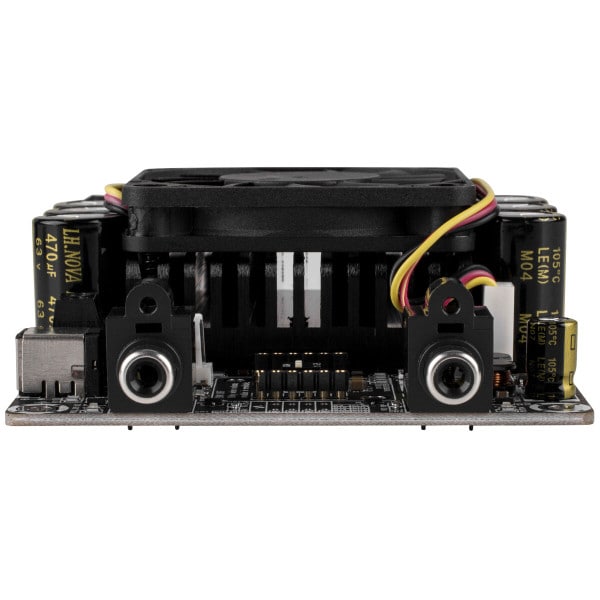

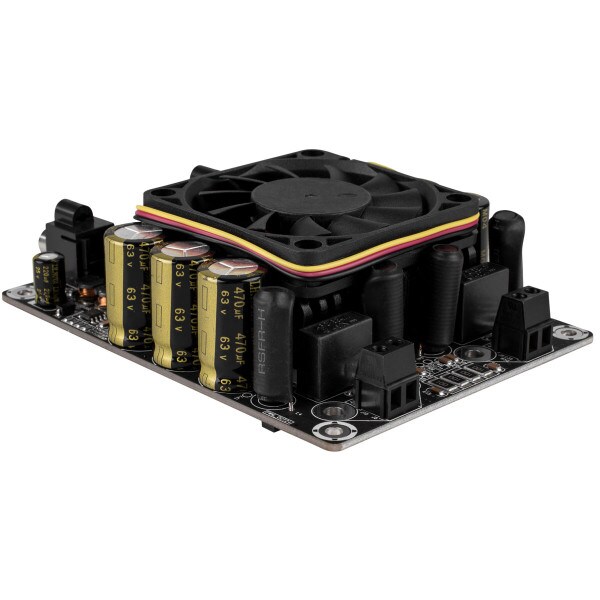

A low noise, temperature controlled, cooling fan is mounted atop the robust heatsink to maximize heat dissipation. Thermal, over/under voltage, and current protection circuits are also included to extend the longevity of the amplifier board. Mounting holes are provided as is a 2.5 mm x 5.5 mm power jack for quick connection. Screw-down phoenix-type terminals are included for quick speaker wire connection. RCA line-level inputs are pre-attached to make this board ready to rock.

Recommended power supply 5A Switching Power Supply

Specifications:
• Input power: 15 to 27 VDC
• Output power (w/ 27 VDC power supply): 100W x 2 (4 ohms, THD 10%), 72W x 2 (4 ohms, THD 1%)
• Maximum current draw: 8A
• Frequency response: 20-20,000 Hz
• Minimum impedance: 3 ohms
• DC jack: 2.5 x 5.5 mm
• Size: 4.80" x 3.60" x 1.53"

Product Details

BrandSure Electronics
ModelAA-AB32971
Part Number320-3340
UPC848864024875
Unit of MeasureEach
Weight0.75

Product Specifications

Board Type2 Channel Stereo Amp
Power (RMS/Channel 8 ohms)51 - 100 Watts
