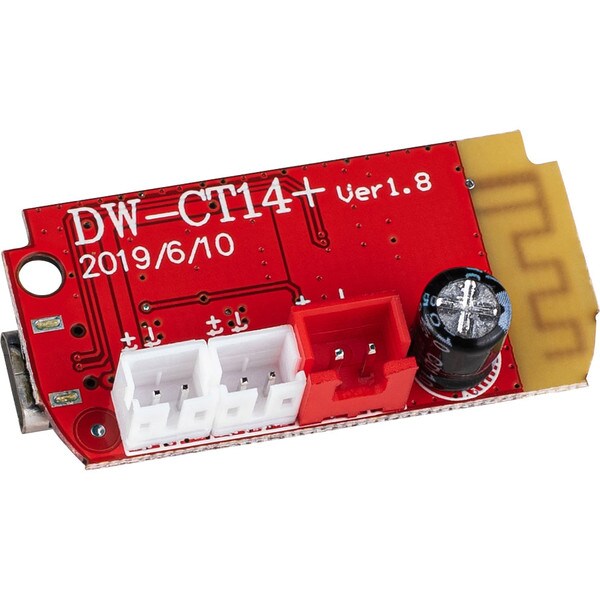

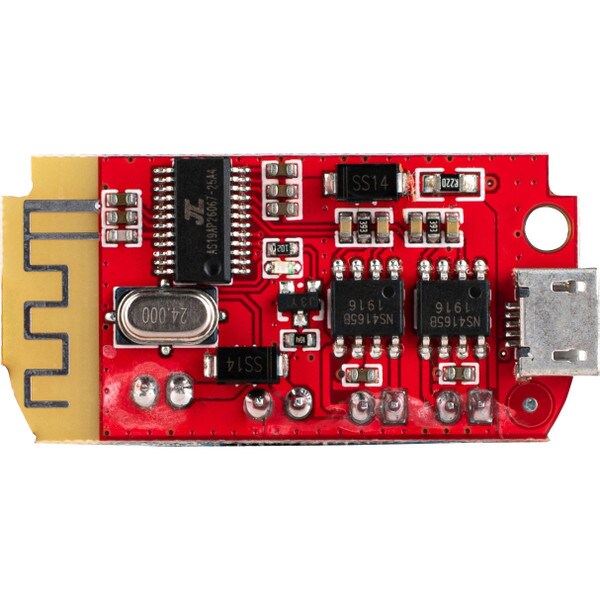

Stereo 5.0 Bluetooth 2 x 5W 5 VDC Amp Board with Tiny 1.6" x 0.8" Footprint and Battery Option

Parts Express
Part #320-6000

Stereo 5.0 Bluetooth 2 x 5W 5 VDC Amp Board with Tiny 1.6" x 0.8" Footprint and Battery Option

Parts Express
Part #320-6000
Create small, portable DIY Bluetooth audio projects with this tiny, but powerful 10W amplifier. Power it with one 3.7V Lithium Polymer battery and charge it with a powered USB port.
Key Features

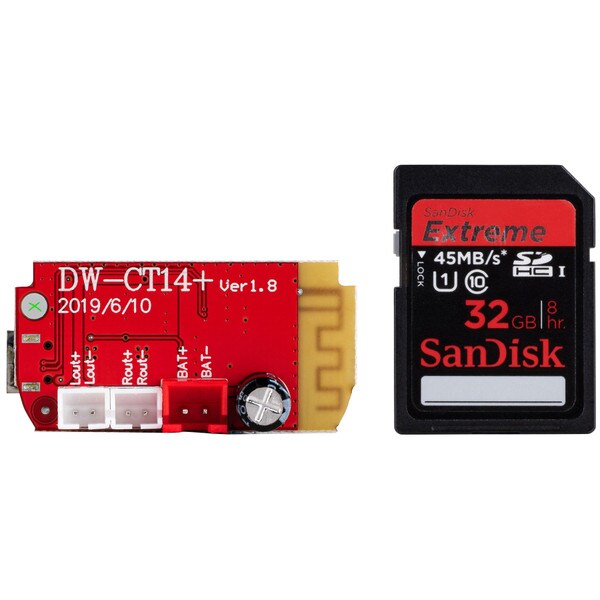

  • Smaller than an SD flash memory card to mount almost anywhere
  • Receive wireless sound from up to 50 ft. away with built-in Bluetooth 5.0
  • Works with 4 to 8 ohm speakers for flexibility
  • Low 4 to 5 VDC working voltage
  • Power with 3.7 VDC Lithium Polymer battery with protective plate (sold separately) and plays while charging
  • JST type sockets for quick solderless installation
Your Price: $5.19
MSRP: $9.99
Save $4.80 (48%)
Bulk Pricing
Quantity:Qty: 1-9 $5.19/ea
Quantity:Qty: 10+$4.67/ea
Order in the next 2 hr 26 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Stereo 5.0 Bluetooth 2 x 5W 5 VDC Amp Board with Tiny 1.6" x 0.8" Footprint and Battery Option

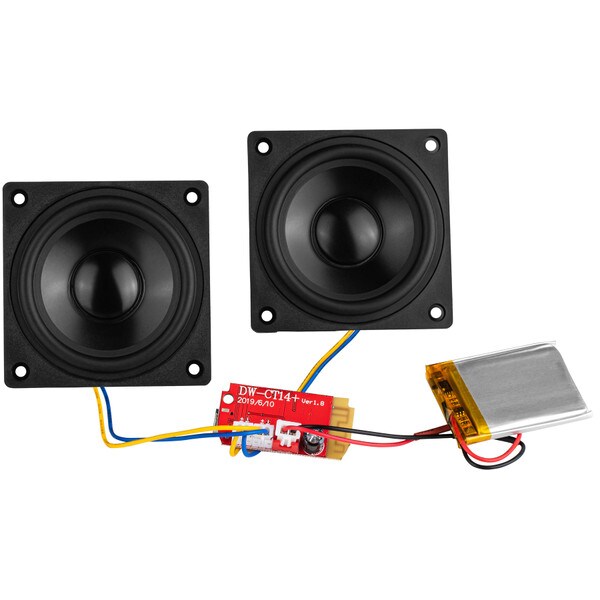

This tiny Bluetooth amp board works perfect for small portable amplified speaker projects. It's not always convenient to make large powered speaker projects. Some enclosures need to be super small and use small speakers, but you still want to be able to turn it up to fill a room. At 5W per channel this amp produces plenty of Bluetooth wireless sound for multiple types of small DIY audio projects. It only needs 5 VDC 1A from any powered USB port to produce great sound and 3A of current makes it sound even better.

Add a 3.7V Lithium Polymer battery for even more applications. Think about all the holiday theme decorations that now have the ability to have wireless sound. Add music to Christmas ornaments and Halloween displays or project your voice wirelessly through a Jack-o'-lantern. Cut the cord to add a lot more options with a 3.7V Lithium Polymer battery.

Note: Make sure the battery has a protective circuit module (PCM) to prevent over charging. Check the polarity of the battery plug to make sure it matches the polarity on the amp board. The board completely shuts down after 10 minutes of searching for Bluetooth and no connectivity. Reset the power and Bluetooth by removing all power for 10 seconds.

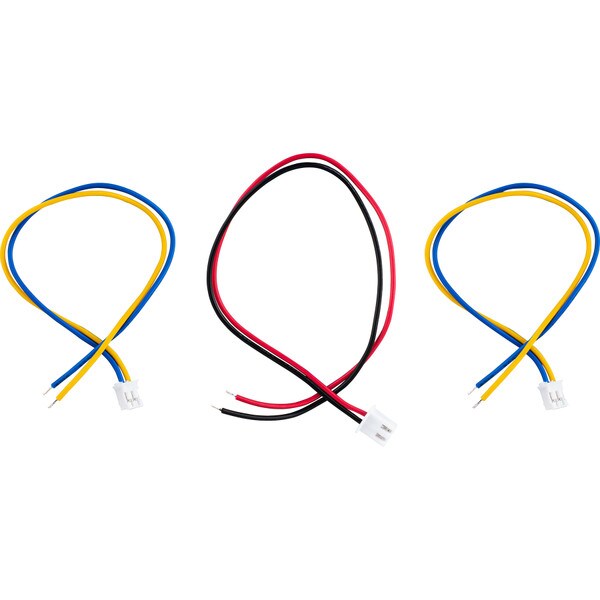

Specifications: • Voltage input: 4 to 5 VDC • Power output: 2 x 5W @ 4 ohm • Recommended speaker impedance: 4 to 8 ohm • Recommended battery: PCM 3.7V Lithium Polymer battery • Speaker connector wires: JST PH 2-pin plug with 6" leads • Power connector wire: JST XH 2.54 2-pin plug with 7.5" leads • Bluetooth version and name: 5.0, DW-CT14+ • Board dimensions: 1.6" W x 0.8" D and 0.5" H with components • USB power port: Micro USB.

Product Details

BrandParts Express
Part Number320-6000
UPC848864063768
Unit of MeasureEach
Weight0.05

Product Specifications

Board Type2 Channel Stereo Amp
Power (RMS/Channel 8 ohms)0 - 25 Watts
Special FeaturesBluetooth
