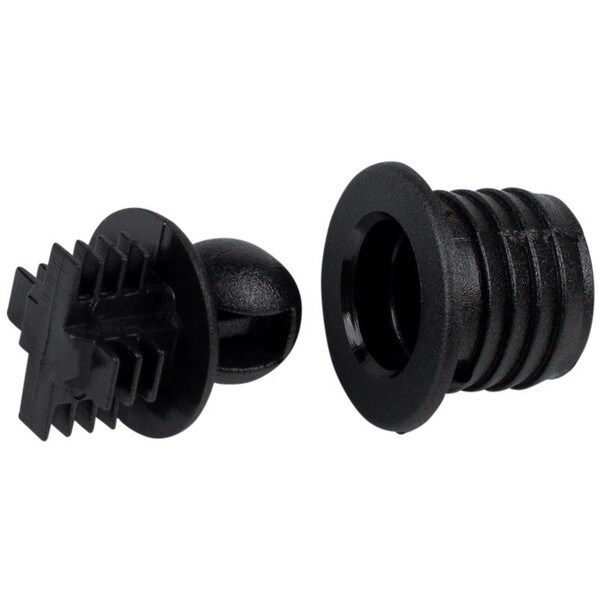

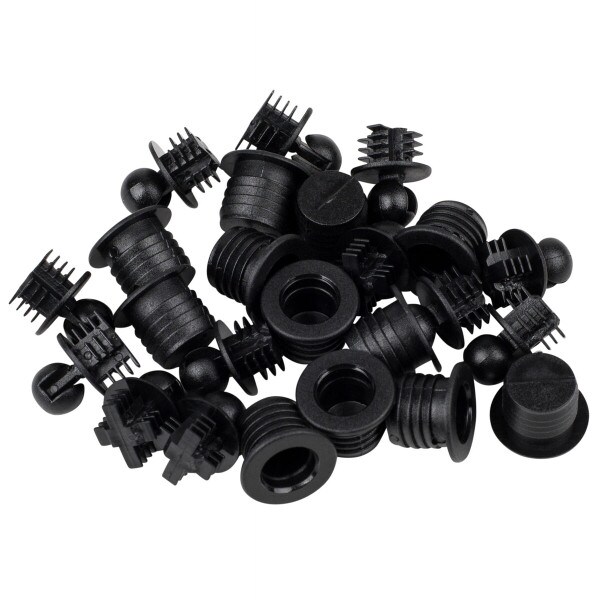

Ball and socket type grill guides for attaching speaker grill to cabinet. To use, simply drill the appropriate size holes in cabinet and grill frame. Both the male and female portions press-fit into their appropriate holes. 12 pair per package.

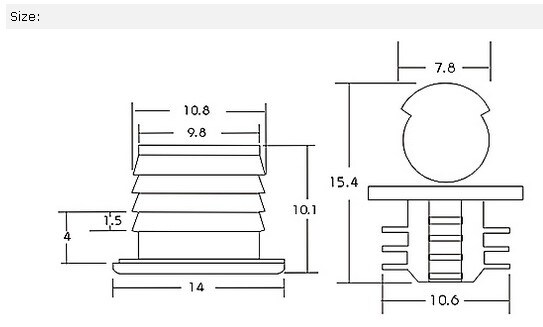

Fits cabinet holes measuring 25/64" (10 mm) diameter by 3/8" (9.6 mm) deep and grill frame holes measuring 3/8" (9.6 mm) diameter by 1/4" (6.35 mm) deep.
Note: Use a 13/32" (10 mm) drill bit for the cabinet holes for best results.
Product Details | |
|---|---|
| Brand | Parts Express |
| Part Number | 260-368 |
| UPC | 844632018510 |
| Unit of Measure | Each |
| Weight | 0.04 |
