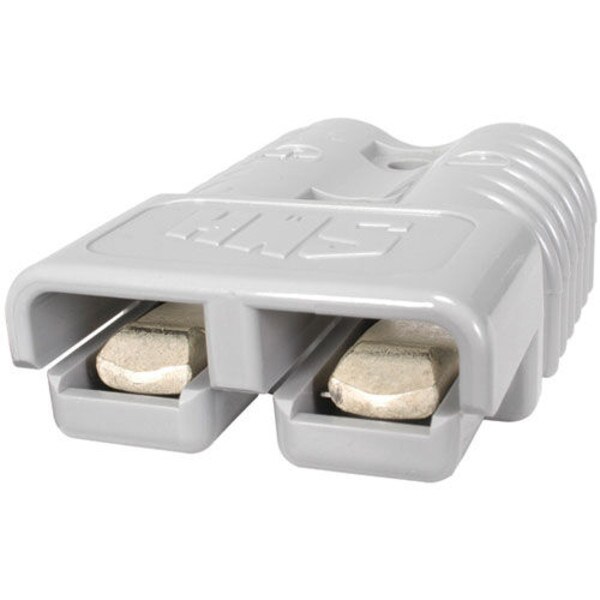

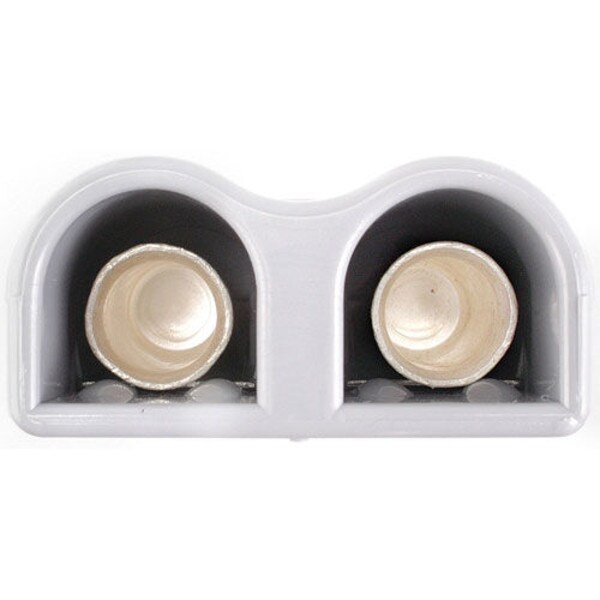

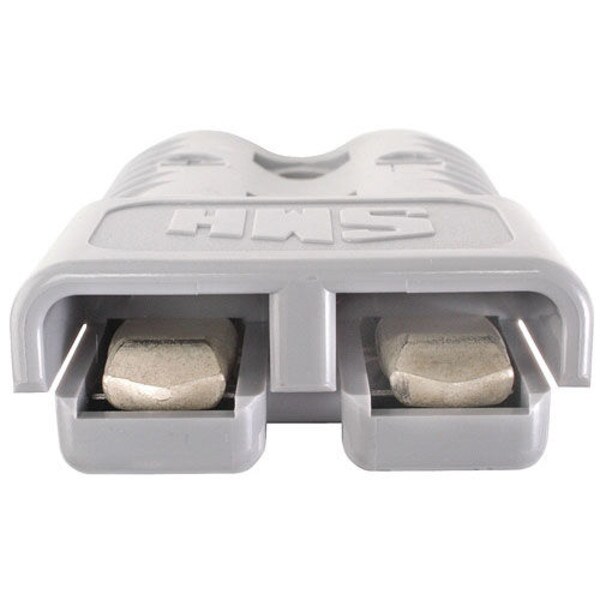

SMH SY175 Series 1/0 AWG 175A Breakaway DC Power Connector
SMH
Part #263-112
SMH SY175 Series 1/0 AWG 175A Breakaway DC Power Connector
SMH
Part #263-112
Model: SY6325G1
The SMH SY6325G1 battery connector is designed for use as a power quick-disconnect in automotive, RV, and marine applications, as well as other high-current DC charging circuits.
Key Features
- 1/0 AWG battery connector kit rated at 175A, 600 VDC
- Impact resistant polycarbonate housing offers high physical strength and superior dielectric properties
- Silver-plated solid copper contacts offer low resistance for superior conductivity
- Self cleaning contact design resists arcing by keeping conductive surfaces clean and free of corrosion
- Contacts have flared and heat treated barrels which readily accept fine stranded wire
- Integral stainless steel springs maintain constant pressure on the contact to insure a consistent, low-resistance connection

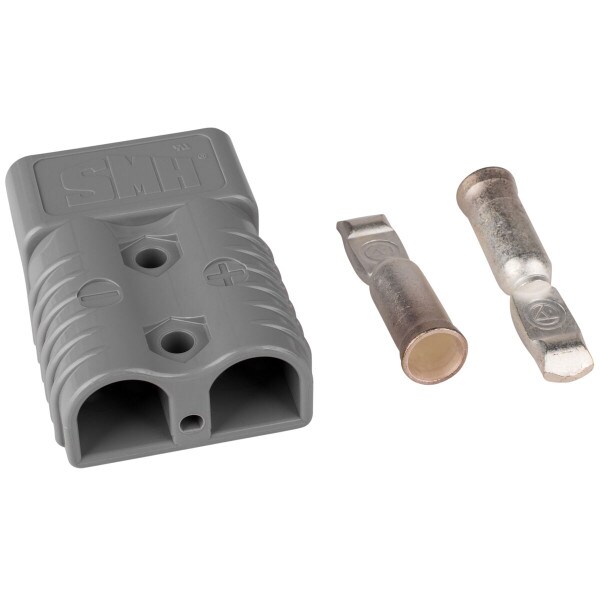

- Note: Assembly includes one housing and two tips (contacts)
