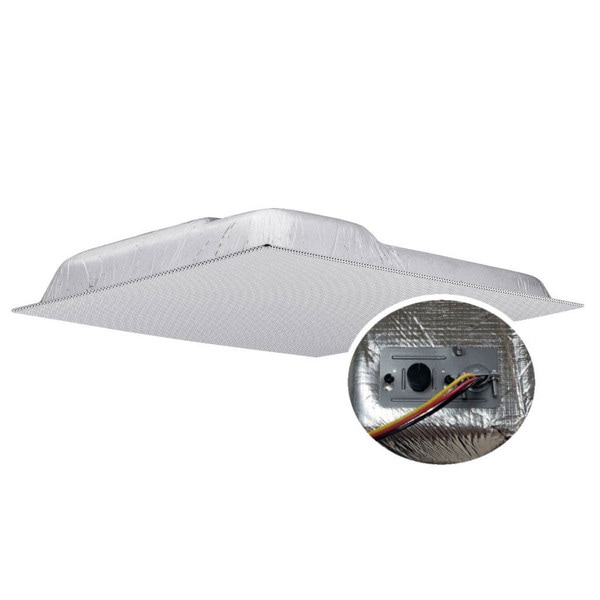

Quam SYSTEM 12URS 24" x 24" Lay-In Ceiling Tile Speaker

1 Question, 2 Answers or
Quam
Part #244-3145

Quam SYSTEM 12URS 24" x 24" Lay-In Ceiling Tile Speaker

Quam
Part #244-3145
Model: SYSTEM 12URS
1 Question, 2 Answers or
The SYSTEM 12 by Quam is a complete loudspeaker assembly with a full range loudspeaker, perforated steel baffle, and integral molded fiber enclosure. Finish is a white baked epoxy hybrid. Intended use in an indoor environment, mounted parallel to floor plane in a 24" wide suspended ceiling tile grid for signal tones, voice, and music. The Quam SYSTEM 12 is UL Listed 1480- (UEAY, UAEY7-Canada) when installed in accordance with supplied installation instructions, requirements of NEC and AHJ. Made in Chicago, USA.
Key Features
  • 24" x 24" lay-in speaker tile
  • 4W, 25/70V, rotary select transformer with 5 taps
  • For indoor environments
  • Program material: Signal tones, voice, and music
  • Made in Chicago, USA
Similar items that may interest you:
See all items in Commercial Ceiling Speakers
Your Price: $109.90
+ FREE SHIPPING
MSRP: $141.54
Save $31.64 (22%)
Bulk Pricing
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Quam SYSTEM 12URS 24" x 24" Lay-In Ceiling Tile Speaker

The SYSTEM 12URS includes all components in a pre-assembled package designed for quick installation. It is a 2? x 2?, lay-in ceiling tile replacement enclosure with a high durability, powder coated and perforated steel baffle, and a lightweight speaker assembly that includes an 8?, high efficiency speaker with a 5 oz. magnet and a 4 Watt, 25/70V transformer with rotary tap selector.

By providing high intelligibility, visual appeal and excellent reliability, the SYSTEM 12URS is designed for a wide range of commercial sound applications. The SYSTEM 12URS is UL Listed, and provides four (4) seismic tie-off points to comply with local codes in most jurisdictions. The SYSTEM 12URS can be installed in a ceiling tile grid in about one minute, which saves installation labor and enhances your profits. When you need a high quality, great sounding speaker that installs in minutes, make Quam your choice for speakers.

Specifications: • 4W, 25/70V, rotary select with 5 taps (0.25W, 0.50W, 1W, 2W, 4W) • Average sensitivity: 92 dB 1W/1m • Power rating: 12 watts RMS • Max. system output: 98 dB, 5W/1m • Magnet type: weight: BeFe ceramic, 5 oz. nominal • Frequency response: 65 Hz - 17 kHz • Nominal coverage angle: 100° included angle, -6 dB/ 2 kHz, half space • Audio connection: 7-1/2" long labeled, tinned wires, pre-cut.

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire.  The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Learn More

Product Details

BrandQuam
ModelSYSTEM 12URS
Part Number244-3145
UPC851564007178
Unit of MeasureEach
Weight7
