  • Quam SYSTEM 12/25RS/DM 24" x 24" Lay-In Ceiling Title Speaker with Device Mount 4W/25V

CLEARANCE Quam SYSTEM 12/25RS/DM 24" x 24" Lay-In Ceiling Title Speaker with Device Mount 4W/25V

Quam
Part #244-3371

CLEARANCE Quam SYSTEM 12/25RS/DM 24" x 24" Lay-In Ceiling Title Speaker with Device Mount 4W/25V

Quam
Part #244-3371
Model: SYSTEM 12/25RS/DM

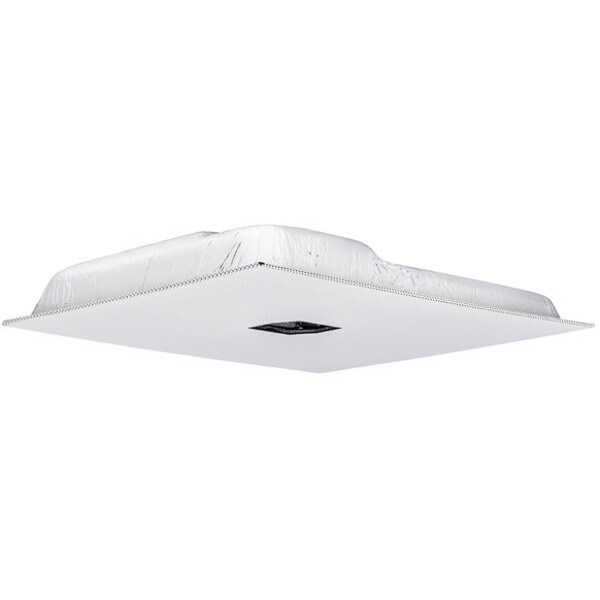

The Quam SYSTEM 12/25RS/DM is a complete 24" x 24" tile replacement speaker with a built-in 1-gang and 4 sq device mount to accommodate 3rd party strobes, Wi-Fi access points, WLAN, indicator lights, and cameras. Components include an 8" O.D. loudspeaker with a 4W-25V rotary select transformer. Grille is perforated steel with four seismic tie-off points in a white powder coat finish. Perfect for signal tones, voice, paging, and background music.
Key Features
  • 8" loudspeaker and 4W/25V rotary select transformer

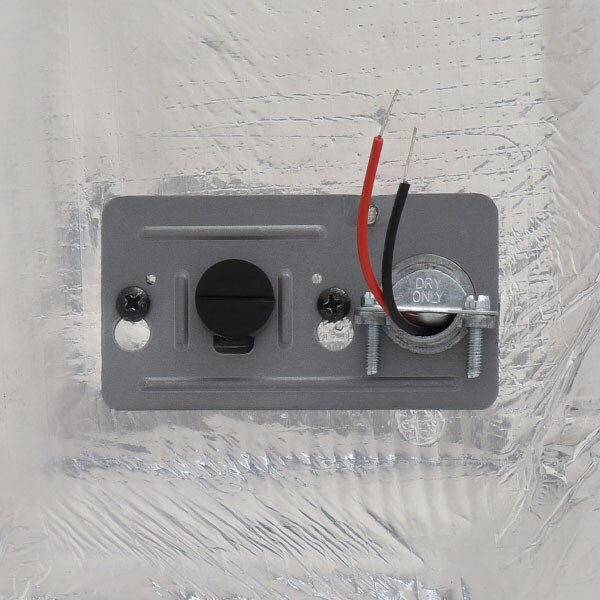

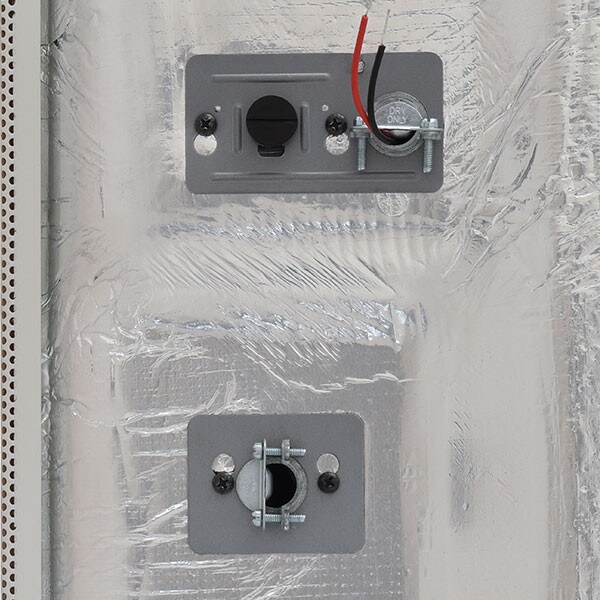

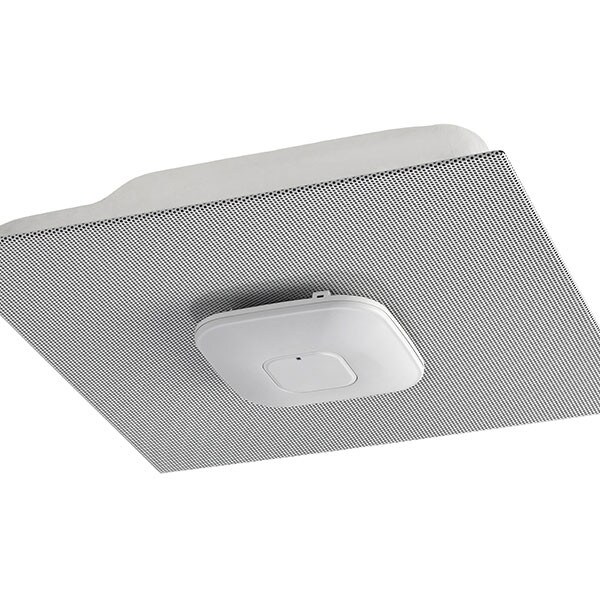

  • Built-in 1-gang device mount to accommodate 3rd party strobes, Wi-Fi access points, WLAN, indicator lights, and cameras
  • Perfect for signal tones, voice, and background music
  • Shallow depth and light weight with 7" audio lead connections for simple installation
  • Made in Chicago, USA
CLEARANCE $99.98
+ FREE SHIPPING
MSRP: $139.90
Save $39.92 (29%)
Bulk Pricing
Ships next business day. Details

3In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Quam SYSTEM 12/25RS/DM 24" x 24" Lay-In Ceiling Title Speaker with Device Mount 4W/25V

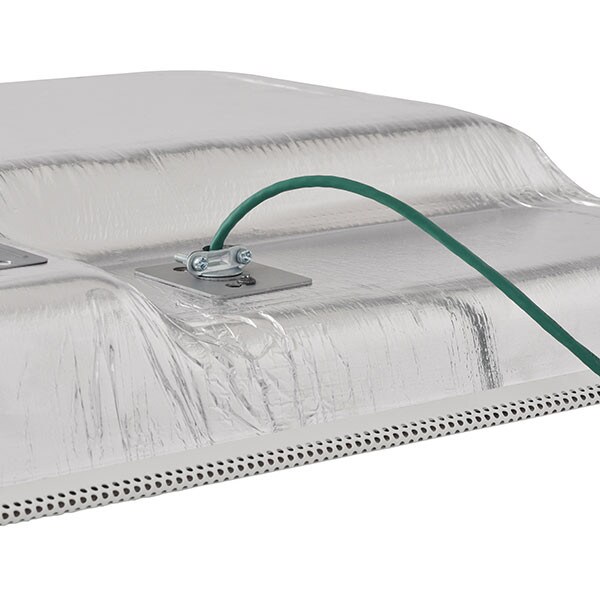

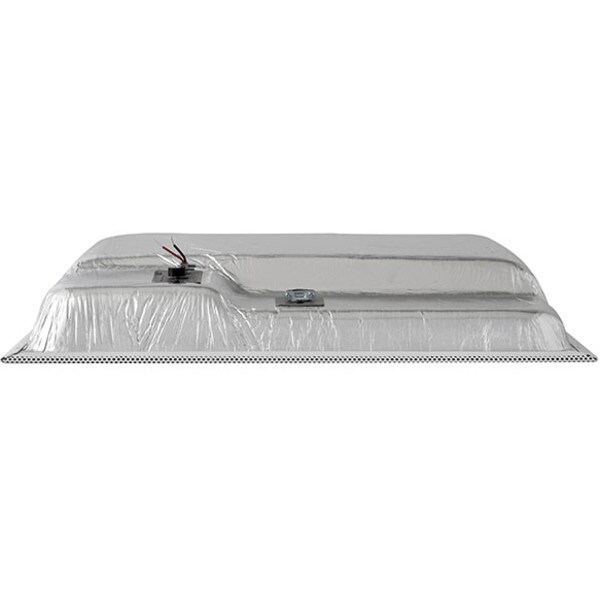

The SYSTEM 12/25RS/DM is a complete 24" x 24" tile replacement speakers with a shallow depth and lightweight enclosure. A built-in 1-gang and 4 sq device mount accommodates 3rd party strobes, Wi-Fi access points, WLAN, indicator lights and cameras. The speaker features easy cabling pass through to the front device mount location. Components include an 8" O.D. loudspeaker, 5-oz. magnet, a 4W-25V rotary select transformer. Integral enclosure is 1,283 CID molded fiber. Grille is perforated steel with four seismic tie-off points in a white powder coat finish.

Specifications:


Average sensitivity: 92 dB SPL 1W/1m
Loudspeaker power rating: 12 watts RMS EIA 426A Standard
Maximum power rating: 15 watts @ 8 Ohms
Calculated output: 98 dB SPL 4W/1m
Magnet type & weight: BeFe ceramic, 5 oz. nominal
Frequency response: 65-17,000 Hz EIA 426A Standard
Nominal coverage angle: 100° included angle -6 dB / 2 kHz, half space
Audio connection: 7" leads
Loudspeaker: 8C5PAX
Transformer: 4W-25V: 5 tap, rotary select (4W, 2W, 1W, 0.50W, 0.25W)
Unit weight: 6.35 lbs.
Dimensions: 24" x 24"

Product Details

BrandQuam
ModelSYSTEM 12/25RS/DM
Part Number244-3371
UPC848864060651
Unit of MeasureEach
Weight8.05

Product Specifications

Input Rating8 ohm
Mounting StyleDrop-in Tile
Woofer Diameter8"
