Pyle PLBW124 Blue Wave 12" Woofer

Pyle Audio
Part #267-086

Pyle PLBW124 Blue Wave 12" Woofer

Pyle Audio
Part #267-086
Model: PLBW124
Feast your eyes upon the azure curves of Pyle's Blue Wave series and you'll agree: the PLBW124 is a 12" booming 1200 watt subwoofer designed with the bass lover in mind.
Key Features
  • Blue injection molded cone
  • Non-fatiguing big rubber suspension
  • Blue chrome-plated reinforced polymer basket
  • Bumped vented extended pole piece
  • 2" high temperature dual Kapton voice coil
Your Price: $67.98
MSRP: $141.99
Save $74.01 (52%)
Bulk Pricing
Order in the next 4 hr 24 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

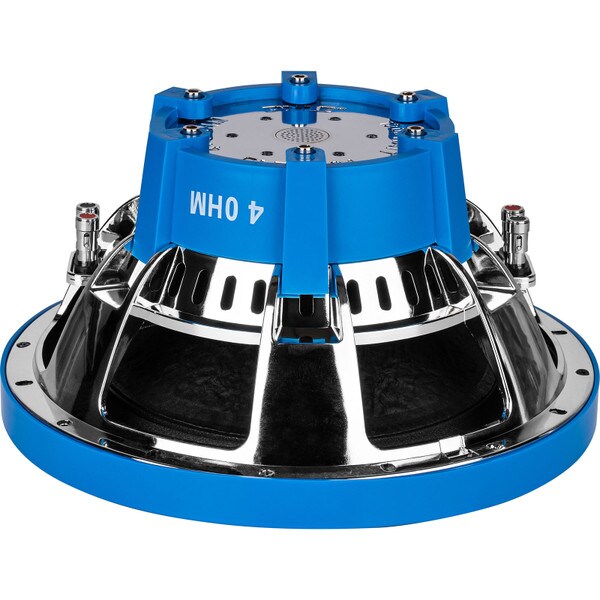

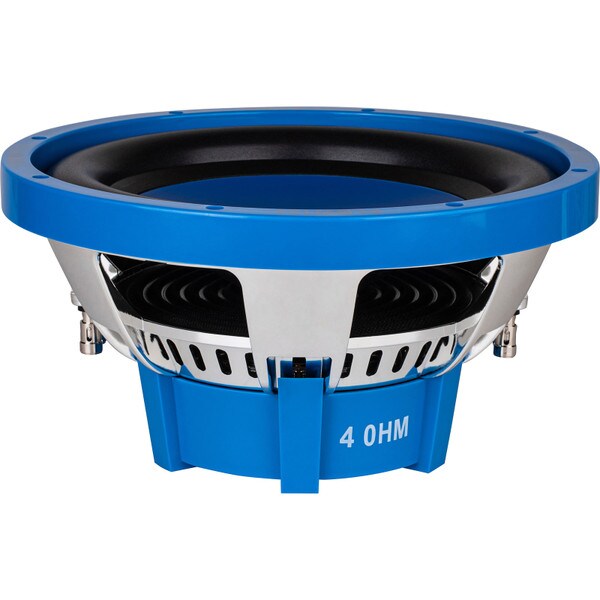

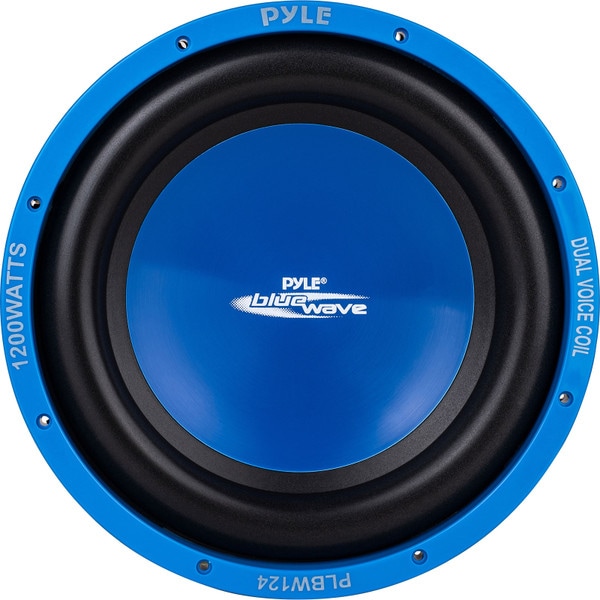

Pyle PLBW124 Blue Wave 12" Woofer

Pyle's Blue Wave series speakers don't just sound great - they look great, too. Feast your eyes upon the azure curves of Pyle's Blue Wave series and you'll agree: the PLBW124 is a 12" booming 1200 watt subwoofer designed with the bass lover in mind. This subwoofer will make your music growl in your vehicle or at home, in any type of enclosure: sealed, vented, or open-air.

The blue injected molded cone looks great - and thanks to a 70 oz. magnet, non-fatiguing big rubber suspension, and a rubber magnet boot, it sounds great too. The flat progressive spider design improves the speaker's mechanical stability -- increasing the life of your speaker and keeping your sound clearer over time. Connect using the silver plated terminals for a distortion-free sound.

Product Details

BrandPyle Audio
ModelPLBW124
Part Number267-086
UPC068888876100
Unit of MeasureEach
Weight15.28

Product Specifications

Nominal Diameter12"
Power Handling (RMS)250 Watts
Power Handling (MAX)1200 Watts
Impedance8Ω
Sensitivity84dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)40Hz
Mechanical Q (Qms)5
Electromagnetic Q (Qes)0.9
Total Q (Qts)0.75
Compliance Equivalent Volume (Vas)5.2ft³

Materials of Construction

Cone MaterialPoly
Surround MaterialRubber
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialPolymer
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12.8"
Depth5.76"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.5ft³
Sealed F361.3Hz
Vented Volume2ft³
Vented F354.1Hz
