Powered Dayton Audio Reference 12" Subwoofer Kit with Dual Passive Radiators & 500 Watt DSP Plate Amp

Parts Express
Part #300-7154

Powered Dayton Audio Reference 12" Subwoofer Kit with Dual Passive Radiators & 500 Watt DSP Plate Amp

Parts Express
Part #300-7154
Model: 300-7154
For high output and low extension, this 500 watt 12" subwoofer kit is an excellent choice. Thanks to the passive radiator assisted design, this subwoofer is just a 16" cube, but can match the output capability of much larger designs. In addition, the included Dayton Audio SPA500DSP 500 watt amplifier provides plenty of power, but more importantly, the customizable on board DSP provides flexibility and control you will not find on any other subwoofer in this price range.
Key Features
  • 90.5 dB efficient driver with 500 watt amplifier combines for excellent output capability

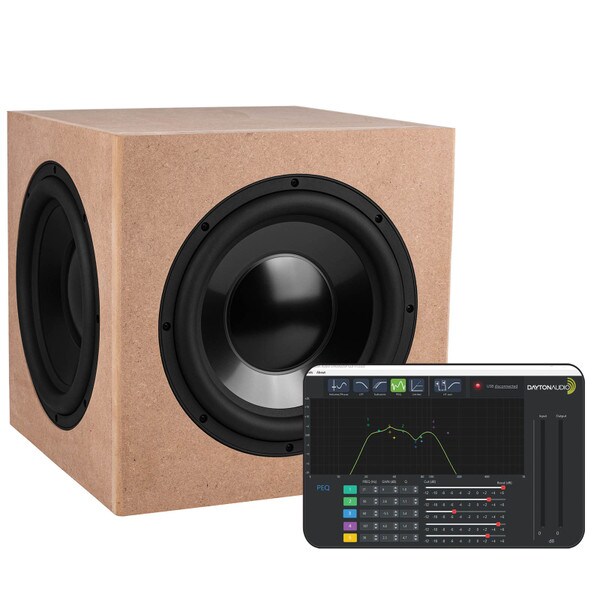

  • Flexible DSP with simple user interface allows seamless system integration
  • Passive radiator assisted design extends bass response and improves output
  • Customize the precision CNC-cut MDF enclosure to fit in any decor
Your Price: $829.98
+ FREE SHIPPING
MSRP: $966.95
Save $136.97 (14%)
Bulk Pricing

Out of Stock

Estimated back in stock 1/31/2025
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Powered Dayton Audio Reference 12" Subwoofer Kit with Dual Passive Radiators & 500 Watt DSP Plate Amp

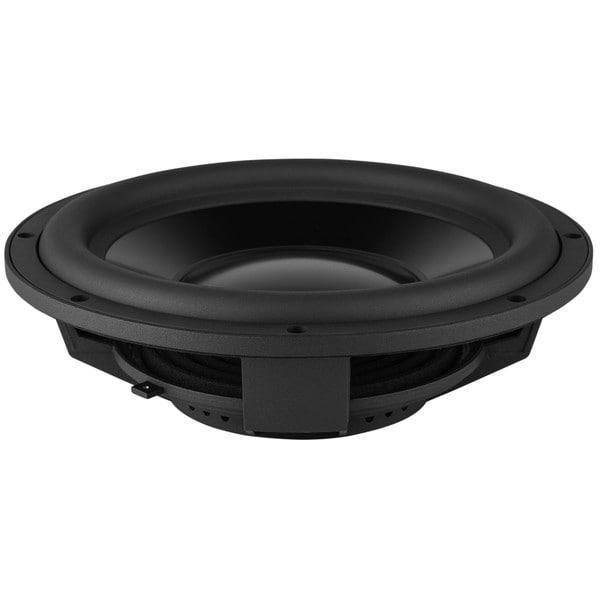

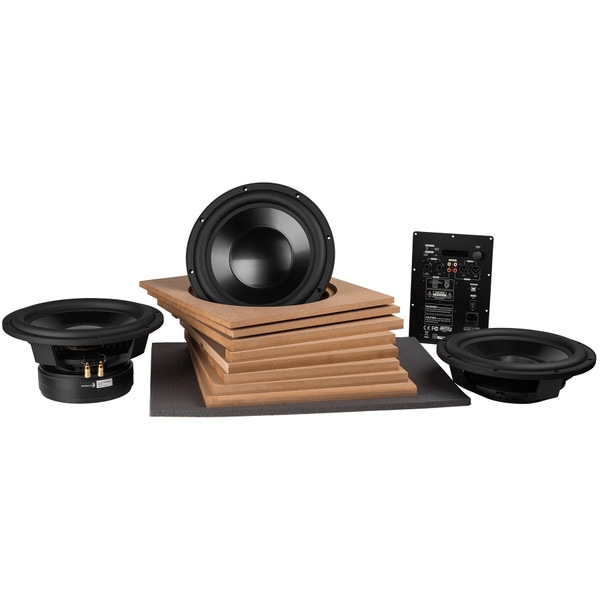

Small enough for use in a bedroom or office, with output capability big enough for a serious home theater, this powered 12" subwoofer kit is the perfect addition to any audio system. With Dayton Audio's RSS315HO-4 12" ultra-low distortion driver paired up with two of the matching RSS315-PR passive radiators this subwoofer kit can move quite a bit of air to provide outstanding output for its size. For power this kit uses the Dayton Audio SPA500DSP subwoofer amplifier which delivers 500 watts of power, but more importantly this amplifier includes DSP with an extremely user friendly interface allowing you to setup and customize this subwoofer to perfectly integrate into almost any system and room. Thanks to the compact size of this subwoofer kit, two could easily be used in more powerful music and home theater systems to provide more even response throughout the listening space.

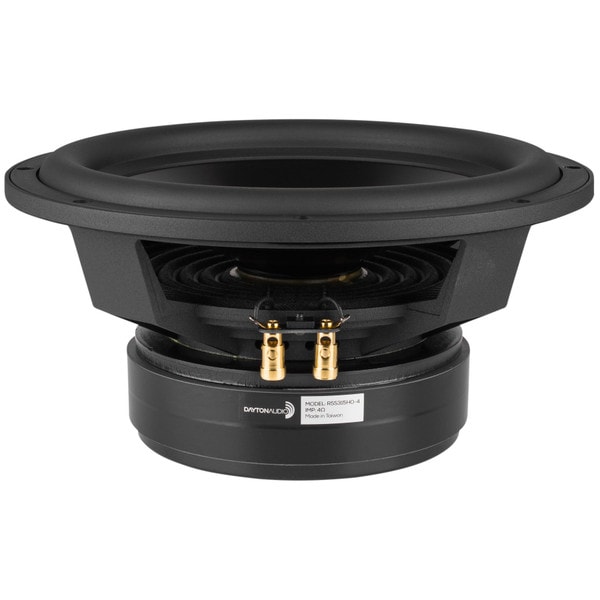

Dayton Audio RSS315HO-4 12" Subwoofer Specifications: • Power handling: 700 watts RMS/1,400 watts max • Le: 1.75 mH • Impedance: 4 ohms • Re: 3.2 ohms • Frequency response: 26-600 Hz • Fs: 26.2 Hz • SPL: 90.5 dB 2.83V/1m • Vas 1.89 ft³ • Qms: 3.63 • Qes: 0.33 • Qts: 0.31 • Xmax: 12.3 mm.

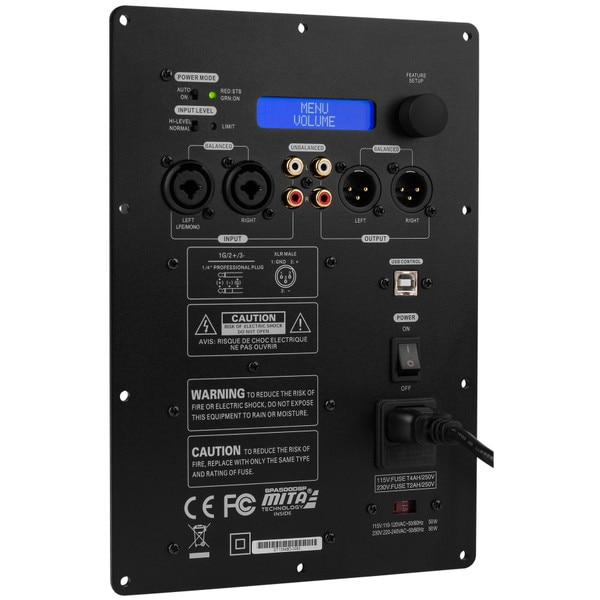

Dayton Audio SPA500DSP 500W Subwoofer Plate Amplifier Specifications: • Power output: 500 watts RMS into 4 ohms, THD+N <1.0% • Signal to noise ratio: 97.9 dB (A-weighted) • Power requirements: 110~120/220~240 VAC selectable, 50/60 H • Low pass adjustment: 30 Hz to 125 Hz • Phase adjustment: Continuously variable from 0º (normal) to 180º (reverse) • Power requirements: 110~120/220~240 VAC selectable, 50/60 Hz.

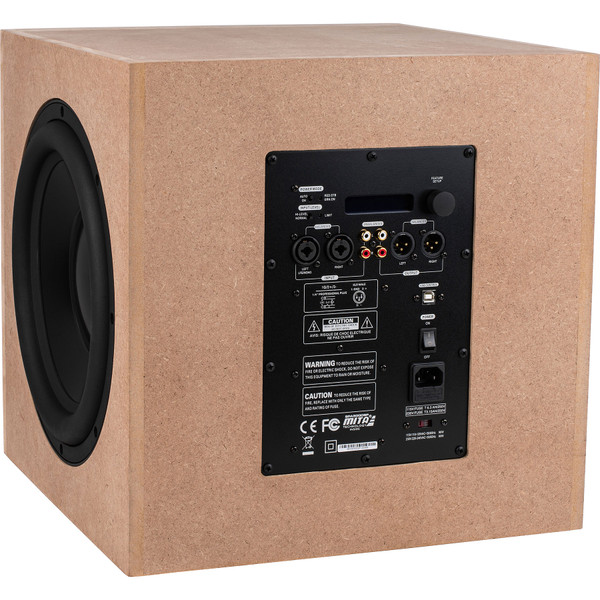

Enclosure Specifications: • Panel thickness: 3/4" • Panel material: Medium Density Fiberboard (MDF) • Finished internal cabinet volume: 1.6 cubic feet • External dimensions: 16" H x 16" W x 16" D • Completed subwoofer weight: 50 lbs. • Made in the U.S.A.

Note: Mounting screws and feet are not included.

Product Details

BrandParts Express
Model300-7154
Part Number300-7154
UPC848791005114
Weight71.2

Product Specifications

Cabinet Dimensions (HxWxD)16" x 16" x 16"
Cabinet OptionsUnfinished/Unassembled
ColorUnfinished
ConfigurationSubwoofer
Input RatingPowered
Speaker TypeSubwoofer
Woofer Diameter12"
