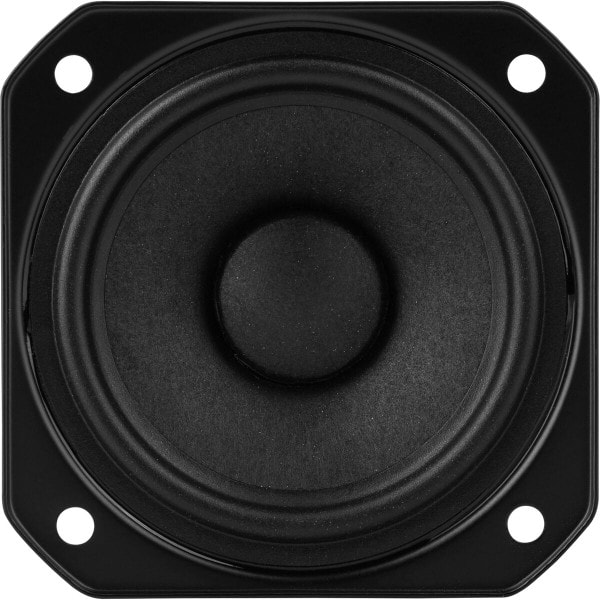

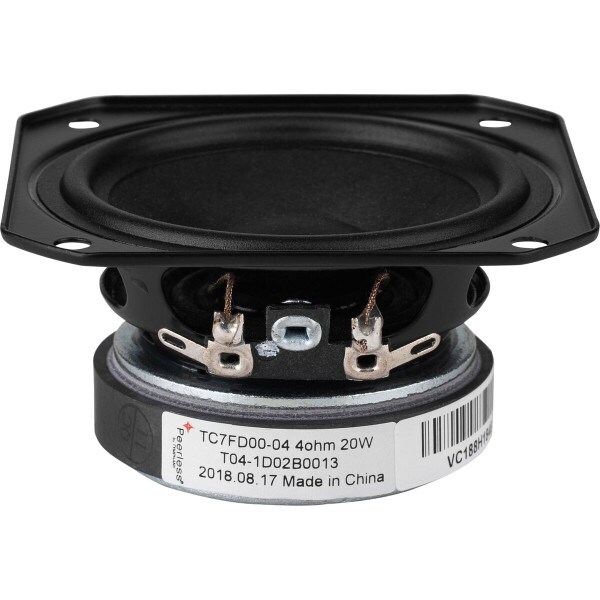

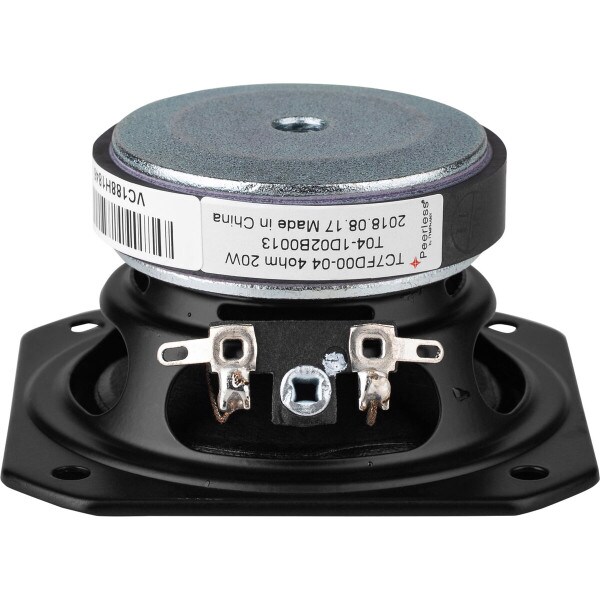

Peerless by Tymphany TC7FD00-04 2-1/2" Full Range Paper Cone Woofer 4 Ohm

Peerless by Tymphany
Part #264-1144

Peerless by Tymphany TC7FD00-04 2-1/2" Full Range Paper Cone Woofer 4 Ohm

Peerless by Tymphany
Part #264-1144
The TC7FD00-04 2-1/2" full-range speaker from Tymphany (formerly Vifa) was designed to be an economical yet great-performing choice for applications that include TVs, music player docking stations, and hi-fi line arrays.
Key Features
  • Cost-effective ceramic ferrite magnet and stamped steel frame
  • Patented NRSC PentaCut cone technology controls resonances and improves performance
  • Under-spider venting increases power handling
  • Half-roll rubber surround for unrestricted travel
  • Copper pole piece cap controls impedance and extends HF response
Your Price: $12.49
MSRP: $13.99
Save $1.50 (11%)
Bulk Pricing
Quantity:Qty: 1-9 $12.49/ea
Quantity:Qty: 10+$11.98/ea
Ships next business day. Details

589In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany TC7FD00-04 2-1/2" Full Range Paper Cone Woofer 4 Ohm

Tymphany's TC7FD00-04 2-1/2" full-range speaker brings classic hi-fi capabilities to compact music and media systems. Tymphany's patented PentaCut paper cone technology improves musicality and accuracy, and the driver features a cost-effective ceramic ferrite magnet. A copper cap on the pole piece controls system impedance, thereby extending the upper frequency range.

The TC7FD00-04 is ideally suited for use in flat panel televisions and sound bars, MP3 and cell phone docking stations, hi-fi speaker line arrays, and multimedia PCs.

Product Details

BrandPeerless by Tymphany
ModelTC7FD00-04
Part Number264-1144
UPC844632092664
Unit of MeasureEach
Weight0.4

Product Specifications

Nominal Diameter2-1/2"
Power Handling (RMS)20 Watts
Power Handling (MAX)40 Watts
Impedance4Ω
Frequency Response130 to 20,000Hz
Sensitivity82.4dB 2.83V/1m
Voice Coil Diameter0.75"

Thiele-Small Parameters

Resonant Frequency (Fs)143Hz
DC Resistance (Re)3.2Ω
Voice Coil Inductance (Le)0.02mH
Mechanical Q (Qms)3.7
Electromagnetic Q (Qes)1.22
Total Q (Qts)0.92
Compliance Equivalent Volume (Vas)0.02ft³
Mechanical Compliance of Suspension (Cms)0.75mm/N
BL Product (BL)1.97T·m
Diaphragm Mass Inc. Airload (Mms)1.64g
Maximum Linear Excursion (Xmax)1mm
Surface Area of Cone (Sd)22.1cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter2.95"
Baffle Cutout Diameter2.56"
Depth1.43"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.04ft³
Sealed F3140.4Hz
