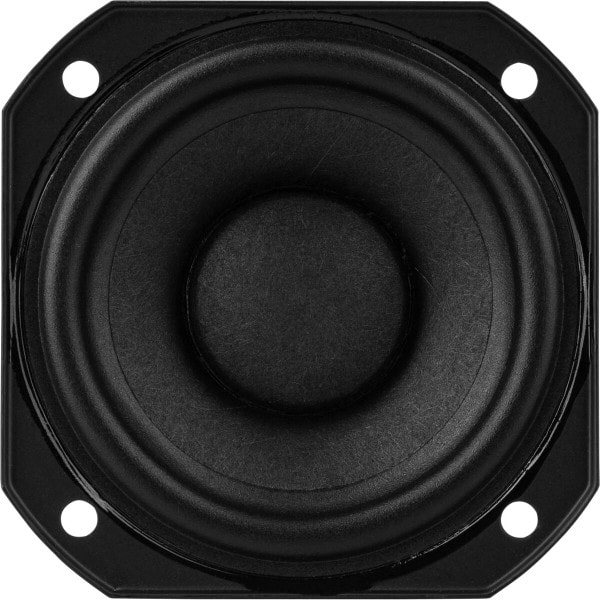

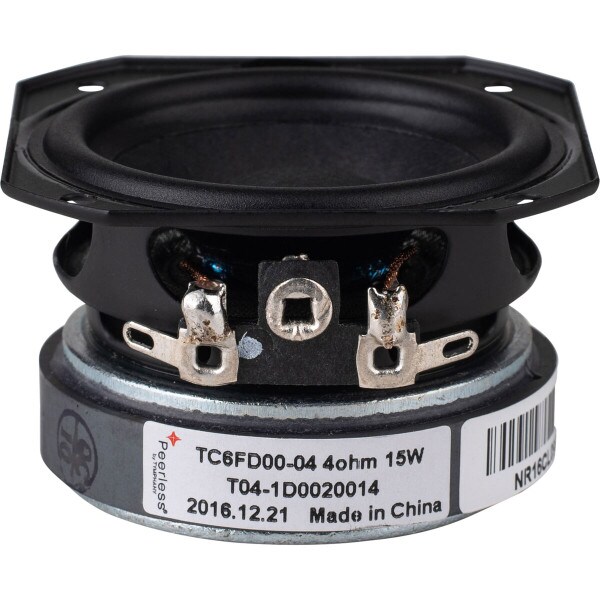

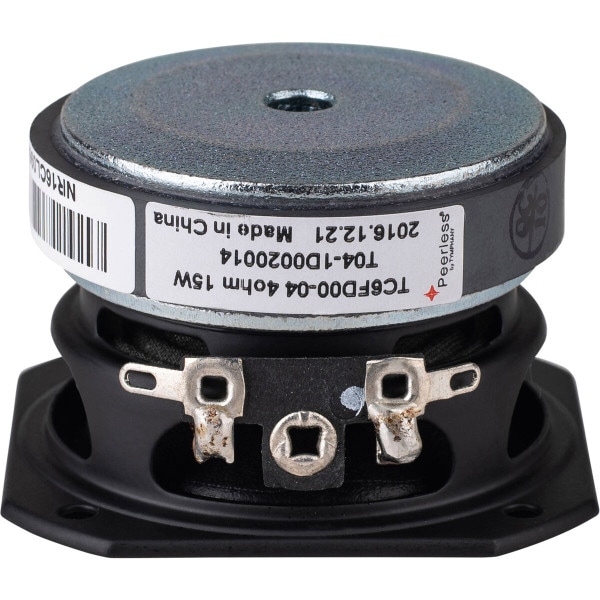

Peerless by Tymphany TC6FD00-04 2" Full Range Paper Cone Woofer 4 Ohm

Peerless by Tymphany
Part #264-1126

Peerless by Tymphany TC6FD00-04 2" Full Range Paper Cone Woofer 4 Ohm

Peerless by Tymphany
Part #264-1126
Model: TC6FD00-04
Tymphany's well-engineered yet economical TC6FD00-04 2" full-range speaker provides accurate, non-fatiguing audio reproduction.
Key Features
  • Cost-effective ceramic ferrite magnet and stamped steel frame
  • Patented NRSC PentaCut cone technology controls resonances and improves performance
  • Under-spider venting increases power handling
  • Half-roll rubber surround for unrestricted travel
  • Copper pole piece cap controls impedance and extends HF response
Your Price: $14.98
MSRP: $14.99
Save $0.01 (0%)
Bulk Pricing
Quantity:Qty: 1-3 $14.98/ea
Quantity:Qty: 4-9 $14.23/ea
Quantity:Qty: 10+$13.48/ea
Order in the next 15 hr 13 min to ship today. Details

87In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany TC6FD00-04 2" Full Range Paper Cone Woofer 4 Ohm

Tymphany's TC6FD00-04 brings classic hi-fi capabilities to compact music and media systems. Tymphany's patented PentaCut paper cone technology improves musicality and accuracy, and the driver features a cost-effective ceramic ferrite magnet. A copper cap on the pole piece controls system impedance, thereby extending the upper frequency range.

The TC6FD00-04 is ideally suited for use in flat panel televisions and sound bars, MP3 and cell phone docking stations, hi-fi speaker line arrays, and multimedia PCs.

Product Details

BrandPeerless by Tymphany
ModelTC6FD00-04
Part Number264-1126
UPC844632092589
Unit of MeasureEach
Weight0.4

Product Specifications

Nominal Diameter2"
Power Handling (RMS)15 Watts
Power Handling (MAX)30 Watts
Impedance4Ω
Frequency Response150 to 20,000Hz
Sensitivity81.5dB 2.83V/1m
Voice Coil Diameter0.75"

Thiele-Small Parameters

Resonant Frequency (Fs)175Hz
DC Resistance (Re)3.5Ω
Voice Coil Inductance (Le)0.02mH
Mechanical Q (Qms)4.1
Electromagnetic Q (Qes)1.29
Total Q (Qts)0.98
Compliance Equivalent Volume (Vas)0.008ft³
Mechanical Compliance of Suspension (Cms)0.68mm/N
BL Product (BL)1.92T·m
Maximum Linear Excursion (Xmax)1mm
Surface Area of Cone (Sd)15.2cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter2.17"
Baffle Cutout Diameter1.97"
Depth1.37"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.01ft³
Sealed F3178.1Hz
