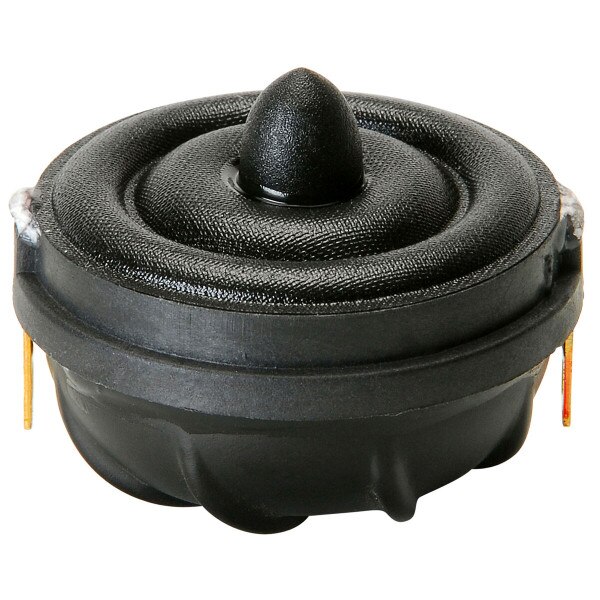

Peerless by Tymphany OT19NC00-04 3/4" Fabric Dome Tweeter 4 Ohm

Peerless by Tymphany
Part #264-1122

Peerless by Tymphany OT19NC00-04 3/4" Fabric Dome Tweeter 4 Ohm

Peerless by Tymphany
Part #264-1122
Model: OT19NC00-04
Tymphany's OT19NC00-04 tweeter employs an exclusive, patented ring radiator configuration to produce extended, wide dispersion high frequency reproduction. It is ready for custom mounting in waveguides or small enclosures.
Key Features
  • Faceplate-less design for custom mounting
  • Extended response, wide dispersion, and high efficiency
  • 3/4" textile diaphragm for articulate sound reproduction

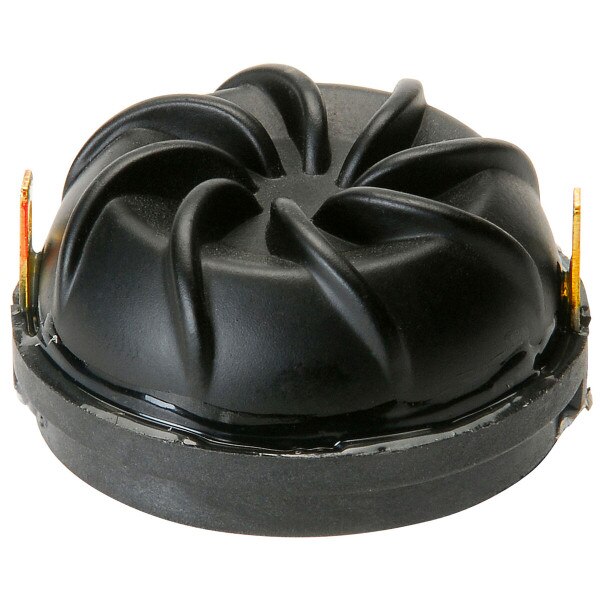

  • Rear chamber extends low frequency response
  • Self-shielding neodymium motor
Your Price: $17.07
MSRP: $29.99
Save $12.92 (43%)
Bulk Pricing
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany OT19NC00-04 3/4" Fabric Dome Tweeter 4 Ohm

The Tymphany OT19NC00-04 tweeter features a treated textile diaphragm in a ring radiator configuration. This patented design's center phase plug improves coherency and widens high frequency dispersion. Produced without faceplate to facilitate integration into compact loudspeaker systems or mounting to waveguides.

Product Details

BrandPeerless by Tymphany
ModelOT19NC00-04
Part Number264-1122
UPC844632092565
Unit of MeasureEach
Weight0.15

Product Specifications

Cone / Dome Diameter0.75"
Cutout Diameter1.22
Tweeter TypeSoft Dome
Power Handling (RMS)40 Watts
Impedance4Ω
Frequency Response2,500 to 20,000Hz
Sensitivity88.8dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)1029Hz
DC Resistance (Re)3.17Ω
Voice Coil Inductance (Le)0.01mH
Mechanical Q (Qms)7.03
Electromagnetic Q (Qes)1.56
Total Q (Qts)1.27

Mounting Information

Overall Outside Diameter1.31"
Depth0.67"
