  • Peerless by Tymphany NE25VTS-04 1" Silk Dome Tweeter

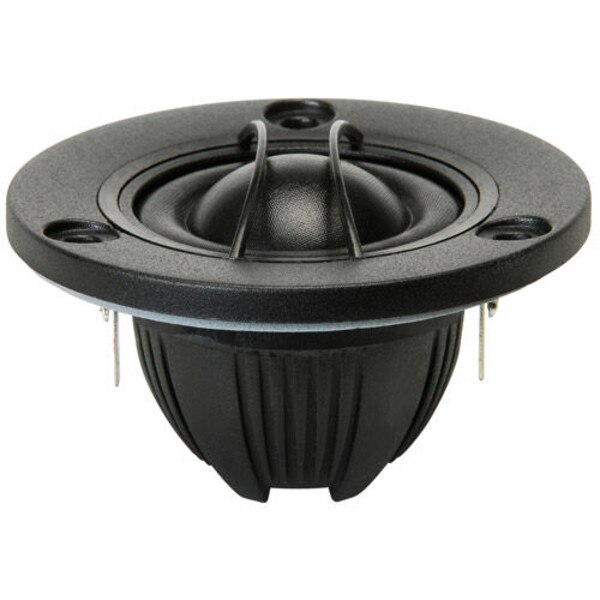

Peerless by Tymphany NE25VTS-04 1" Silk Dome Tweeter

Peerless by Tymphany
Part #264-1034

Peerless by Tymphany NE25VTS-04 1" Silk Dome Tweeter

Peerless by Tymphany
Part #264-1034
The Tymphany NE product line of tweeters has leading-edge transducer technology packaged in cutting edge, stylistic designs.
Key Features
  • 1" silk dome
  • Advanced design neo motor system
  • Copper caps reduce inductance and extend HF response

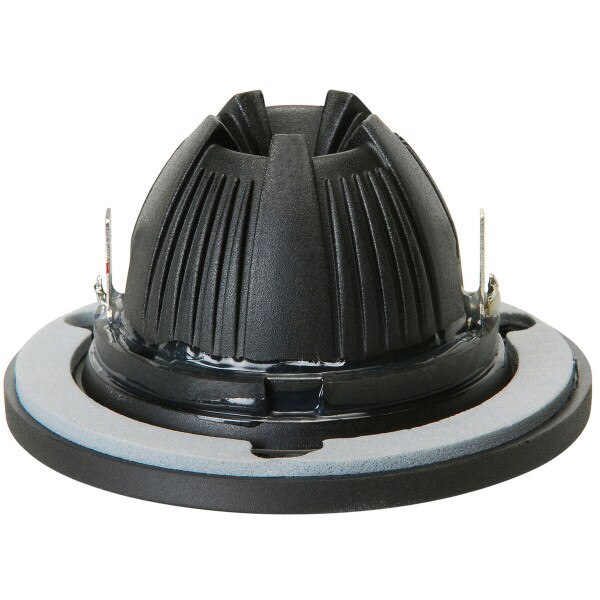

  • Aluminum rear chamber lowers resonance and doubles as a heatsink

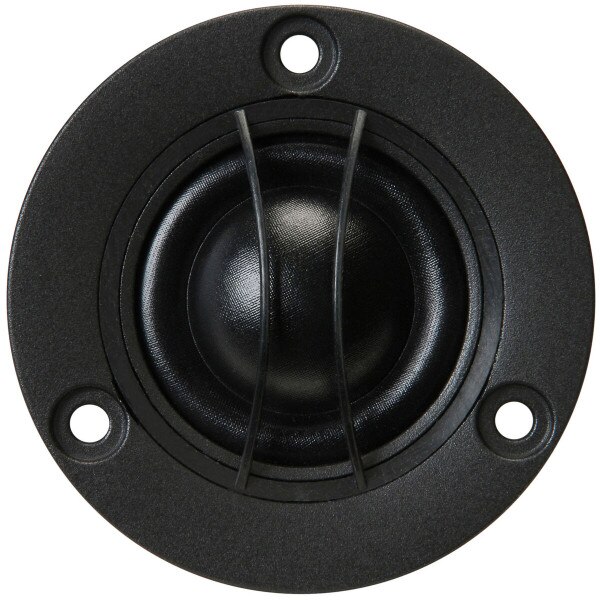

  • Aluminum face plate and plastic protective grill
Your Price: $39.29
MSRP: $48.99
Save $9.70 (20%)
Bulk Pricing
Quantity:Qty: 1-9 $39.29/ea
Quantity:Qty: 10-49 $38.00/ea
Quantity:Qty: 50+$37.25/ea
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany NE25VTS-04 1" Silk Dome Tweeter

The Tymphany NE product line of tweeters has leading-edge transducer technology packaged in cutting edge, stylistic designs. Tymphany's finite element analysis designed high power, high performance, neodymium-iron-boron (NdFeB) motor provides high output in a small footprint. Various dome materials are available for the tweeter models, including titanium, aluminum, silk, and deep-anodized aluminum. Domes sized to match 1" or 3/4" voice coils provide large linear motion and low distortion, ensuring a wide smooth frequency response that also reproduces low-level details in music. Copper caps in the motor system create a high frequency extension and lower intermodulation distortion. An aluminum rear chamber provides a very low resonance that provides very flexible system design capabilities, by keeping the resonance of the tweeter well below the tweeter crossover frequency.

Product Details

BrandPeerless by Tymphany
ModelNE25VTS-04
Part Number264-1034
UPC844632083785
Unit of MeasureEach
Weight0.25

Product Specifications

Cone / Dome Diameter1"
Cutout Diameter1.89
Tweeter TypeSoft Dome
Power Handling (RMS)80 Watts
Impedance4Ω
Frequency Response2,000 to 20,000Hz
Sensitivity91.3dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)732.9Hz
DC Resistance (Re)3.15Ω
Voice Coil Inductance (Le)0.01mH
Mechanical Q (Qms)4.41
Electromagnetic Q (Qes)1.12
Total Q (Qts)0.89

Mounting Information

Overall Outside Diameter2.59"
Depth1.22"
