Peerless by Tymphany NE123W-08 4" Full Range Woofer Speaker

Peerless by Tymphany
Part #264-1128

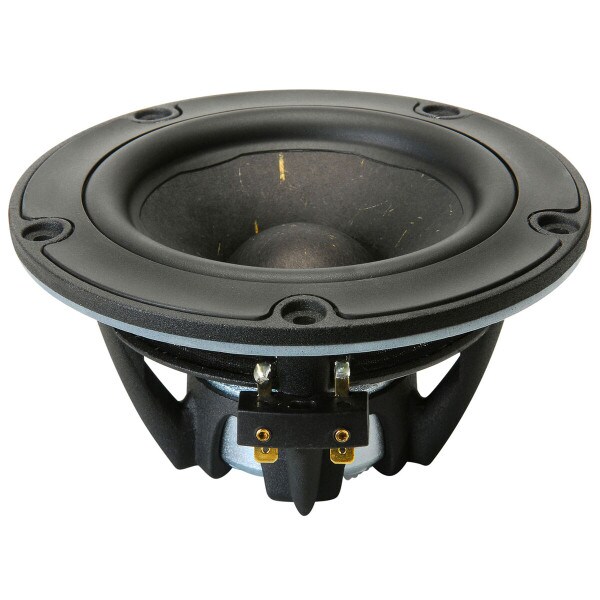

Peerless by Tymphany NE123W-08 4" Full Range Woofer Speaker

Peerless by Tymphany
Part #264-1128
Model: NE123W-08
The high fidelity/low distortion Tymphany NE123W-08 4" Neodymium Woofer utilizes advanced design and measurement technologies in combination with carefully selected construction materials.
Key Features
  • Cast aluminum frame promotes motor cooling
  • Sculpted design improves airflow and reduces reflections
  • High-strength compact neodymium magnet system
  • Proprietary coated natural wood fiber cone with half-roll rubber surround
  • Long-throw 1-1/4" voice coil on titanium former
  • Copper pole piece cap for extended HF response
  • 8 ohm nominal impedance
Your Price: $59.57
+ FREE SHIPPING
MSRP: $80.99
Save $21.42 (26%)
Bulk Pricing

Out of Stock

Ships in 90-120 days. Minimum order quantity 1,000 pcs.
Alert Me When Available
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany NE123W-08 4" Full Range Woofer Speaker

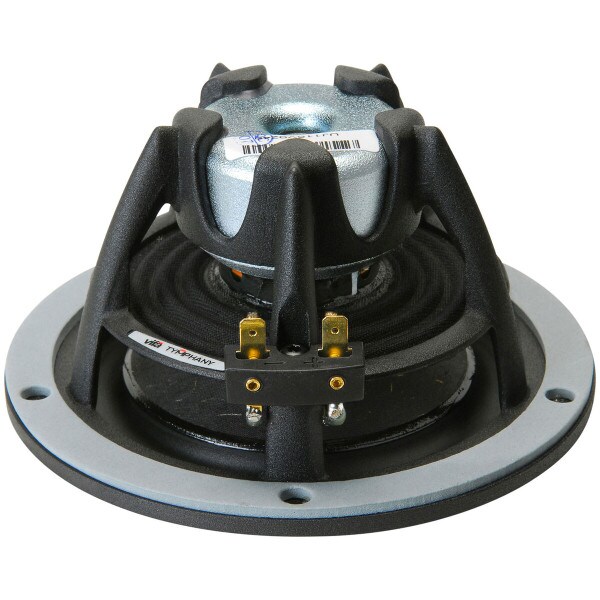

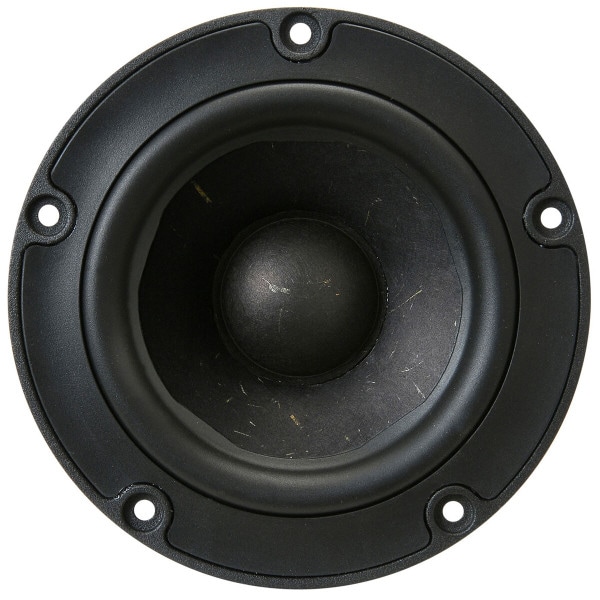

The Tymphany NE123W-08 4" Neodymium Woofer features an innovative sculpted, open cast aluminum basket design that minimizes internal acoustic reflections and supplements the neodymium motor's dedicated heat sink. The cone is constructed of a coated natural wood fiber, with a butyl rubber surround designed by finite element analysis for linearity of performance. FEA techniques also contribute to inclusion of the motor's copper cap, which reduces inductance and extends high frequency performance.

Product Details

BrandPeerless by Tymphany
ModelNE123W-08
Part Number264-1128
UPC844632092596
Unit of MeasureEach
Weight1

Product Specifications

Nominal Diameter4"
Power Handling (RMS)45 Watts
Power Handling (MAX)90 Watts
Impedance8Ω
Frequency Response60 to 8,000Hz
Sensitivity86.2dB 2.83V/1m
Voice Coil Diameter1.28"

Thiele-Small Parameters

Resonant Frequency (Fs)61Hz
DC Resistance (Re)6.3Ω
Voice Coil Inductance (Le)0.06mH
Mechanical Q (Qms)4.98
Electromagnetic Q (Qes)0.37
Total Q (Qts)0.35
Compliance Equivalent Volume (Vas)0.21ft³
Mechanical Compliance of Suspension (Cms)1.43mm/N
BL Product (BL)5.53T·m
Diaphragm Mass Inc. Airload (Mms)4.7g
Maximum Linear Excursion (Xmax)3.1mm
Surface Area of Cone (Sd)54.1cm²

Materials of Construction

Cone MaterialWood Fiber
Surround MaterialRubber
Voice Coil FormerTitanium
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter4.84"
Baffle Cutout Diameter3.86"
Depth2.58"
# Mounting Holes5

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.06ft³
Sealed F3137.9Hz
Vented Volume0.1ft³
Vented F386Hz
