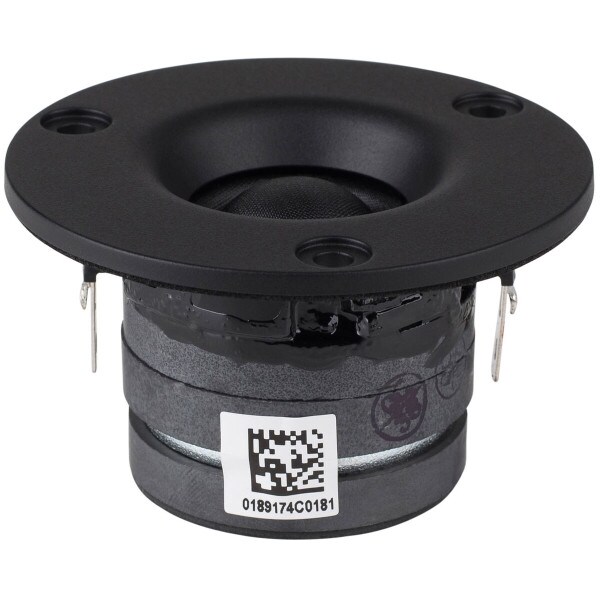

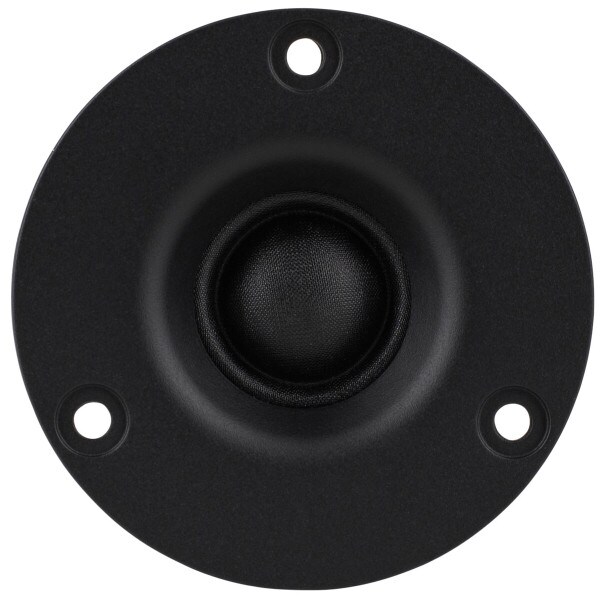

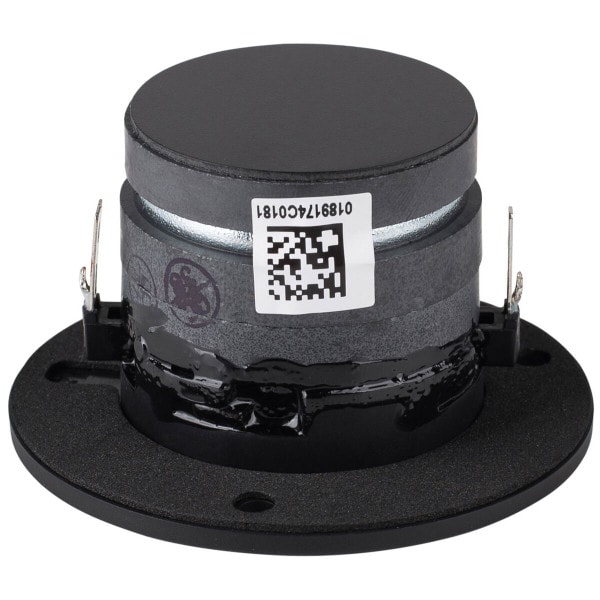

Peerless DX20BF00-04 3/4" Silk Dome Tweeter 4 Ohm

Peerless by Tymphany
Part #264-1472

Peerless DX20BF00-04 3/4" Silk Dome Tweeter 4 Ohm

Peerless by Tymphany
Part #264-1472
Model: DX20BF00-04
The compact DX20BF00-04 semi-horn loaded 3/4" silk dome tweeter from Peerless achieves a remarkably low resonant frequency for its size by using a wide surround and large resonant chamber. With smooth response and low distortion, this is an excellent choice for smaller 2-way designs and car audio systems.
Key Features
  • Triple ferrite motor improves power handling over similar neodymium designs
  • Extremely flat response from 1,500 Hz to 20,000 Hz up to 30° off axis
  • The deep magnet design creates a large resonant chamber for a lower Fs
  • Semi horn loading the dome improves efficiency and controls dispersion
Your Price: $18.98
MSRP: $18.99
Save $0.01 (0%)
Bulk Pricing
Quantity:Qty: 1-3 $18.98/ea
Quantity:Qty: 4-9 $18.03/ea
Quantity:Qty: 10+$17.08/ea
Order in the next 3 hr 53 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless DX20BF00-04 3/4" Silk Dome Tweeter 4 Ohm

For a compact design, the Peerless DX20BF00-04 3/4" silk dome tweeter delivers high performance for an outstanding value. This small tweeter manages a low resonant frequency by using a damped silk diaphragm and large surround combined with a damped resonant chamber inside the ferrite triple magnet motor. Another advantage of the ferrite motor assembly is increased power handling over similar neodymium designs by increasing heat dissipation for the vice coil. The faceplate on the DX20BF00-04 is semi horn loaded for increased efficiency and improved response up to 30° off axis.

Product Details

BrandPeerless by Tymphany
ModelDX20BF00-04
Part Number264-1472
UPC848864044842
Unit of MeasureEach
Weight0.35

Product Specifications

Cone / Dome Diameter0.75"
Cutout Diameter1.91
Tweeter TypeSoft Dome
Power Handling (RMS)60 Watts
Impedance4Ω
Frequency Response2,500 to 20,000Hz
Sensitivity86.9dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)822.1Hz
DC Resistance (Re)2.81Ω
Voice Coil Inductance (Le)0.01mH
Mechanical Q (Qms)2.24
Electromagnetic Q (Qes)2.93
Total Q (Qts)1.27

Mounting Information

Overall Outside Diameter2.6"
Depth1.38"
