  • Peerless by Tymphany 830452 10" XLS Subwoofer

NEW Peerless by Tymphany 830452 10" XLS Subwoofer

Peerless by Tymphany
Part #264-1108

NEW Peerless by Tymphany 830452 10" XLS Subwoofer

Peerless by Tymphany
Part #264-1108
Model: XLS-P830452
This series of state-of-the-art subwoofers continues to enhance Peerless's reputation for delivering the highest quality components for bass.
Key Features
  • 12.5 mm of linear excursion
  • Thick Nomex cone
  • Cast aluminum frame
  • Flat spider and HD rubber half roll surround
  • Massive stacked magnet
Similar items that may interest you:
See all items in Subwoofer Drivers
NEW $145.98
+ FREE SHIPPING
MSRP: $166.99
Save $21.01 (13%)
Bulk Pricing

Back-Ordered

Estimated back in stock 5/2/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

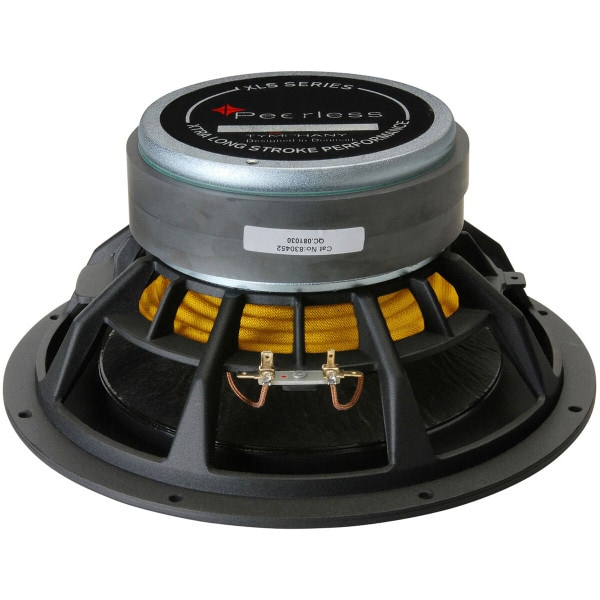

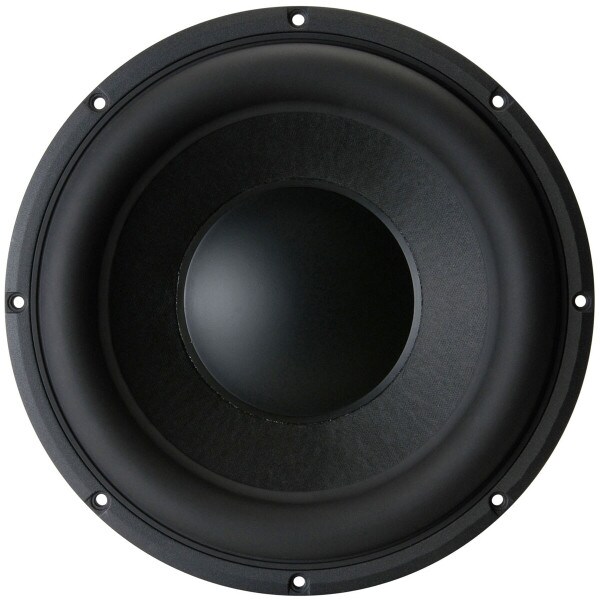

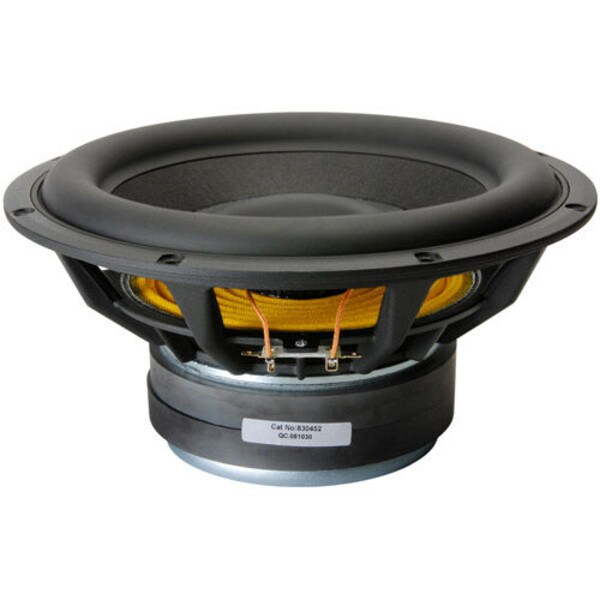

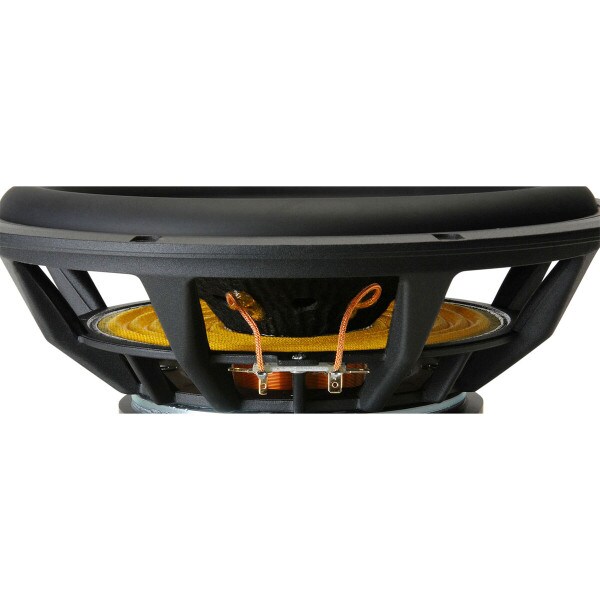

Peerless by Tymphany 830452 10" XLS Subwoofer

This series of state-of-the-art subwoofers continues to enhance Peerless's reputation for delivering the highest quality components for bass. Called the XLS—for "Extra Long Stroke"—these audio transducers add more excursion while eliminating distortion. The XLS line features a strong yet attractive cast frame, Nomex cone, flat spider, and generous under-spider venting. The magnet system incorporates multiple distortion-canceling fixtures.

Product Details

BrandPeerless by Tymphany
ModelXLS-P830452
Part Number264-1108
UPC844632084157
Unit of MeasureEach
Weight14.1

Product Specifications

Nominal Diameter10"
Power Handling (RMS)150 Watts
Power Handling (MAX)300 Watts
Impedance4Ω
Frequency Response19 to 700Hz
Sensitivity86.6dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)22Hz
DC Resistance (Re)3.6Ω
Voice Coil Inductance (Le)0.99mH
Mechanical Q (Qms)3.86
Electromagnetic Q (Qes)0.24
Total Q (Qts)0.23
Compliance Equivalent Volume (Vas)2.36ft³
Mechanical Compliance of Suspension (Cms)0.39mm/N
BL Product (BL)16.75T·m
Diaphragm Mass Inc. Airload (Mms)136.6g
Maximum Linear Excursion (Xmax)12.5mm
Surface Area of Cone (Sd)349.7cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10.59"
Baffle Cutout Diameter9.4"
Depth4.88"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Vented Volume1ft³
Vented F328.4Hz
