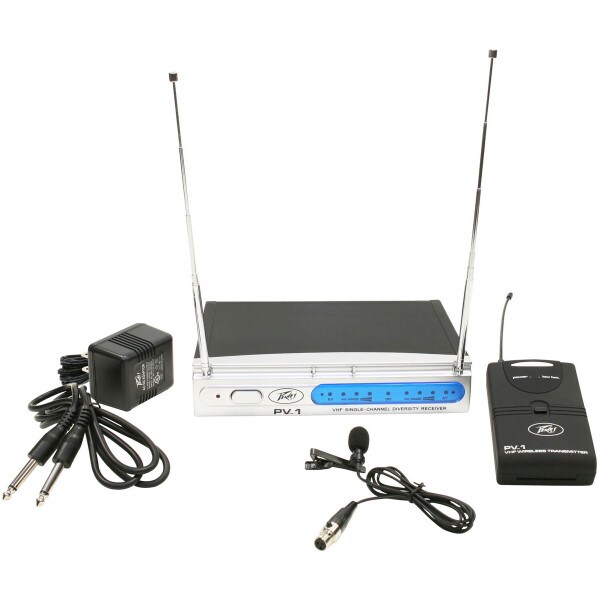

Peavey PV-1 V1 BL 203.400 MHz VHF Lavalier Wireless Microphone SystemThe PV-1 V1 wireless system by Peavey is a single channel diversity system with a receiver, bodypack transmitter, and lavalier microphone. System has an operating range of 250 feet depending on site conditions and 500+ feet in line of site. Proprietary diversity digital processing circuitry eliminates dropouts and maximizes operating range. Proprietary compander circuitry allows for an industry-best 120 dB dynamic range, and the clearest, most natural sound available. System is externally powered by AC/DC power adapter. Features a half-rack receiver design with retractable front panel dual antennas. Optional rack mount kits can be ordered for one or two receivers side-by-side. The PV-1 VHF includes a wireless receiver, wireless bodypack transmitter, lavalier microphone, AC/DC adapter, and two AA batteries. Peavey item 03010020.
Overall System Specifications
• Operating frequency: 203.400 MHz
• Frequency response: 40-20,000 Hz, ±3 dB
• Dynamic range: 120 dB
• Total harmonic distortion: <0.3%
• Frequency stability: ±0.005%, Crystal controlled
• Modulation: FM (F3E), ±20 kHz max
• Operating range: Up to 250 ft. typical (depending on site conditions); up to 500+ feet optimum line of sight
Bodypack Transmitter Specifications
• Locking mini 3-pin connector
• OFF/ON switch, input level adjust
• LED Indicator unit "ON" (single flash)
• Low battery alert (Steady)
• RF Power out 50mW (max. allowed by FCC)
• Battery: Two AA batteries
• Battery life: Up to 15 hours
• Dimensions: 4.2" x 2.5" x 0.88" (10.7 x 6.4 x 2.2 cm)
Receiver Specifications
• Reception mode: Diversity
• Controls: Power ON/OFF, volume control, mute control

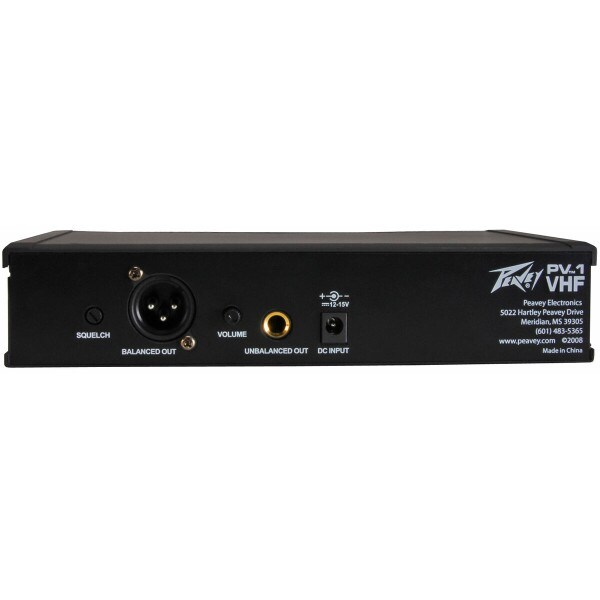

• Connectors: Balanced XLR and unbalanced adjustable 1/4" audio jacks, 2.1 mm barrel-type DC input jack
• LED Indicators: Power ON, 4 LED RF & AF level displays, A/B Diversity
• Power Requirements: 12V @ 400mA, nominal, AC/DC adapter supplied
