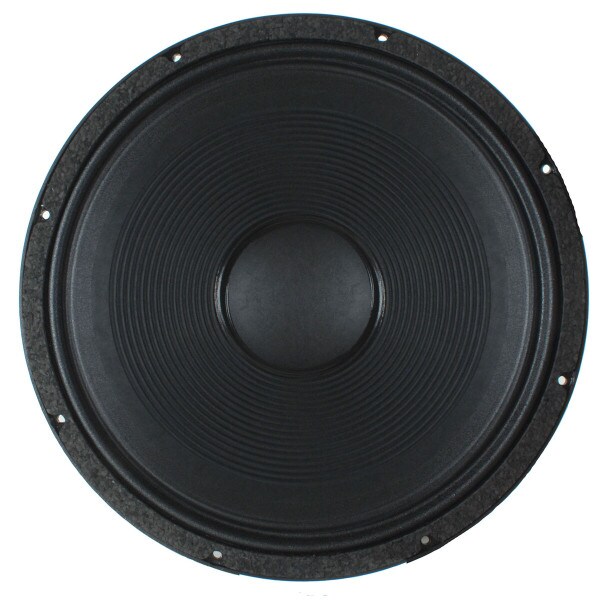

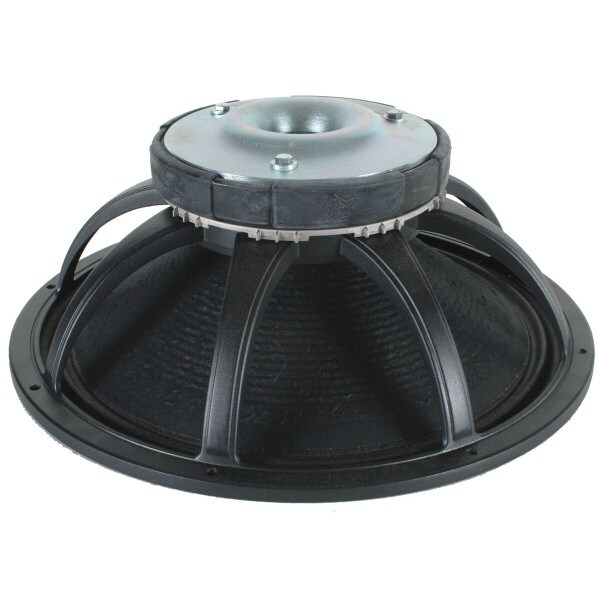

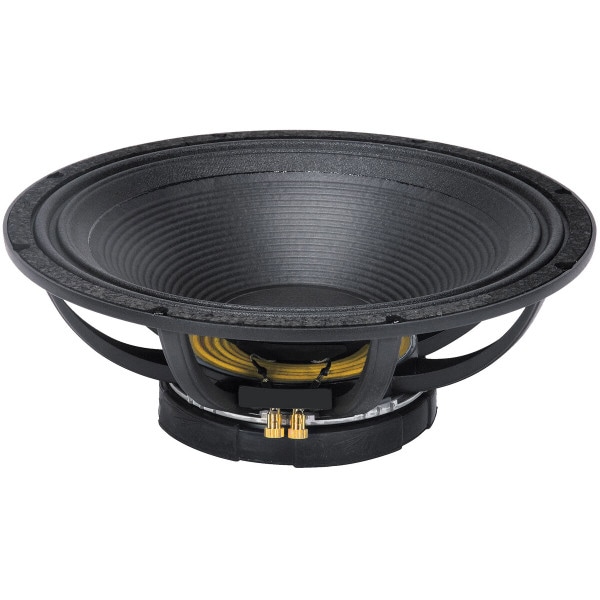

Peavey 18" Low Rider Subwoofer Speaker

Peavey
Part #294-301

Peavey 18" Low Rider Subwoofer Speaker

Peavey
Part #294-301
Model: 18" Low Rider
The Peavey Low Rider® 18" subwoofer speaker includes a Kevlar®-impregnated cone for increased strength, Kapton™ voice coil former for superior thermal capability, die-cast aluminum frame, and more.
Key Features
  • Field-replaceable die-cast aluminum basket
  • Kevlar&#174 reinforced cones for increased strength
  • Lower distortion due to greater damping of excess cone vibrations
  • Polyimide-impregnated fiberglass former for higher sensitivity and frequency response
  • 4" diameter edge-wound copper voice coil provides high power handling
  • Solderless diffusion welded OFHC copper leads ensure reliable operation
Similar items that may interest you:
See all items in Pro Woofers, Subwoofers & Midrange Speakers
Your Price: $299.99
+ FREE SHIPPING
Bulk Pricing
Order in the next 13 hr 36 min to ship today. Details

6In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peavey 18" Low Rider Subwoofer Speaker

Peavey's Low Rider® 18" 800 watt RMS subwoofer is capable of producing more bass output in a 5 cu. ft. vented box than many 18" drivers costing twice as much or more. Engineered for deep, effortless sub-bass performance and rock-solid reliability, the Low Rider is a solid choice for high volume live sound and music playback systems. Perfect for everything from concert touring systems to dance clubs to portable DJs. Huge Xmax and high power handling make this the 18" subwoofer to beat! Peavey item 00560600.

Product Details

BrandPeavey
Model18" Low Rider
Part Number294-301
UPC014367124361
Unit of MeasureEach
Weight26

Product Specifications

Nominal Diameter18"
Power Handling (RMS)800 Watts
Power Handling (MAX)3200 Watts
Impedance8Ω
Frequency Response25 to 500Hz
Sensitivity97.3dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)28.9Hz
DC Resistance (Re)6.21Ω
Voice Coil Inductance (Le)0.87mH
Mechanical Q (Qms)8.77
Electromagnetic Q (Qes)0.36
Total Q (Qts)0.34
Compliance Equivalent Volume (Vas)14.26ft³
Mechanical Compliance of Suspension (Cms)0.19mm/N
BL Product (BL)22.73T·m
Diaphragm Mass Inc. Airload (Mms)163.2g
Maximum Linear Excursion (Xmax)9.6mm
Surface Area of Cone (Sd)1237cm²

Materials of Construction

Cone MaterialPaper / Kevlar
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter18.125"
Baffle Cutout Diameter16.75"
Depth6.375"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume4ft³
Sealed F368Hz
Vented Volume6ft³
Vented F342.6Hz
