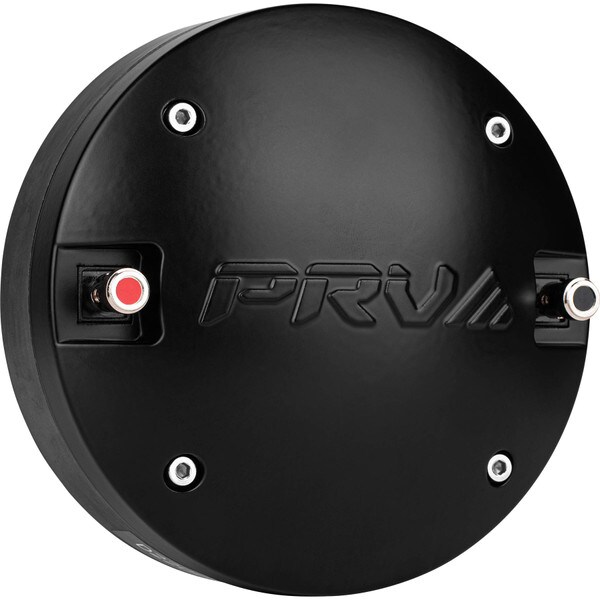

PRV Audio D2200Ph 2" Phenolic Horn Compression Driver 4-Bolt

PRV Audio
Part #294-3012

PRV Audio D2200Ph 2" Phenolic Horn Compression Driver 4-Bolt

PRV Audio
Part #294-3012
Model: D2200Ph
PRV Audio's D2200Ph 2" compression driver is a compact solution for mid-high vocal reproduction that delivers high efficiency and a smooth response from its 2" phenolic diaphragm. With incredible output and natural mid range, this horn driver perfect for any high output audio application for vocal reinforcement.
Key Features
  • Phenolic diaphragm with low mass voice coil for natural response
  • Phenolic diaphragm with low mass voice coil for natural response
  • Compact driver design keeps installation easy in tight spaces
  • Wide 500 to 9,000 Hz response covers the majority of the vocal range
Your Price: $59.91
+ FREE SHIPPING
MSRP: $74.89
Save $14.98 (20%)
Bulk Pricing
Ships next business day. Details

In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio D2200Ph 2" Phenolic Horn Compression Driver 4-Bolt

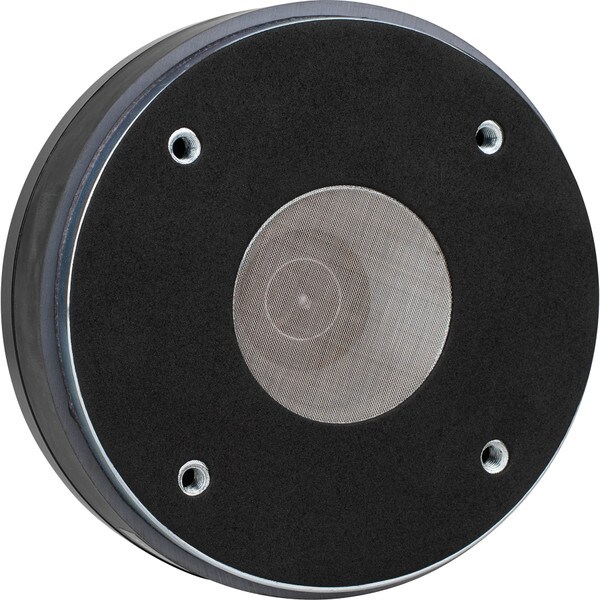

High output mobile audio enthusiasts choose PRV Audio's D2200Ph 2" compression driver for extreme SPL car audio competitions, while DJs use it in high SPL speaker cabinets for entertaining huge crowds. The naturally damped phenolic diaphragm is driven by a 2" diameter CCAW voice coil with Kapton former to handle up to 100 watts RMS (recommended 500 Hz, 12 dB/octave high pass crossover). The high power handling combined with an amazing 109 dB sensitivity gives the D2200Ph incredible output capability and allows it to be used in even the loudest of environments. In addition, at only 5-1/4" diameter this driver is perfect for use in situations where space is at a minimum.

Specifications: • Power handling: 100 watts RMS, 200 watts peak (with 500 Hz, 12dB/octave high pass crossover) • Impedance: 8 ohms • Frequency response: 500-9,000 Hz • Sensitivity: 109 dB 2.83V/1m • Dimensions: 5.24" dia. x 2.58" depth.

Product Details

BrandPRV Audio
ModelD2200Ph
Part Number294-3012
UPC602938022774
Unit of MeasureEach
Weight6.7

Product Specifications

Diaphragm MaterialPhenolic
Exit Diameter2"
Mounting Type4-Bolt
Power Handling (RMS)100 Watts
Impedance8Ω
