  • PRV Audio 6MR500-NDY 6-1/2" Neodymium Midrange Woofer 8 Ohm

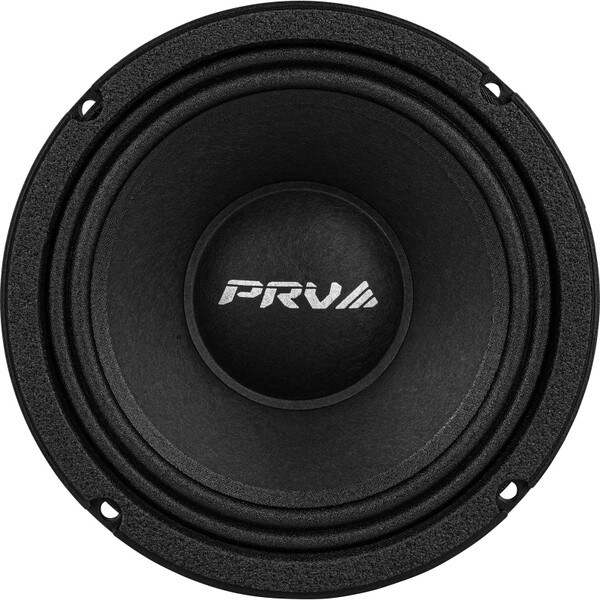

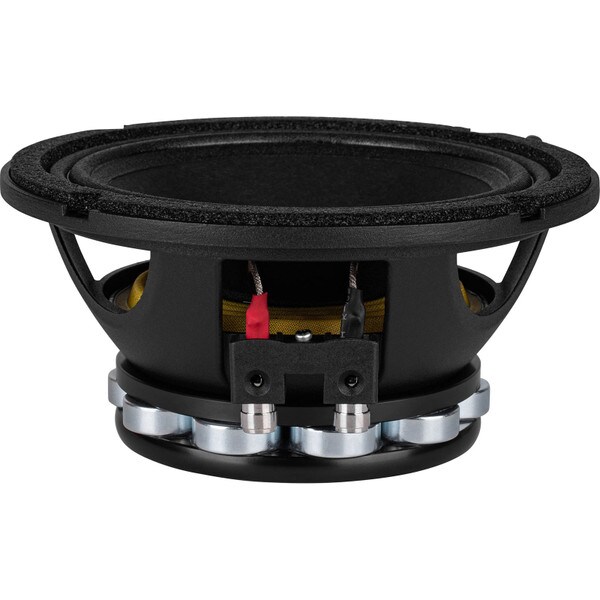

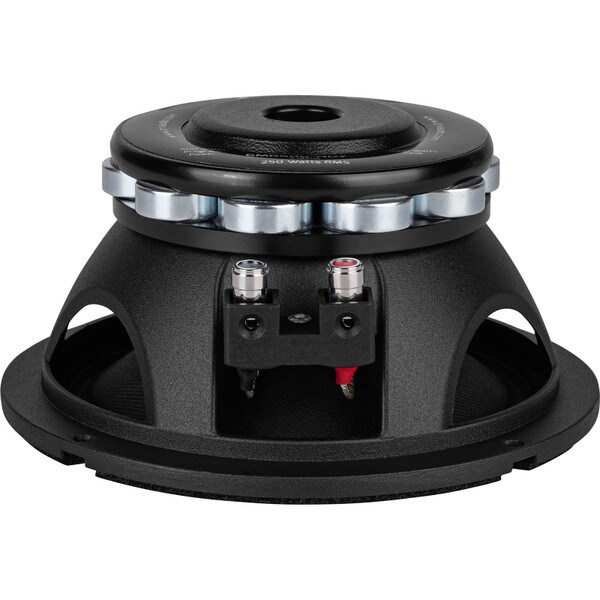

PRV Audio 6MR500-NDY 6-1/2" Neodymium Midrange Woofer 8 Ohm

PRV Audio
Part #294-2707

PRV Audio 6MR500-NDY 6-1/2" Neodymium Midrange Woofer 8 Ohm

PRV Audio
Part #294-2707
Model: 6MR500-NDY
Built for loud, clear vocal performance in tight, compact spaces, PRV Audio's 6MR500-NDY neodymium-powered midrange features a sensitivity of 96 dB (2.83V/1m) and weighs about 3 pounds!
Key Features
  • Neodymium radial slug motor design for extreme speaker control
  • High EBP for horn-loaded enclosures
  • Low inductance for great transients and high frequency responce
  • Naturally damped response for reduced top-octave ringing
  • Full copper sleeve on the pole-piece for low distortion and inductance
Similar items that may interest you:
See all items in Pro Woofers, Subwoofers & Midrange Speakers
Your Price: $129.91
+ FREE SHIPPING
MSRP: $162.39
Save $32.48 (20%)
Bulk Pricing
Order in the next 9 hr 13 min to ship today. Details

15In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 6MR500-NDY 6-1/2" Neodymium Midrange Woofer 8 Ohm

The 6MR500-NDY, from PRV Audio, is made to be a class-leading midrange woofer in the pro audio realm, as well as high output car and home audio, thanks to high-power neodymium radial slugs that immerse the voice coil in a strong magnetic field.

Not only does the unique motor design keep the mounting depth at less than 3" (great for car doors), it provides superior speaker control for reduced distortion. Also, a copper sleeve is included on the pole piece which reduces inductance to improve the high frequency response. With a usable, extended frequency response from 105 to 12,500 Hz, this midwoofer also works great as a high output, full-range satellite speaker.

A bumped backplate, vented pole piece, vented magnet assembly, Kapton® former, open cast-aluminum frame, and treated-cloth surround allow for high power handling, while protecting this driver from extreme transient power peaks.

Product Details

BrandPRV Audio
Model6MR500-NDY
Part Number294-2707
UPC799928734363
Unit of MeasureEach
Weight3.65

Product Specifications

Nominal Diameter6-1/2"
Power Handling (RMS)250 Watts
Power Handling (MAX)500 Watts
Impedance8Ω
Frequency Response105 to 12,500Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)104.6Hz
DC Resistance (Re)6.2Ω
Voice Coil Inductance (Le)0.12mH
Mechanical Q (Qms)22.73
Electromagnetic Q (Qes)0.54
Total Q (Qts)0.53
Compliance Equivalent Volume (Vas)0.18ft³
BL Product (BL)9.84T·m
Diaphragm Mass Inc. Airload (Mms)12.88g
Maximum Linear Excursion (Xmax)4.22mm
Surface Area of Cone (Sd)143cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter6.43" across the flats, 7.08"
Baffle Cutout Diameter5.71"
Depth2.95"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.2ft³
Sealed F3156.2Hz
Vented Volume0.4ft³
Vented F380.5Hz
