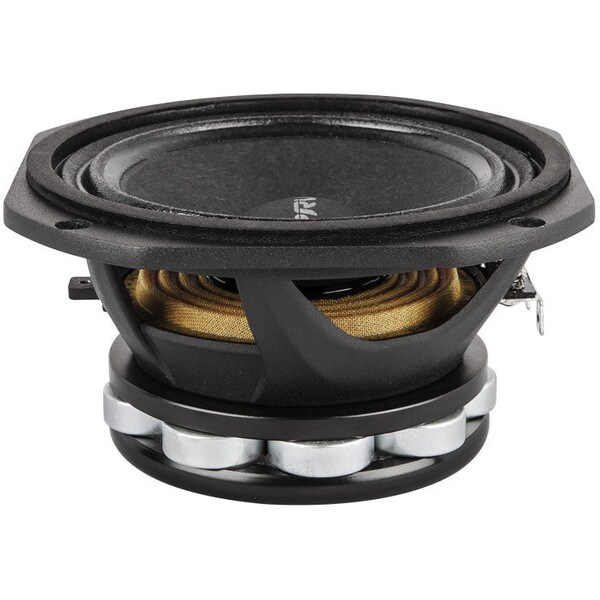

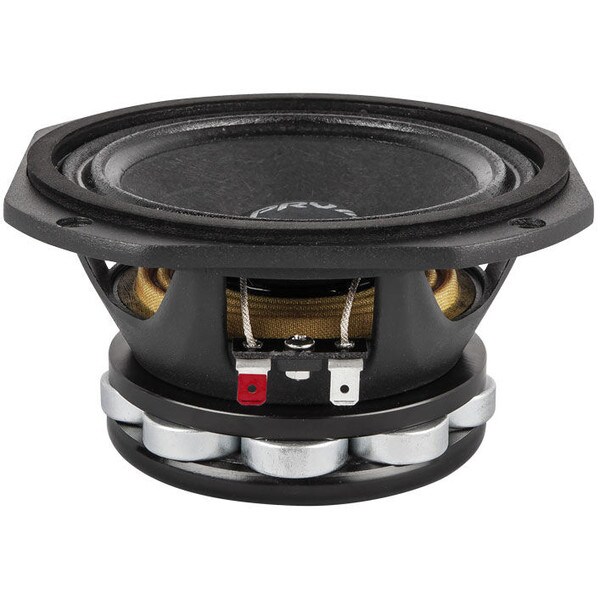

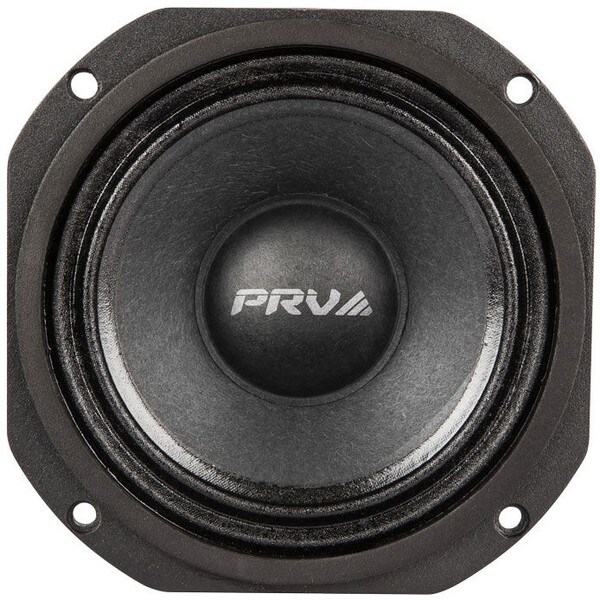

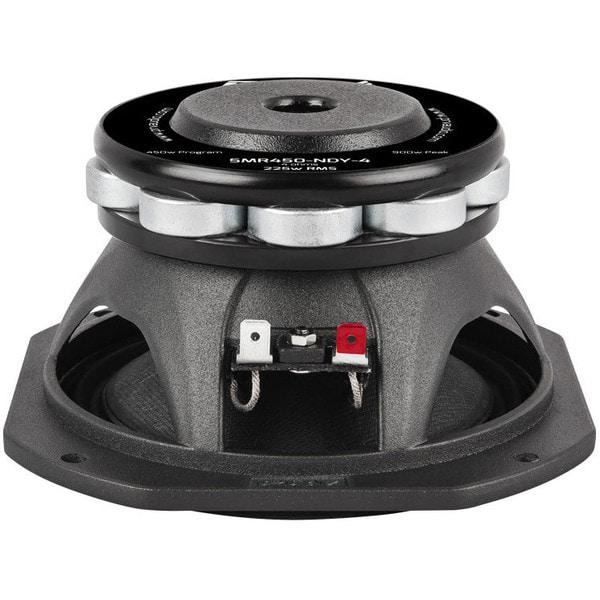

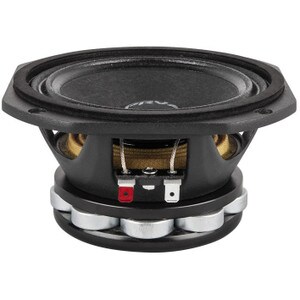

PRV Audio 5MR450-NDY-4 5" Midrange Neodymium Woofer 4 Ohm

PRV Audio
Part #294-2704

PRV Audio 5MR450-NDY-4 5" Midrange Neodymium Woofer 4 Ohm

PRV Audio
Part #294-2704
Model: 5MR450-NDY-4
PRV Audio's 5MR450-NDY-4 neodymium-powered midrange speaker features a sensitivity of 95 dB (2.83V/1m), weighs less than 3 pounds, and its 140 to 16,000 Hz frequency response allows it to be used in full range, single driver applications!
Key Features
  • Vented neodymium radial slug motor design for extreme speaker control
  • Full copper sleeve on the pole-piece for low distortion and inductance
  • Wide bandwidth that reaches out to 16 kHz and higher
  • Naturally damped response for reduced top-octave ringing
  • Low inductance for great transients and extended high frequency response
  • High EBP for horn-loaded enclosures
Your Price: $99.91
+ FREE SHIPPING
MSRP: $124.89
Save $24.98 (20%)
Bulk Pricing
Ships next business day. Details

19In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 5MR450-NDY-4 5" Midrange Neodymium Woofer 4 Ohm

The 5MR450-NDY-4, from PRV Audio, is built from the ground up to be a class-leading 5" midrange for pro audio, high output car audio, and high fidelity home audio applications. Its high-powered neodymium radial slugs immerse the voice coil in a strong magnetic field, providing extreme control and high senstivity.

Not only does the unique motor design keep the mounting depth at less than 3" (great for car doors), it also reduces distortion. Additionally, the pole piece includes a copper copper sleeve which reduces inductance to improve high frequency response. With a usable, extended frequency response from 160 to 16,000 Hz, this midwoofer also works great as a high output, full range satellite speaker.

A bumped backplate, vented pole piece, vented magnet assembly, Kapton® former, open cast-aluminum frame, and treated-cloth surround allow for high power handling, while protecting this driver from extreme transient power peaks.

Product Details

BrandPRV Audio
Model5MR450-NDY-4
Part Number294-2704
UPC799928734356
Unit of MeasureEach
Weight2.9

Product Specifications

Nominal Diameter5"
Power Handling (RMS)225 Watts
Power Handling (MAX)450 Watts
Impedance4Ω
Frequency Response160 to 16,000Hz
Sensitivity94dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)149.5Hz
DC Resistance (Re)3.7Ω
Voice Coil Inductance (Le)0.02mH
Mechanical Q (Qms)20.74
Electromagnetic Q (Qes)0.5
Total Q (Qts)0.49
Compliance Equivalent Volume (Vas)0.56ft³
Mechanical Compliance of Suspension (Cms)0.123mm/N
BL Product (BL)7.94T·m
Diaphragm Mass Inc. Airload (Mms)9.14g
Maximum Linear Excursion (Xmax)3.3mm
Surface Area of Cone (Sd)95cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter5.18" across the flats, 5.79"
Baffle Cutout Diameter4.72"
Depth2.6"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.3ft³
Sealed F3243.8Hz
Vented Volume0.4ft³
Vented F3164.5Hz
