  • PRV Audio 18SW3600 18" Professional Subwoofer Driver 8 Ohm

PRV Audio 18SW3600 18" Professional Subwoofer Driver 8 Ohm

PRV Audio
Part #294-2982

PRV Audio 18SW3600 18" Professional Subwoofer Driver 8 Ohm

PRV Audio
Part #294-2982
Model: 18SW3600

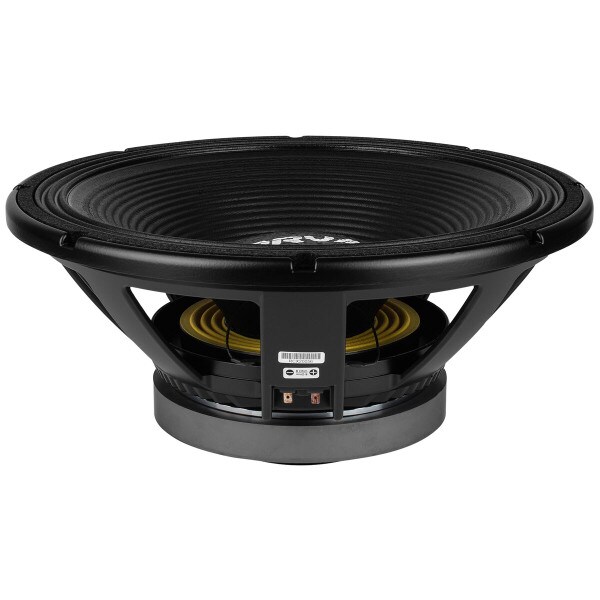

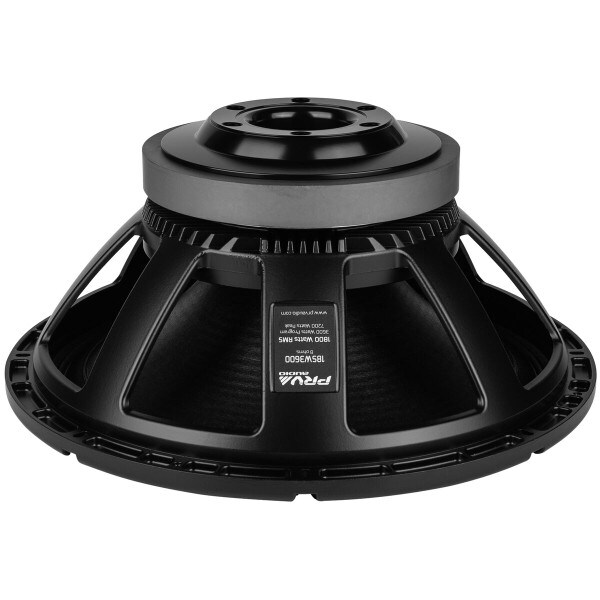

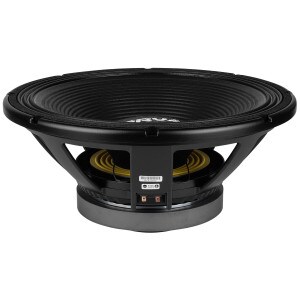

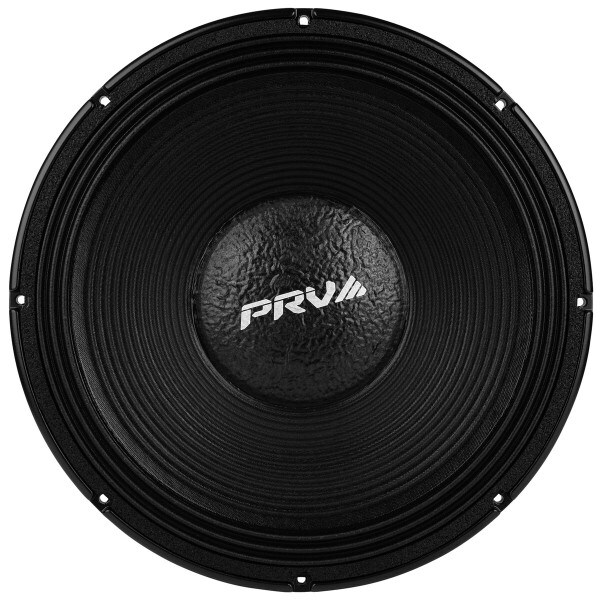

The PRV 18SW3600 features 4.5" inner and outer wound voice coil wrapped on a fiberglass fiber former that allows for a high power handling. The powerful optimized ferrite motor, ribbed, waterproof paper cone are all specially designed to provide powerful and accurate sub-bass frequencies with low distortion and low power compression.
Key Features
  • Double silicone spider suspension
  • Optimized ferrite motor assembly
  • Impressive 97 dB sensitivity
  • Waterproof, ribbed paper cone
Similar items that may interest you:
Your Price: $289.91
+ FREE SHIPPING
MSRP: $437.39
Save $147.48 (34%)
Bulk Pricing
Ships next business day. Details

14In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

PRV Audio 18SW3600 18" Professional Subwoofer Driver 8 Ohm

Thanks to the optimized ferrite motor assembly of 30 mm, the 18SW3600 is lighter than a comparable ferrite driver at this power handling, making it perfect for mobile DJs and portable PA systems where the highest power handling is wanted with minimum weight.

A double silicon spider system ensures excellent control during large excursions of 54 mm peak-to-peak excursion before damage. A fully optimized T-pole design generates the minimum amount of flux modulation. The new dual forced cooling system guarantees a very efficient voice coil ventilation for minimum power compression and incredible power handling.

Product Details

BrandPRV Audio
Model18SW3600
Part Number294-2982
UPC602938021760
Unit of MeasureEach
Weight37.35

Product Specifications

Nominal Diameter18"
Power Handling (MAX)3600 Watts
Impedance
Frequency Response35 to 1,300Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter4.5"

Thiele-Small Parameters

Resonant Frequency (Fs)35.4Hz
DC Resistance (Re)5.5Ω
Voice Coil Inductance (Le)3.06mH
Mechanical Q (Qms)9.64
Electromagnetic Q (Qes)0.42
Total Q (Qts)0.4
Compliance Equivalent Volume (Vas)7.04ft³
Mechanical Compliance of Suspension (Cms)0.079mm/N
BL Product (BL)27.11T·m
Diaphragm Mass Inc. Airload (Mms)254g
Maximum Linear Excursion (Xmax)13.25mm
Surface Area of Cone (Sd)1340cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter18.321"
Baffle Cutout Diameter16.67"
Depth7.64"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume3ft³
Sealed F370.5Hz
Vented Volume6ft³
Vented F338Hz
