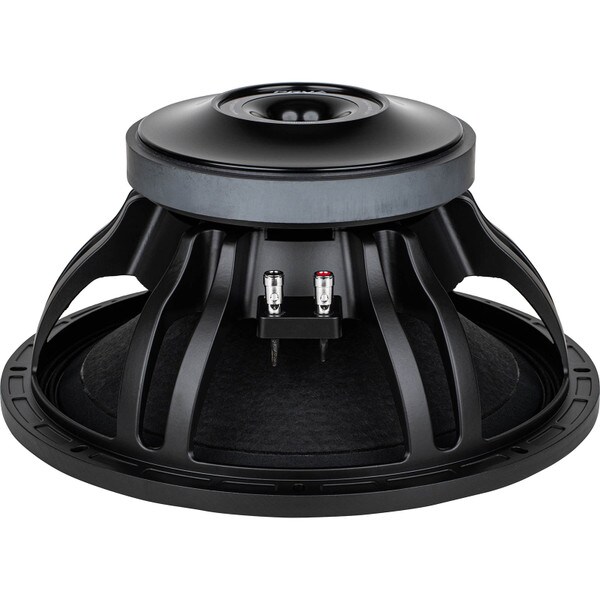

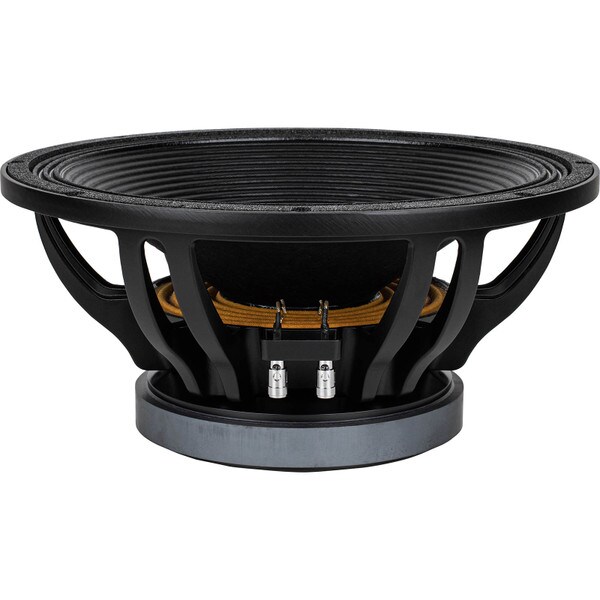

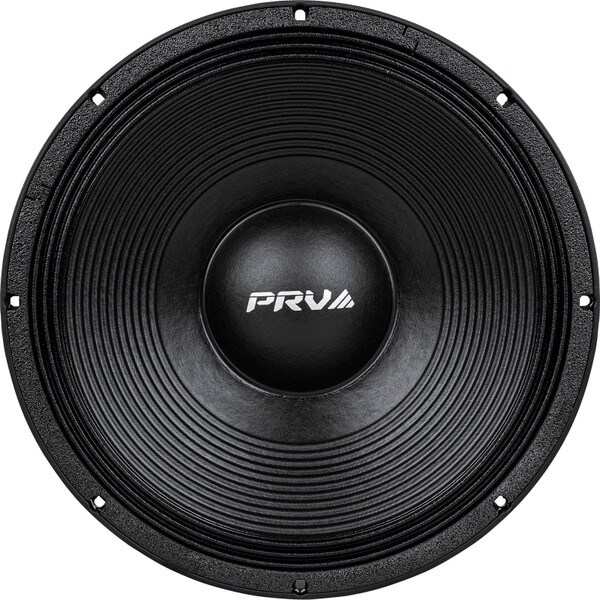

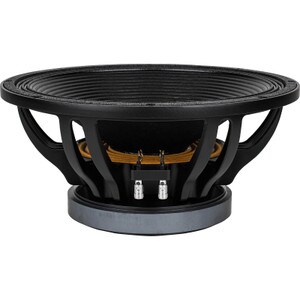

PRV Audio 15SW2000-4 15" Cast Frame Subwoofer 4 Ohm

PRV Audio
Part #294-3240

PRV Audio 15SW2000-4 15" Cast Frame Subwoofer 4 Ohm

PRV Audio
Part #294-3240
Model: 15SW2000-4
The 15SW2000-4 15" professional subwoofer from PRV Audio uses a split coil and powerful motor to deliver high excursion with excellent efficiency. This driver has the ability to provide an incredible punch to high power pro audio systems. The 15SW2000-4 loudspeaker has a very well-designed forced cooling system to ensure proper air ventilation for extended play.
Key Features
  • Provides 96 dB 1W/1m efficiency for high impact output capability
  • 4" diameter split winding voice coil features a generous 31 mm length for extended Xmax
  • Double silicone spider with optimized compliance and triple roll cloth surround keeps excursion linear
  • Forced air ventilation ensures proper cooling to handle 1,000 watts RMS for long hard play
  • Can be used in less-than-optimal situations thanks to the weather-resistant paper cone and dust cap
Your Price: $189.91
+ FREE SHIPPING
MSRP: $237.39
Save $47.48 (20%)
Bulk Pricing
Ships next business day. Details

Only 3 In Stock

More due any day
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 15SW2000-4 15" Cast Frame Subwoofer 4 Ohm

The 15SW2000-4 15" professional subwoofer from PRV Audio uses a split coil and powerful motor to deliver high excursion with excellent efficiency. It is built to deliver an incredible punch to high power pro audio systems. The 15SW2000-4 driver has an optimized forced cooling system to ensure proper air ventilation for extended play. The woven surround keeps excursion linear along its impressive 12.5 mm Xmax.

The enhanced voice coil and cone material along with its ability to reproduce extremely low frequencies will ensure this is your subwoofer of choice from now on. The large 4" voice coil accepts the abuse of higher power systems while staying cool with the side forced air cooling system.

Product Details

BrandPRV Audio
Model15SW2000-4
Part Number294-3240
UPC799928734462
Unit of MeasureEach
Weight29.2

Product Specifications

Nominal Diameter15"
Power Handling (RMS)1000 Watts
Power Handling (MAX)2000 Watts
Impedance4Ω
Frequency Response45 to 2,300Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)52.9Hz
DC Resistance (Re)5.5Ω
Voice Coil Inductance (Le)1.51mH
Mechanical Q (Qms)17.11
Electromagnetic Q (Qes)0.45
Total Q (Qts)0.44
Compliance Equivalent Volume (Vas)2.98ft³
Mechanical Compliance of Suspension (Cms)0.069mm/N
BL Product (BL)23.19T·m
Diaphragm Mass Inc. Airload (Mms)169.1g
Maximum Linear Excursion (Xmax)12.5mm
Surface Area of Cone (Sd)935cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter15.47"
Baffle Cutout Diameter13.98"
Depth7.68"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.88ft³
Sealed F395.6Hz
Vented Volume3.75ft³
Vented F348.3Hz
