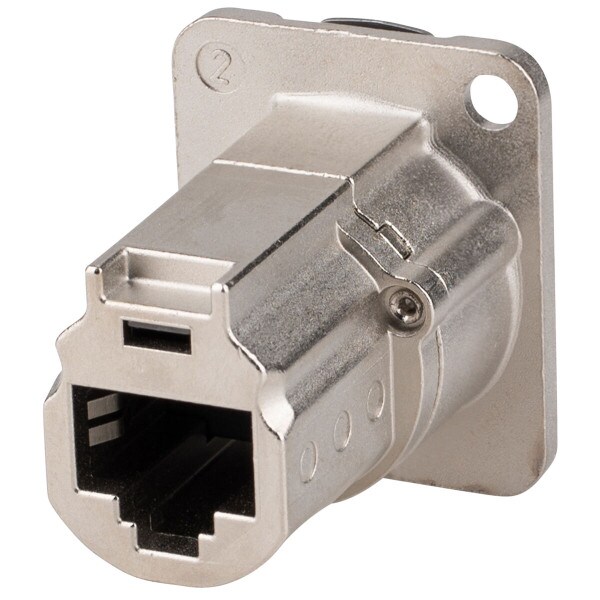

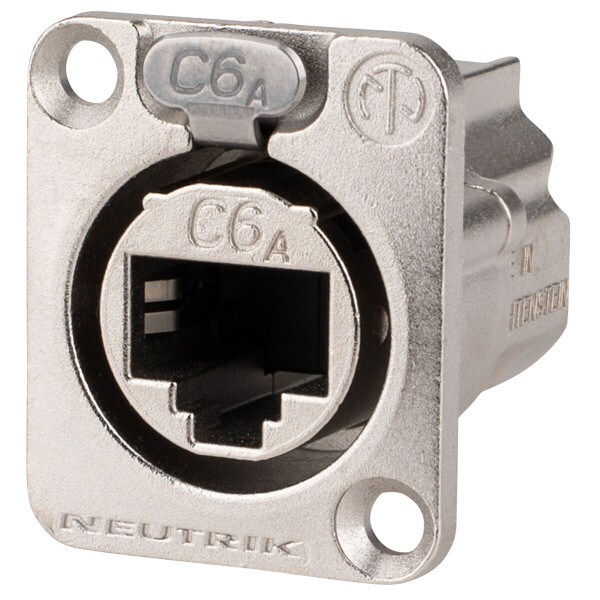

The Neutrik NE8FDX-P6 is a panel mount RJ45 Cat 6a feed-thru receptacle. With a D-shape metal flange and secure locking system, this connector is shielded to provide high noise immunity and EMI protection. Cat 6a specification to TIA / EIA 568-C.2, ISO / IEC 11801. PoE+ compliant according to 802.3at Type 2.
NOTE: This connector WILL intermate with etherCON Cat 5 products, but WILL NOT intermate with Cat 6 connector NE8MC6-MO or NKE6S* cables.
The etherCON Series by Neutrik is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels for the entertainment industry. The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.
Product Details | |
|---|---|
| Brand | Neutrik |
| Model | NE8FDX-P6 |
| Part Number | 092-1818 |
| Unit of Measure | Each |
| Weight | 0.04 |
