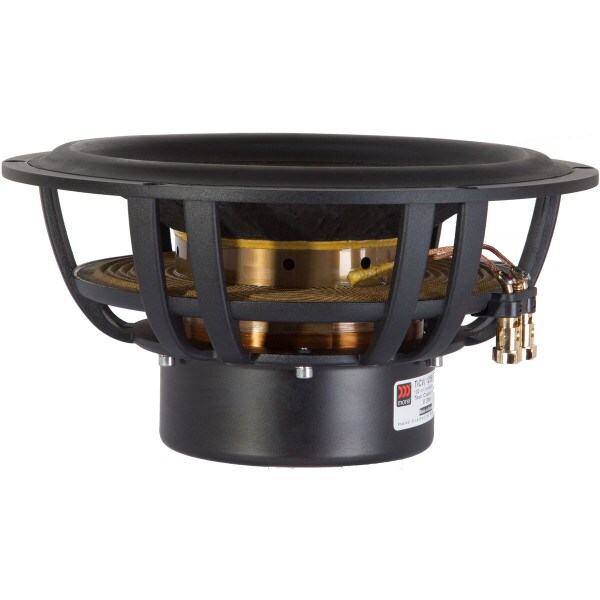

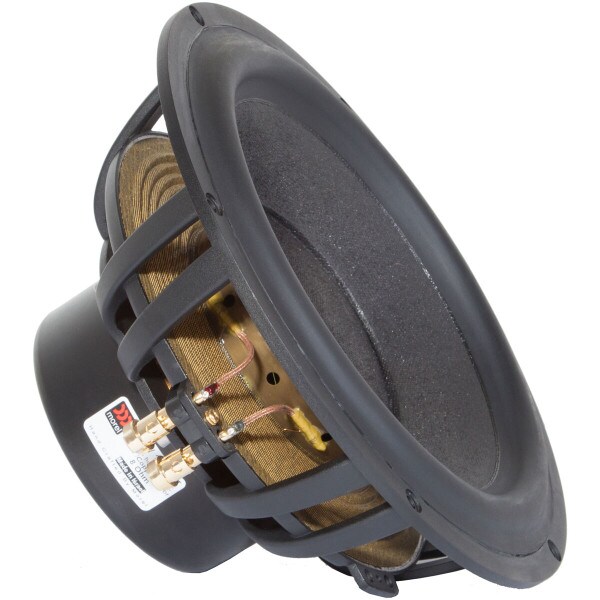

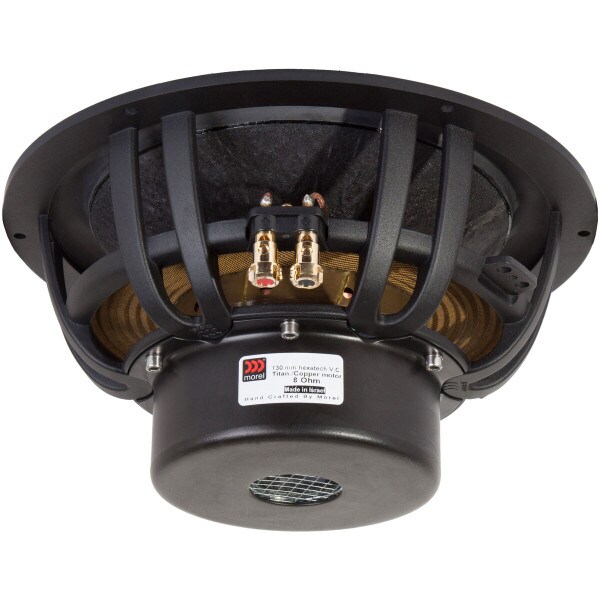

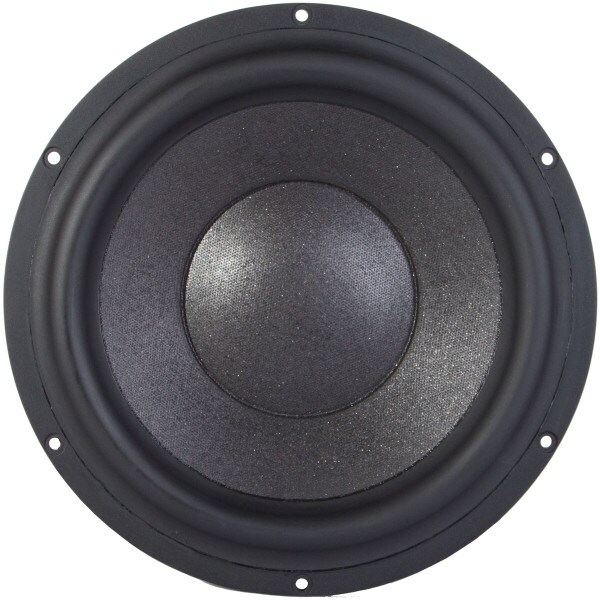

Morel TiCW 1258Ft Titanium Series 12" Subwoofer 8 Ohm

Morel
Part #297-110

Morel TiCW 1258Ft Titanium Series 12" Subwoofer 8 Ohm

Morel
Part #297-110
Model: TiCW 1258Ft
Morel applied their years of experience and creative genius to produce a world-beating sub-bass driver…the Titanium Ultimate 12" subwoofer.
Key Features
  • Copper-sleeved pole piece and titanium former reduce speed-depleting inductance
  • 8 ohm impedance for a high damping factor and more amplifier control
  • 5.1" Hexatech voice coil for 600 watts RMS power handling
  • Accucenter self-centering, one-piece paper cone assembly
Your Price: $809.00
+ FREE SHIPPING
MSRP: $1,048.99
Save $239.99 (23%)
Bulk Pricing
Ships next business day. Details

Only 2 In Stock

More due any day
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Morel TiCW 1258Ft Titanium Series 12" Subwoofer 8 Ohm

To create their Titanium Ultimate high fidelity 12" subwoofer, Morel began with an extra-large, 5.1" diameter, Hexatech™ aluminum voice coil wound on a vented titanium former. Moving this beast requires huge amounts of magnetic force, so to do so Morel uses a high flux double magnet system.

Speed-robbing energy storage is reduced to an insanely low 0.62 mH through the combination of the titanium former and a copper-sleeved pole piece. Trapped air within the subwoofer is virtually inexistent due to the Uniflow™ cast aluminum chassis, which works with the Accucenter™ self-centering cone assembly to reduce distortion and the effects of power compression.

Product Details

BrandMorel
ModelTiCW 1258Ft
Part Number297-110
UPC848864016306
Unit of MeasureEach
Weight17.6

Product Specifications

Nominal Diameter12"
Power Handling (RMS)600 Watts
Power Handling (MAX)3000 Watts
Impedance8Ω
Frequency Response19 to 2,000Hz
Sensitivity88dB 2.83V/1m
Voice Coil Diameter5.1"

Thiele-Small Parameters

Resonant Frequency (Fs)19Hz
DC Resistance (Re)6.4Ω
Voice Coil Inductance (Le)0.62mH
Mechanical Q (Qms)4.03
Electromagnetic Q (Qes)0.38
Total Q (Qts)0.34
Compliance Equivalent Volume (Vas)6.02ft³
BL Product (BL)15.25T·m
Diaphragm Mass Inc. Airload (Mms)110g
Maximum Linear Excursion (Xmax)10.5mm
Surface Area of Cone (Sd)437cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Voice Coil FormerTitanium
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12.00"
Baffle Cutout Diameter10.60"
Depth5.9"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.6ft³
Sealed F344.3Hz
Vented Volume2.37ft³
Vented F324Hz
