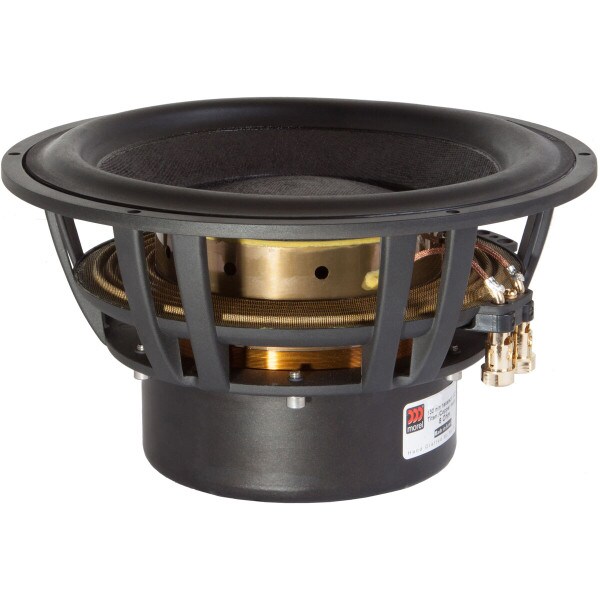

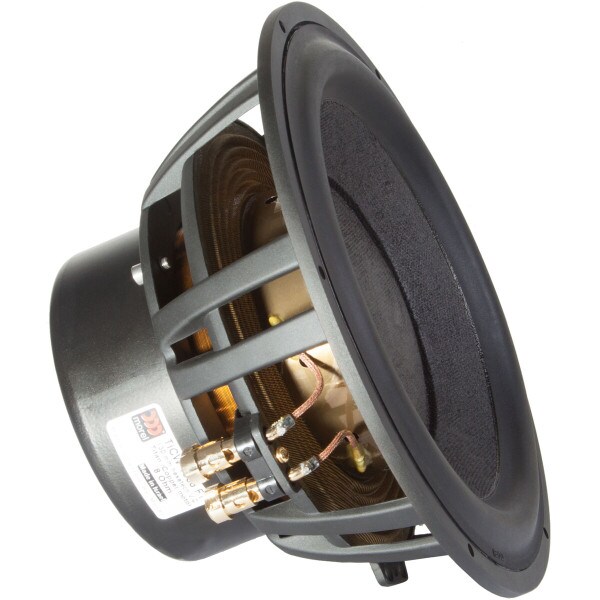

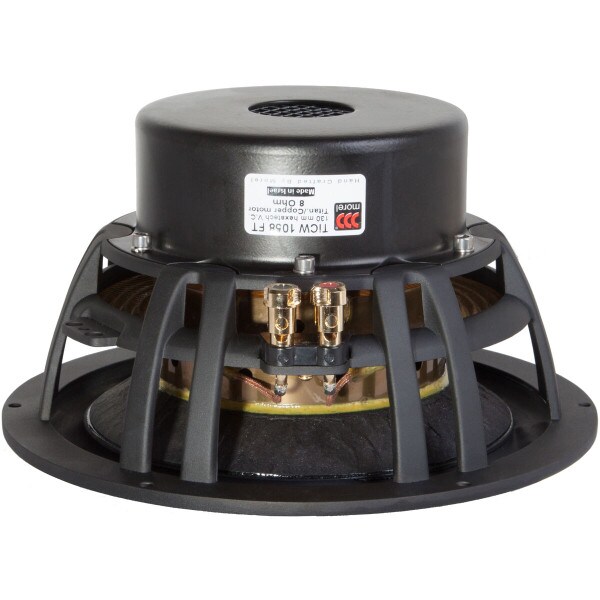

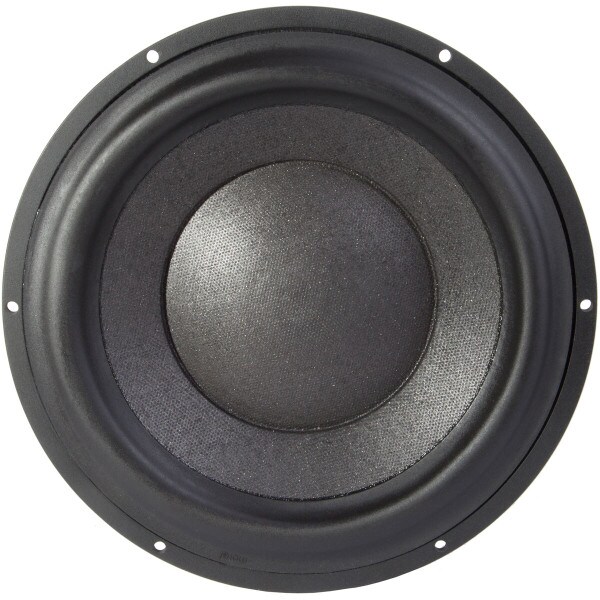

Morel TiCW 1058Ft Titanium Series 10" Subwoofer 8 Ohm

Morel
Part #297-109

Morel TiCW 1058Ft Titanium Series 10" Subwoofer 8 Ohm

Morel
Part #297-109
Model: TiCW 1058Ft
Morel applied their years of experience and creative genius to produce a world-beating sub-bass driver…the Titanium Ultimate 10" subwoofer.
Key Features
  • Copper-sleeved pole piece and titanium former reduce speed-depleting inductance
  • 8 ohm impedance for a high damping factor and more amplifier control
  • 5.1" Hexatech voice coil for 600 watts RMS power handling
  • Accucenter self-centering, one-piece paper cone assembly
Your Price: $683.00
+ FREE SHIPPING
MSRP: $886.99
Save $203.99 (23%)
Bulk Pricing
Ships next business day. Details

Only 3 In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Morel TiCW 1058Ft Titanium Series 10" Subwoofer 8 Ohm

To create their Titanium Ultimate high fidelity 10" subwoofer, Morel began with an extra-large, 5.1" diameter, Hexatech™ aluminum voice coil wound on a vented titanium former. Moving this beast requires huge amounts of magnetic force, so to do so Morel uses a high flux double magnet system.

Speed-robbing energy storage is reduced to an insanely low 0.52 mH through the combination of the titanium former and a copper-sleeved pole piece. Trapped air within the subwoofer is virtually inexistent due to the Uniflow™ cast aluminum chassis, which works with the Accucenter™ self-centering cone assembly to reduce distortion and the effects of power compression.


Product Details

BrandMorel
ModelTiCW 1058Ft
Part Number297-109
UPC848864016290
Unit of MeasureEach
Weight17.55

Product Specifications

Nominal Diameter10"
Power Handling (RMS)600 Watts
Power Handling (MAX)3000 Watts
Impedance8Ω
Frequency Response24 to 2,000Hz
Sensitivity86dB 2.83V/1m
Voice Coil Diameter5.1"

Thiele-Small Parameters

Resonant Frequency (Fs)24Hz
DC Resistance (Re)6.3Ω
Voice Coil Inductance (Le)0.52mH
Mechanical Q (Qms)4.95
Electromagnetic Q (Qes)0.4
Total Q (Qts)0.37
Compliance Equivalent Volume (Vas)3.74ft³
BL Product (BL)15.86T·m
Diaphragm Mass Inc. Airload (Mms)106g
Maximum Linear Excursion (Xmax)10.5mm
Surface Area of Cone (Sd)346cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Voice Coil FormerTitanium
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10.35"
Baffle Cutout Diameter9.49"
Depth5.85"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.25ft³
Sealed F351.4Hz
Vented Volume1.88ft³
Vented F326.5Hz
